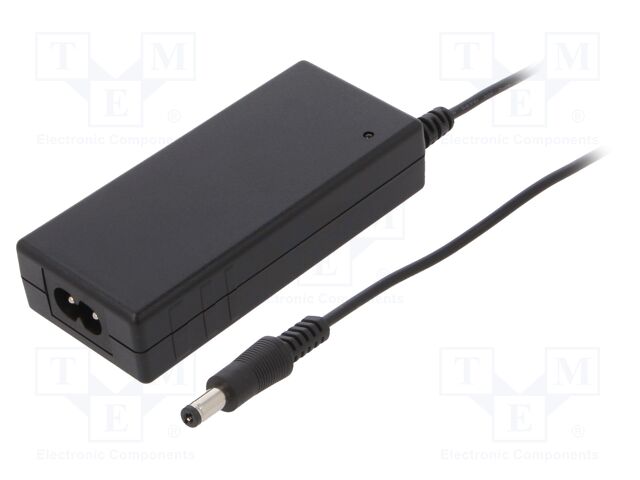

DTM36CN120-C8 - TDK-Lambda
AC-DC Power Supplies, External/Desktop, Output: 36W, 12V, for medical equipment, Class II input
Technical Details
| Approvals | EN, IEC, UL |
| Efficiency | 87.7% |
| Height - Seated (Max) | 23mm |
| Length | 100mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Input Voltage | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 2.5A |
| Max Output Power | 30W |
| Max Output Voltage | 12.24V |
| Min Input Voltage | 80V |
| Min Operating Temperature | -30°C |
| Min Output Voltage | 11.76V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 12V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Width | 45mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
