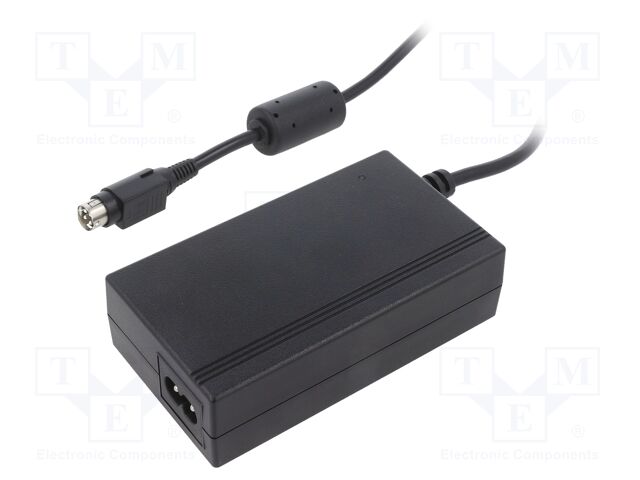

DTM65PW240C8 - TDK-Lambda
Ac-dc Power Supply, Medical Adapter, 115-230VAC, 24V 2.7A, 65W, DTM65-D Series
Technical Details
| Approvals | CSA, EN, IEC, UL |
| Body Material | Plastic |
| Connector Type | Power |
| Cord Length | 1.050036m |
| Current - Output 1 | 2.7A |
| Efficiency | 88% |
| Height | 30.988mm |
| Height - Seated (Max) | 31mm |
| Length | 106mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | CURRENT/AVAILABLE |
| Max Input Voltage | 264V |
| Max Input Voltage (AC) | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 2.7A |
| Max Output Power | 65W |
| Max Output Voltage | 24.24V |
| Max Power Dissipation | 65W |
| Min Input Voltage | 90V |
| Min Input Voltage (AC) | 90V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 23.76V |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 24V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Power | 65W |
| Output Voltage | 24V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 24V |
| Weight | 453.59237g |
| Width | 60mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
