MPZ2012S601A - TDK
Ferrite Beads Multi-Layer Power 600Ohm 25% 100MHz 2A 0.1Ohm DCR 0805 T/R
Technical Details
| Case/Package | 0805 |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| China RoHS | Compliant |
| Core Material | Ferrite |
| Current Rating | 2A |
| DC Current | 2A |
| DC Resistance (DCR) | 100mΩ |
| Depth | 1.25mm |
| Frequency | 100MHz |
| Height | 850µm |
| Impedance | 600Ω |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Max DC Current | 2A |
| Max Frequency | 100MHz |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Circuits | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Resistance | 100mΩ |
| RoHS | Compliant |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

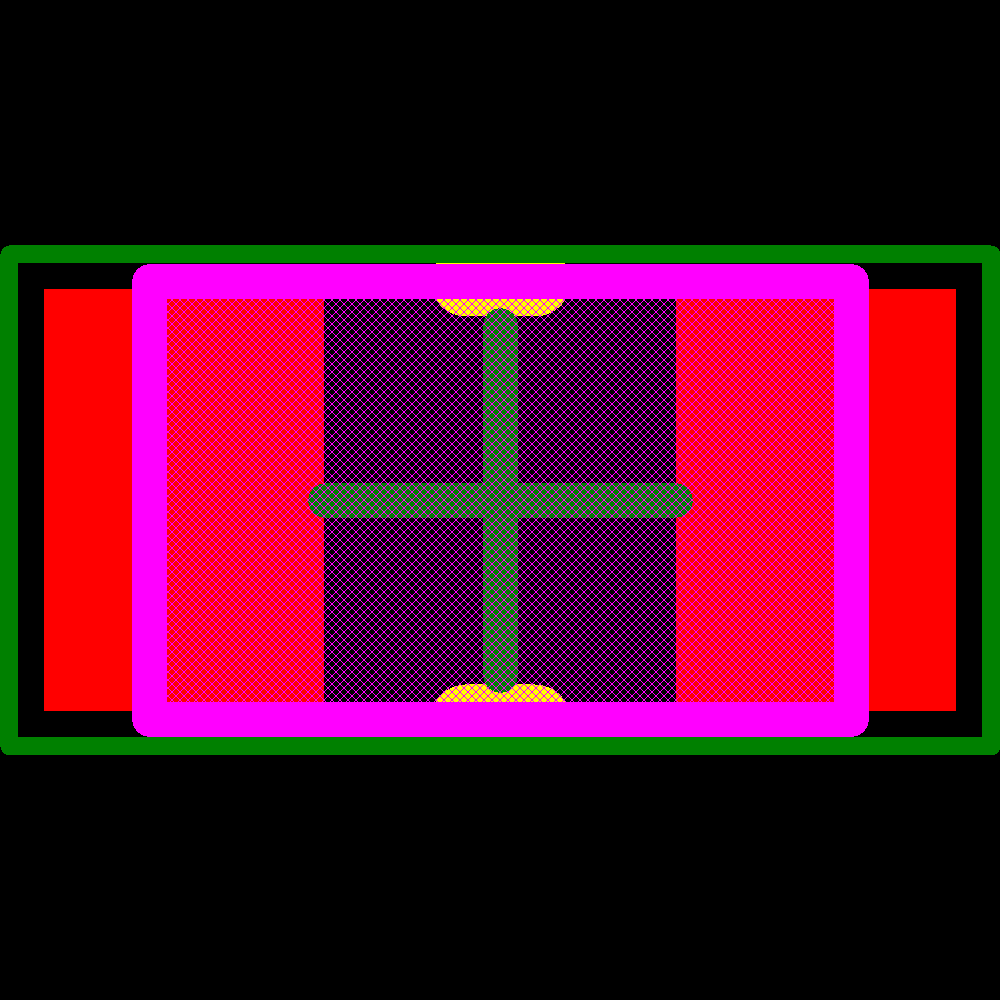

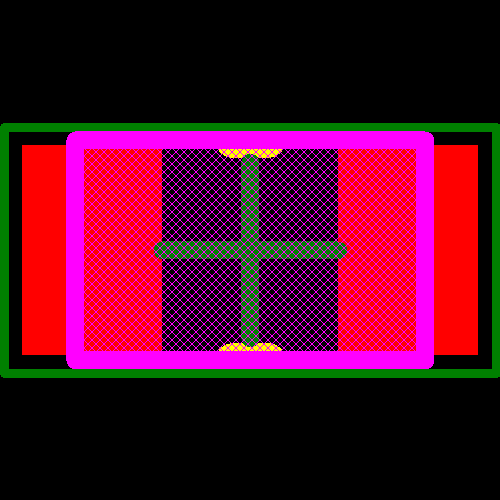

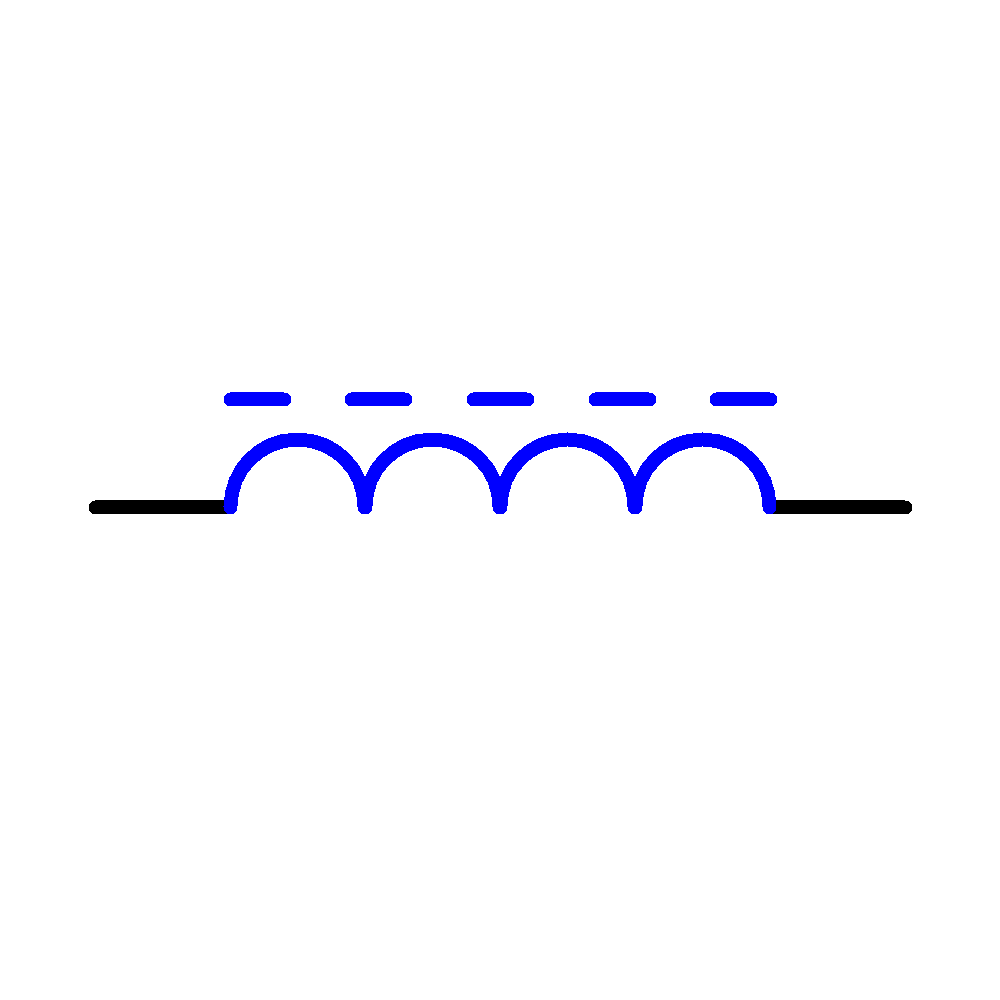

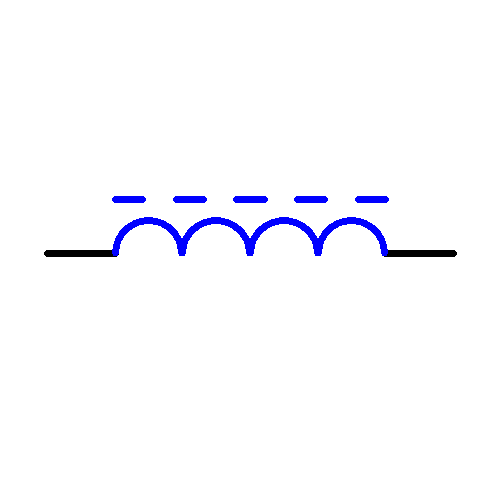

Images
