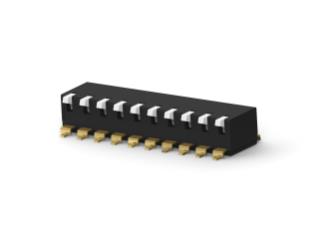

EDSP10SGLNNTR04 - TE Connectivity / Alcoswitch
Switch DIP OFF ON SPST 10 Long Piano 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD T/R
Technical Details
| China RoHS | Compliant |
| Color | White |
| Contact Current Rating | 25mA |
| Contact Plating | Gold |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 5mm |
| Housing Color | Black |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Introduction Date | 2020-08-20 |
| Length | 25.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 25mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Positions | 10 |
| Packaging | Tape & Reel |
| Pitch | 2.54mm |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536509065, 8536509065|8536509065, 8536509065|8536509065|8536509065, 8536509065|8536509065|8536509065|8536509065 |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
