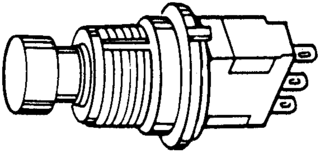

MPG306F - TE Connectivity / Alcoswitch
Push Button Switch ON Mom 3PDT Round Button 6A/4A 125VAC 28VDC Wire Lug Panel Mount Bulk
Technical Details
| Actuator Length | 8.001mm |
| Actuator Material | Resin |
| China RoHS | Compliant |
| Color | Natural |
| Contact Current Rating | 6A |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 4A |
| Depth | 17.81mm |
| Electrical Life | 50kcycles |
| ELV | Compliant |
| Height | 14.1mm |
| Housing Material | Thermoset |
| Illumination Type | Illuminated |
| Insulation Resistance | 1GΩ |
| Lead Free | Contains Lead |
| Length | 17.81mm |
| Life (Cycles) | 30kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 6A |
| Max Operating Temperature | 80°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -20°C |
| Mount | Panel |
| Number of Positions | 2 |
| Operating Force | 11.9952N |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | MOLDED |
| Switch Function | On-Mom |
| Termination | Lug |

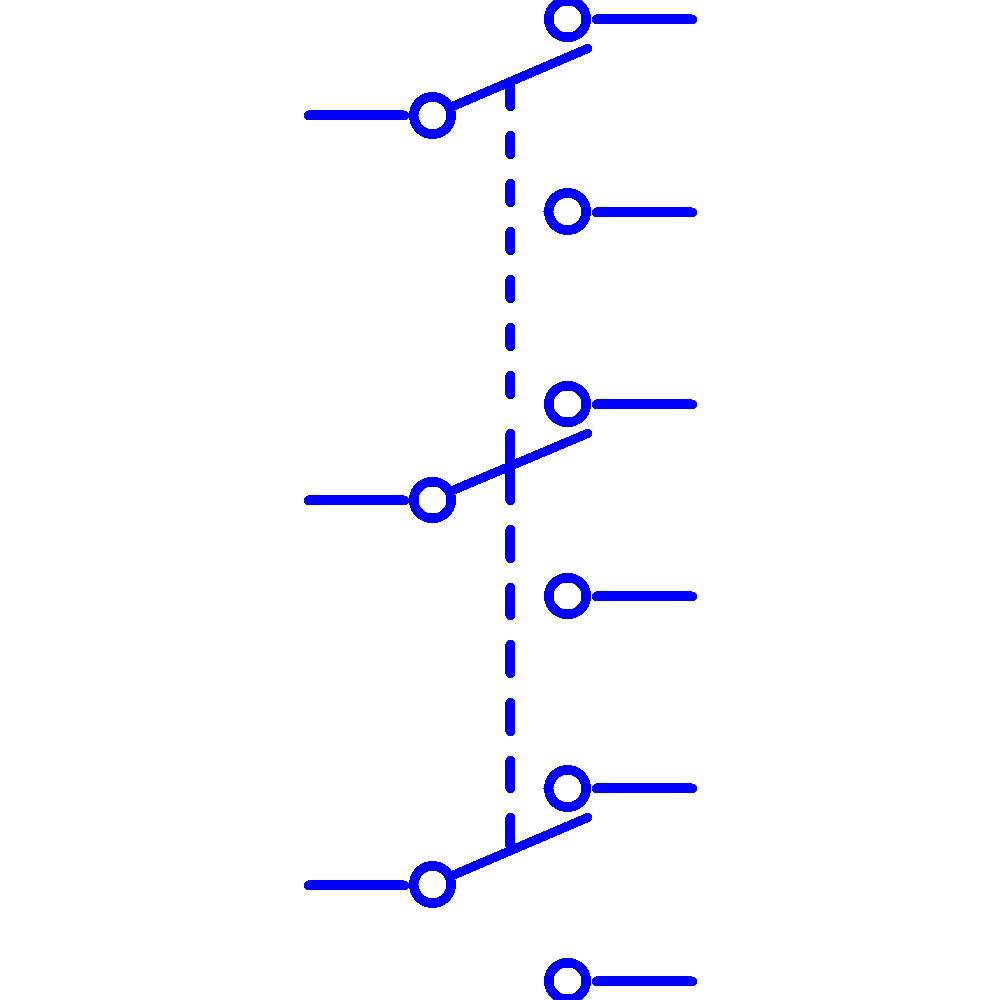

| Throw Configuration | 3PDT |
| Type | Switch |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
