1571626-8 - TE Connectivity / AMP
Pushbutton Switch, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Panel Mount
Technical Details
| Actuator Length | 711.2µm |
| Actuator Material | Nylon |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Black, Red |
| Contact Current Rating | 50mA |
| Contact Material | Stainless Steel |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 8.2mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| ELV | Compliant |
| Height | 2mm |
| Housing Material | Polyethylene |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Illumination Type | Non-Illuminated |
| Introduction Date | 2007-12-04 |
| Length | 6.2mm |
| Life (Cycles) | 1Mcycles |
| Lifecycle Status | Production |
| Material | Polyamide |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -35°C |
| Mount | Surface Mount |
| Operating Force | 1.568N |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

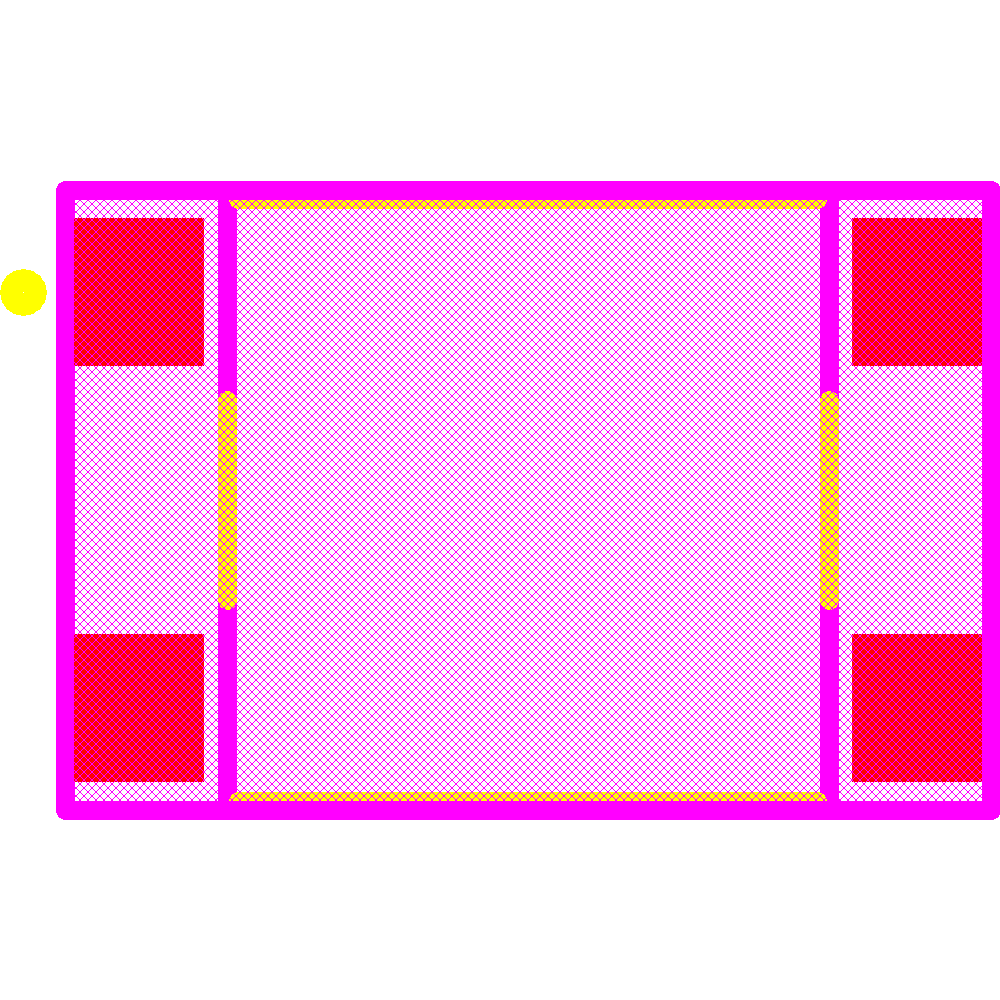

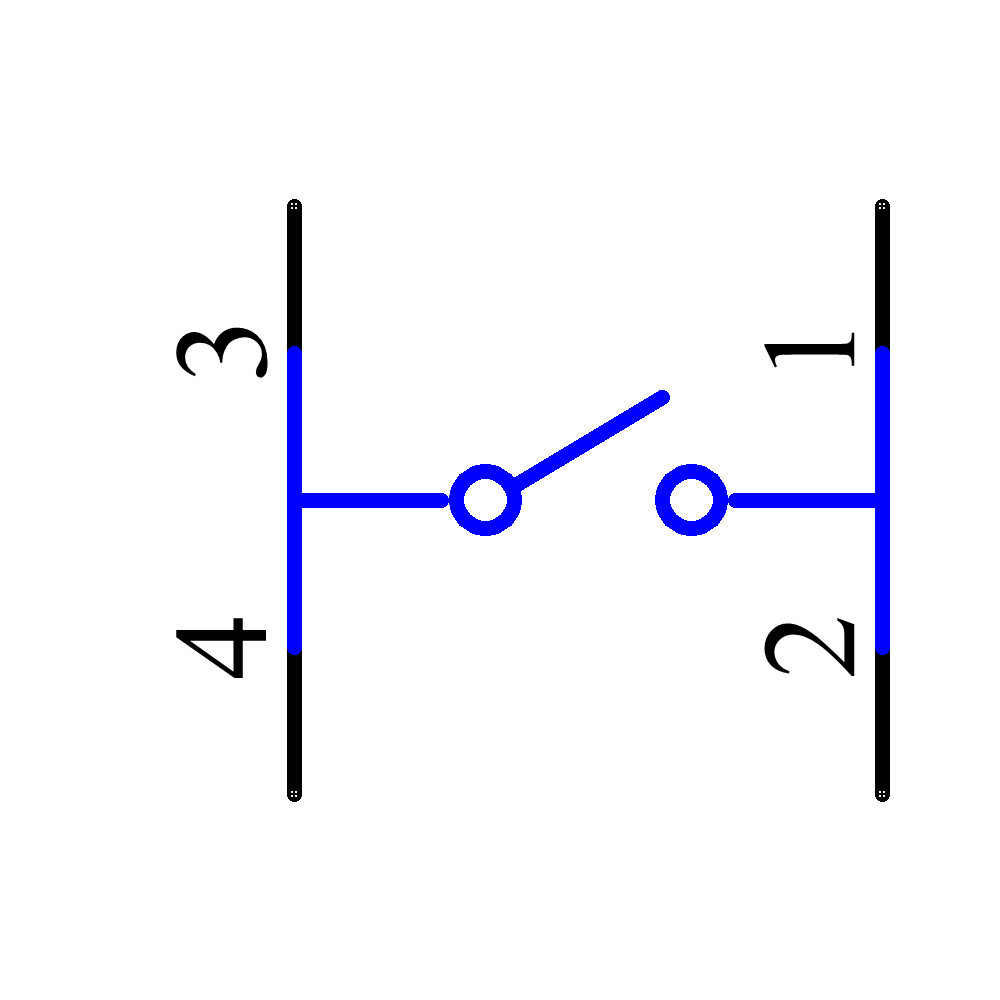

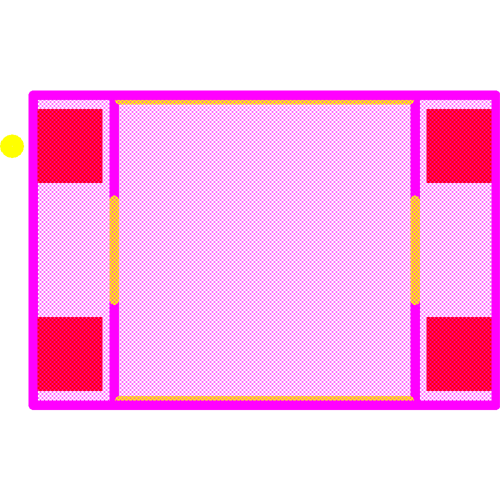

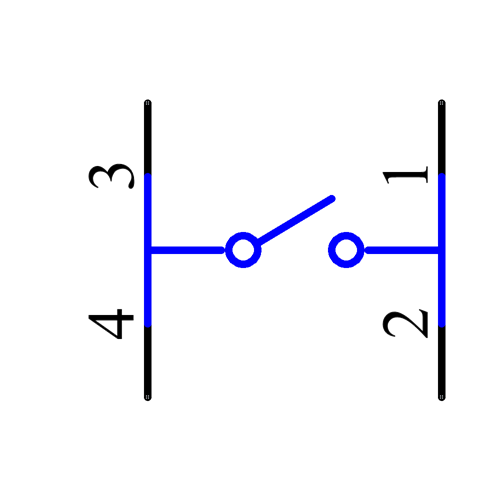

Images
