1825098-2 - TE Connectivity / AMP
Pushbutton Switch, SPST, Off-(on), Momentary, 0.4A, 20VDC, Solder Terminal, Panel Mount
Technical Details
| Actuator Length | 3.4036mm |
| Actuator Material | Polyethylene |
| China RoHS | Non-Compliant |
| Color | Black |
| Contact Current Rating | 400mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Contact Resistance | 20mΩ |
| Current Rating | 400mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Flammability Rating | UL94 V-0 |
| Height | 5.74mm |
| Housing Material | Polyethylene |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Introduction Date | 2014-08-01 |
| Lead Free | Lead Free |
| Length | 8.84mm |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 20mA |
| Max Operating Temperature | 65°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Operating Force | 3.92N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Power Rating | 400mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED |
| Switch Function | Off-Mom |
| Termination | PC Pins, Solder |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (AC) | 20V |
| Voltage Rating (DC) | 20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

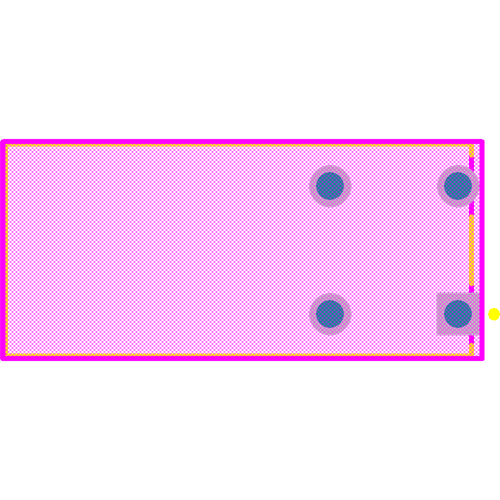

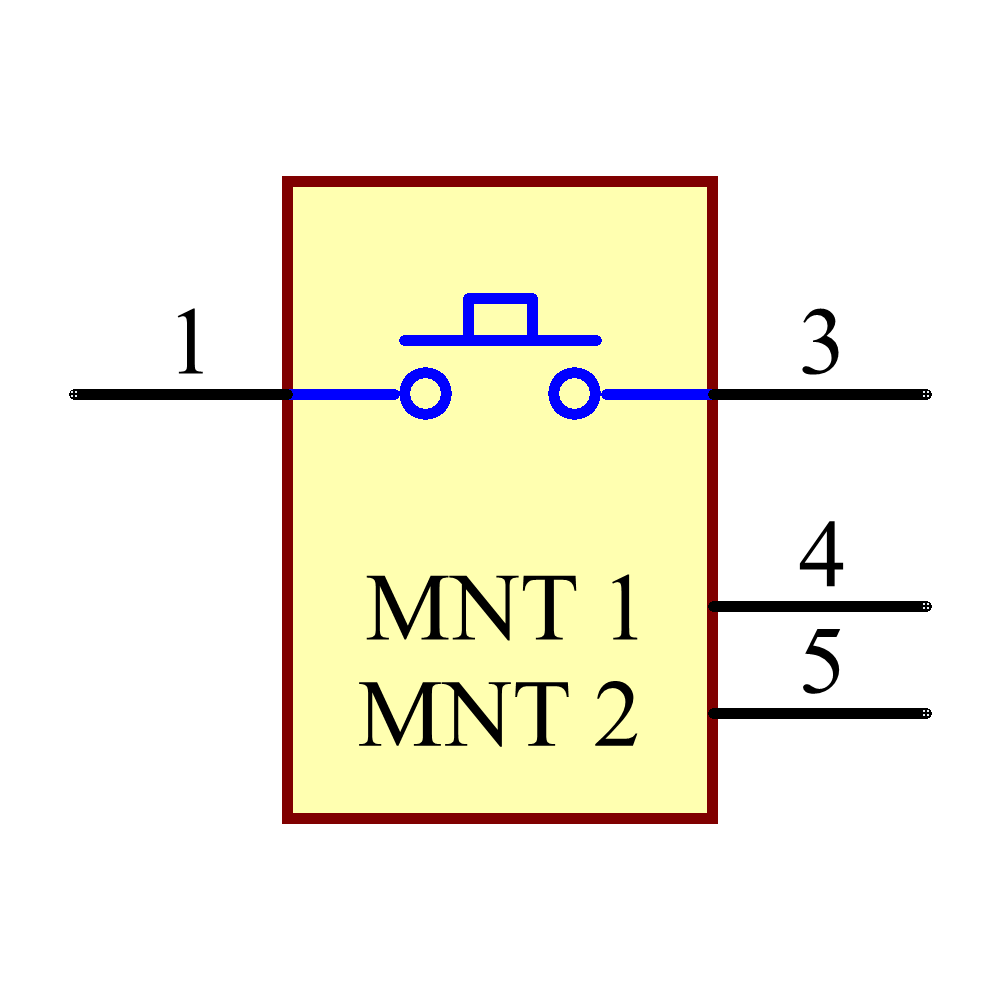

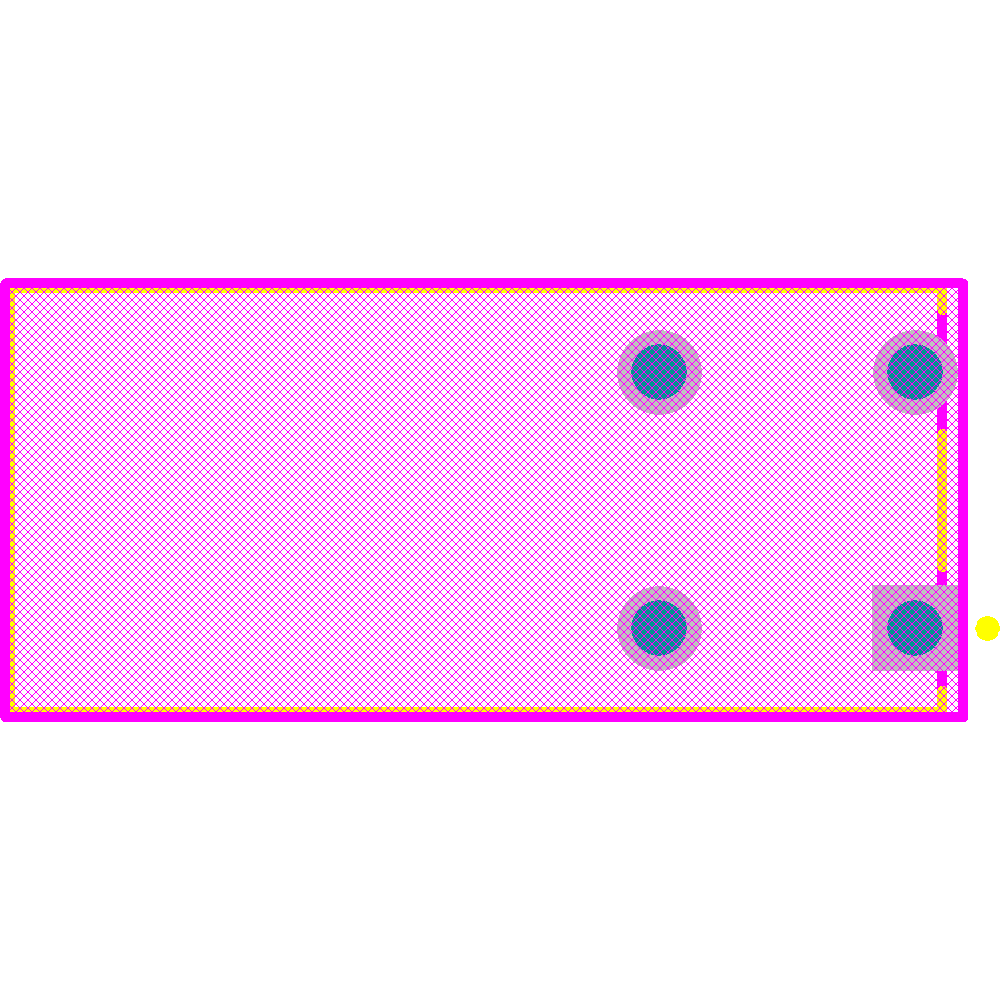

Images
