Connectors > Automotive Connectors

DT06-2S - TE Connectivity / DEUTSCH

Automotive Connector Housing, IP68, DT Series, Plug, 2 Ways, DT Series Socket Contacts

Technical Details

China RoHS	Compliant
Color	Grey
Contact Current Rating	13A
Contact Gender	Female
Current Rating	13A
ELV	Compliant
Flammability Rating	UL94 V-0
Height	15.95mm
Housing Color	Grey
Housing Material	Thermoplastic
Hybrid Connector	No
Insulation Resistance	1GΩ
Lead Free	Lead Free
Length	28.4mm
Lifecycle Status	Production
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Contacts	2
Number of Pins	2
Number of Ports	1
Number of Positions	2
Number of Rows	1
Operating Supply Voltage	250V
Packaging	Box
Pitch	5.5mm
Polarized	Yes
REACH SVHC	No
RoHS	Compliant
Serviceable	Yes
Shielding	Unshielded
Terminal Pitch	5.46mm
Voltage Rating	250V
Width	15.0114mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

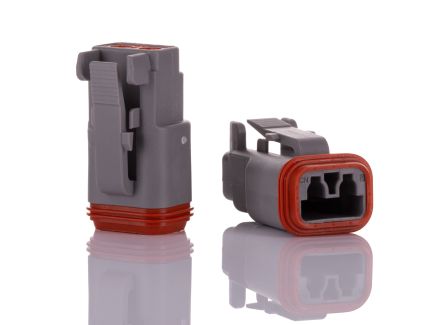

TE Connectivity / DEUTSCH DT06-2S | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

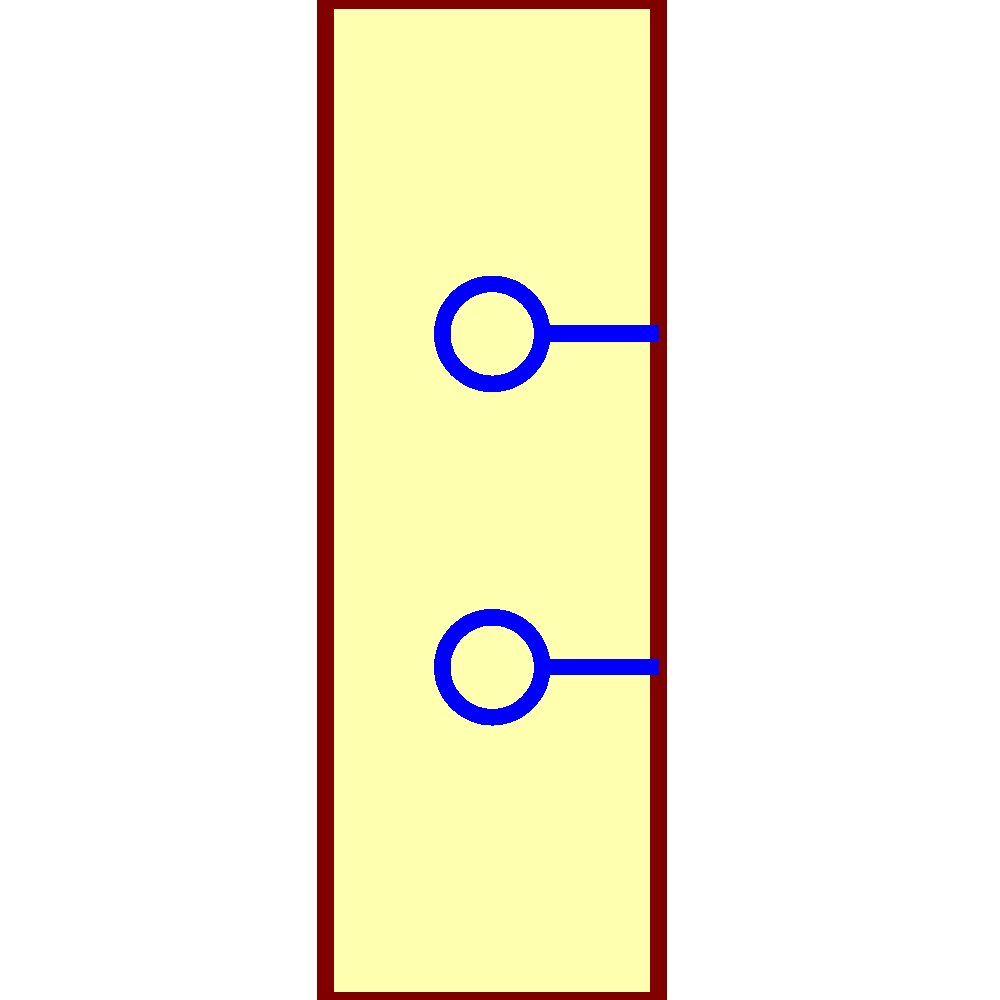

DT06-2S Symbol - TE Connectivity / DEUTSCH

DT06-2S Symbol - TE Connectivity / DEUTSCH

DT06-2S Symbol - TE Connectivity / DEUTSCH

DT06-2S Symbol - TE Connectivity / DEUTSCH

‹ ›

Footprint

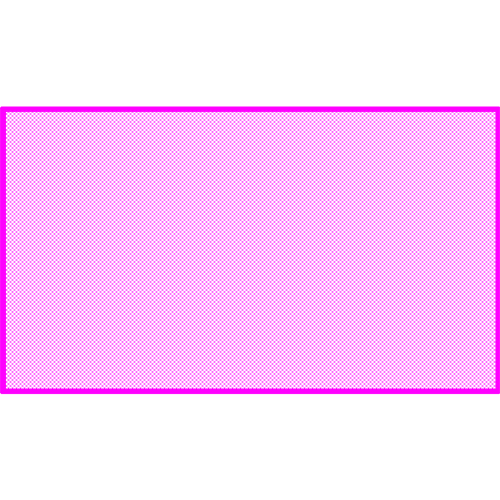

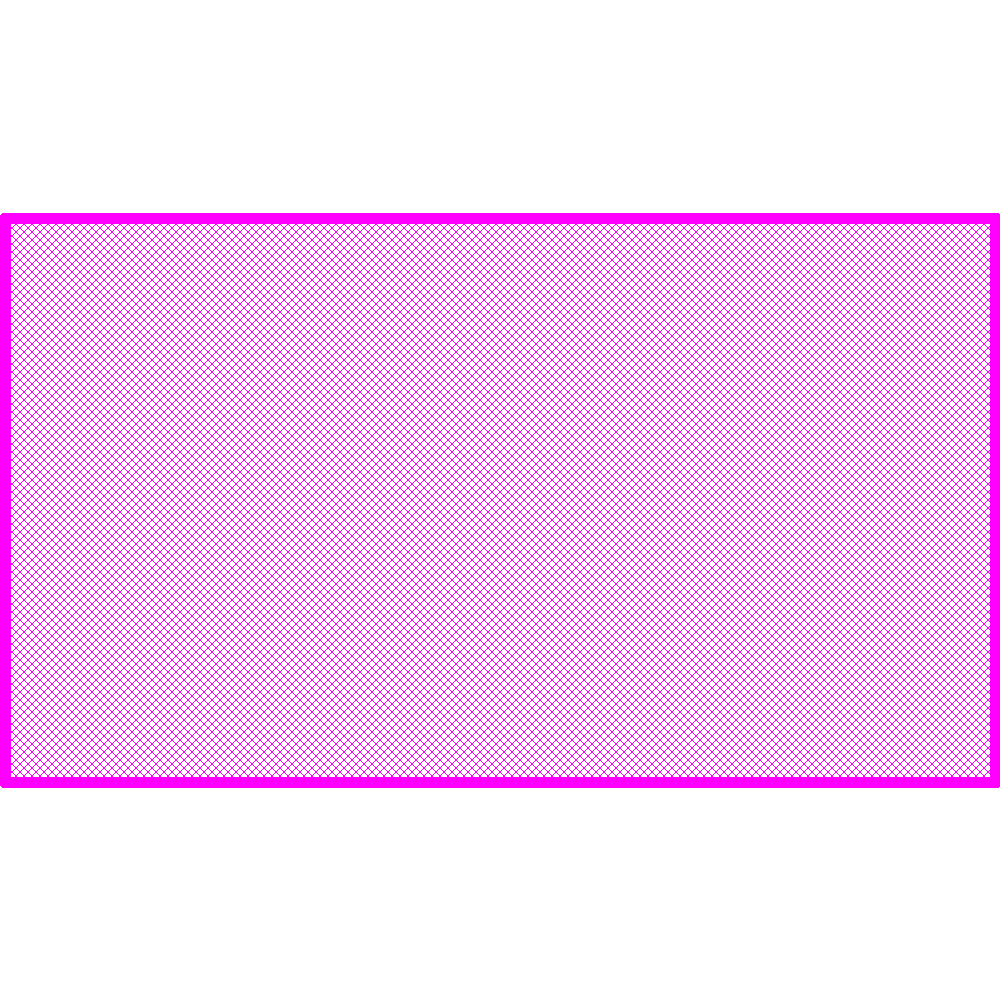

DT06-2S Footprint - TE Connectivity / DEUTSCH

DT06-2S Footprint - TE Connectivity / DEUTSCH

DT06-2S Footprint - TE Connectivity / DEUTSCH

DT06-2S Footprint - TE Connectivity / DEUTSCH

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Amphenol Sine Systems	AT06-2S	Production
Amphenol Sine Systems	AT06-2S-YEL	Production
Amphenol Sine Systems	AT06-2S-BRN	Production
Amphenol Sine Systems	AT06-2S-RED	Production
Amphenol Sine Systems	AT06-2S-BLK	Production
Amphenol Sine Systems	AT06-2S-WHT	Production
Amphenol Sine Systems	AT06-2S-BLU	Production
Amphenol Sine Systems	AT06-2S-GRN	Production
TE Connectivity / DEUTSCH	DTM06-2S	Production
