1-1418480-1 - TE Connectivity

Automotive Connector Housing, Heavy Duty Sealed Connector Series, Receptacle, 7 Ways

Technical Details

Body Material	PBT
China RoHS	Compliant
Circuit Application	Signal
Color	Black
Connector Type	Socket
Contact Current Rating	40A
Contact Gender	Female
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	31.242mm
Housing Color	Black
Housing Material	Polybutylene
Harmonized Tariff Schedule (HTS) Code	8536.69.40.30
Hybrid Connector	No
Introduction Date	2014-01-20
Length	43.9928mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Mating Tab Width	2.794mm
Max Operating Temperature	140°C
Min Operating Temperature	-40°C
Mount	Cable
Number of Contacts	7
Number of Pins	7
Number of Ports	1
Number of Positions	7
Number of Rows	2
Orientation	Straight
Pitch	3.9878mm
Polarized	Yes
Radiation Hardening	No
Ratings	IP67
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	7.6mm
Serviceable	Yes
Shielding	Unshielded
Terminal Pitch	4mm
Termination	Crimp
Voltage Rating	60V
Width	25.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 1-1418480-1 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

Symbol

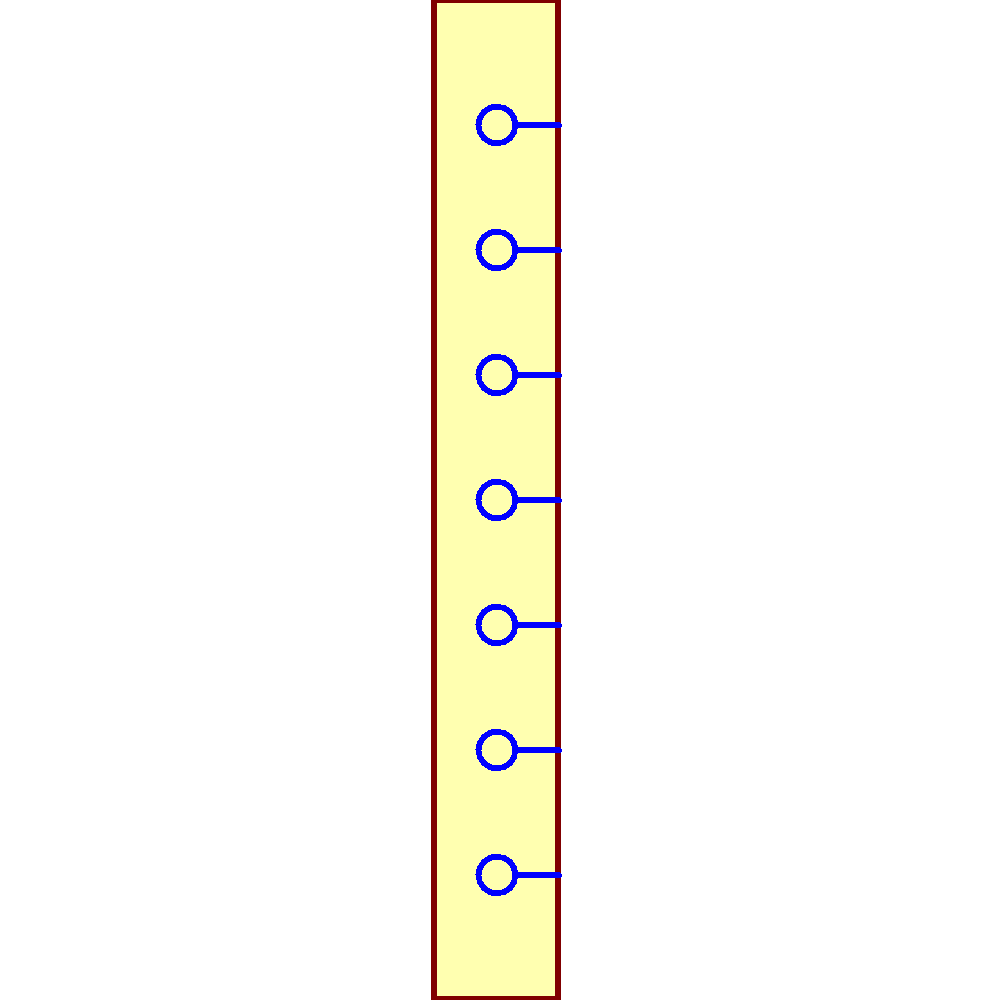

1-1418480-1 Symbol - TE Connectivity
