Connectors > Automotive Connectors

1-1703808-1 - TE Connectivity

Automotive Connector Housing, MCP, Plug, 4 Ways, AMP MCP Series Tab Power Contacts

Technical Details

Body Material	PBT
China RoHS	Compliant
Circuit Application	Signal
Color	Black
Connector Type	Plug
Contact Current Rating	40A
Contact Gender	Male
Contact Material	Copper
Current Rating	40A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	39.8018mm
Housing Color	Black
Housing Material	PBT
Hybrid Connector	No
Length	37.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Mating Tab Width	2.794mm
Max Operating Temperature	140°C
Min Operating Temperature	-40°C
Mount	Cable
Number of Contacts	4
Number of Pins	4
Number of Ports	1
Number of Positions	4
Number of Rows	2
Orientation	Straight
Packaging	Carton
Pitch	6mm
Polarized	Yes
Ratings	IP67
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	6.4516mm
Serviceable	Yes
Shielding	Unshielded
Terminal Pitch	6mm
Termination	Crimp
Voltage Rating	60V
Width	48.09998mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

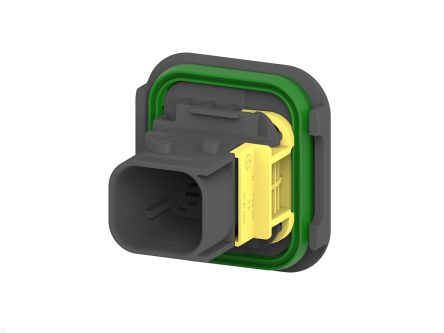

TE Connectivity 1-1703808-1 | RS
