1-1718645-1 - TE Connectivity

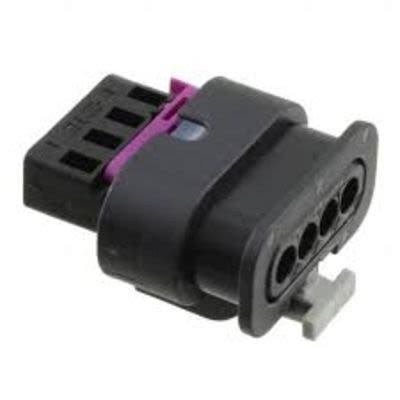

Automotive Connector Housing, MCON, Receptacle, 4 Ways, AMP MCON Series Socket Contacts
Technical Details
| China RoHS | Compliant |
| Circuit Application | Signal |
| Color | Black |
| Connector Type | Receptacle, Socket |
| Contact Current Rating | 25A |
| Contact Gender | Female |
| Country of Origin | Morocco |
| Current Rating | 25A |
| Depth | 28.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ELV | Compliant |
| Fastening Type | Latch |
| Gender | Receptacle |
| Height | 16.5mm |
| Housing Color | Black |
| Housing Material | Polyamide |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.30 |
| Hybrid Connector | No |
| Insulation Material | Polyamide |
| Introduction Date | 2012-04-03 |
| Lead Free | Lead Free |
| Length | 24.6888mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Material | Polyamide |
| Mating Tab Width | 1.1938mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Cable, Free Hanging |
| Number of Contacts | 4 |
| Number of Pins | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Box |
| Pitch | 3.9878mm |
| Polarized | Yes |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Serviceable | Yes |
| Shielding | Unshielded |
| Terminal Pitch | 4mm |
| Termination | Crimp |
| Voltage Rating | 12V |
| Width | 26.4922mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
