Electromechanical > Switches > Pushbutton Switches

1-1825910-5 - TE Connectivity

Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 2.548N, Solder Terminal, Panel Mount

Technical Details

Actuator Length	5.8928mm
Actuator Material	PBT, Polybutylene
China RoHS	Compliant
Color	Black, Red
Contact Current Rating	50mA
Contact Material	Brass
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	100kcycles
Height	3.61mm
Housing Material	Nylon
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Non-Illuminated
Introduction Date	2008-01-30
Length	5.99mm
Life (Cycles)	100kcycles
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	50mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	24V
Mechanical Life	100kcycles
Min Operating Temperature	-35°C
Mount	Through Hole
Number of Positions	1
Operating Force	2.548N
Orientation	Straight
Packaging	Bulk
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8536509065, 8536509065\|8536509065\|8536509065\|8536509065\|8536509065
Switch Function	Off-Mom
Switch Travel	250µm
Termination	PC Pin, PC Pins
Throw Configuration	SPST
Type	Switch
Voltage Rating (DC)	24V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 1-1825910-5 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

1-1825910-5 Symbol - TE Connectivity

1-1825910-5 Symbol - TE Connectivity

1-1825910-5 Symbol - TE Connectivity

1-1825910-5 Symbol - TE Connectivity

‹ ›

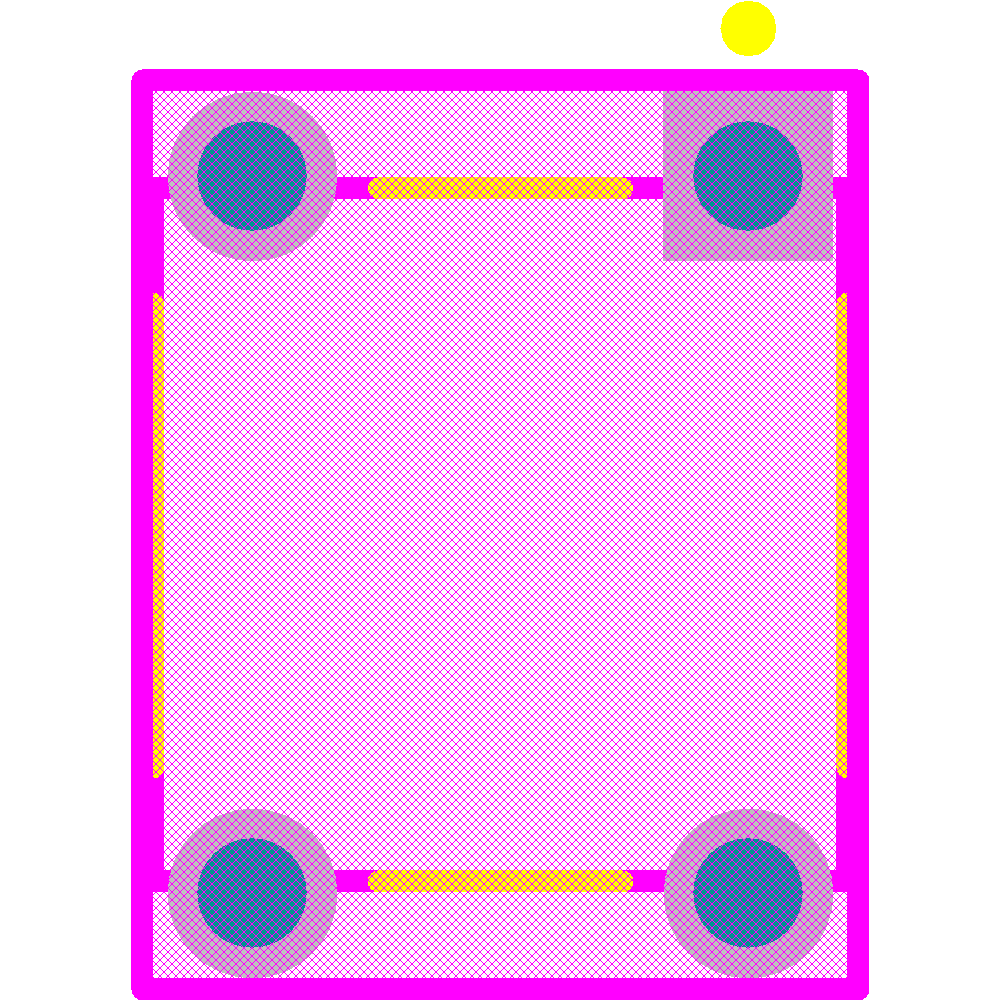

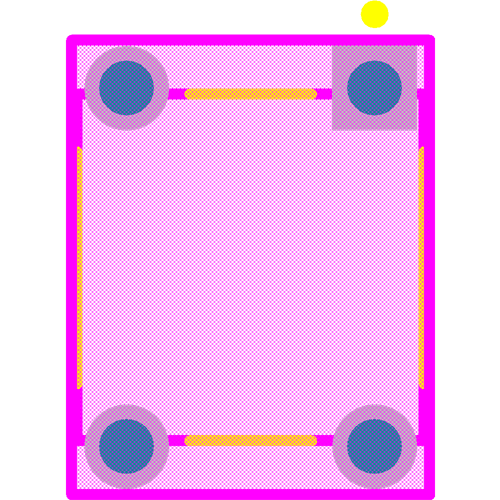

Footprint

1-1825910-5 Footprint - TE Connectivity

1-1825910-5 Footprint - TE Connectivity

1-1825910-5 Footprint - TE Connectivity

1-1825910-5 Footprint - TE Connectivity

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
APEM	5ESH920R	Production
TE Connectivity	3-1825910-7	Obsolete
TE Connectivity	3-1825910-2	Production
TE Connectivity	1825910-3	Production
TE Connectivity	2-1825910-4	Obsolete
TE Connectivity	2-1825910-3	Obsolete
TE Connectivity	FSM4JLH	Unknown
TE Connectivity	1-1825955-3	Obsolete
TE Connectivity	1825955-8	Obsolete
TE Connectivity	1-1825955-6	Obsolete
