Connectors > Automotive Connectors

1-967627-1 - TE Connectivity

Conn Housing PL 12 POS 5mm Crimp ST Panel Mount Automotive Bag

Technical Details

China RoHS	Compliant
Circuit Application	Signal
Color	Green
Connector Type	Plug, Tab
Contact Gender	Male
Contact Material	Copper, Tin
Contact Plating	Tin
Depth	35.5mm
Export Control Classification Number (ECCN) Code	EAR99
ELV	Compliant
Gender	Male
Height	30.607mm
Housing Color	Green
Housing Material	Polyamide
Harmonized Tariff Schedule (HTS) Code	8536.69.40.30
Hybrid Connector	No
Introduction Date	2001-11-01
Lead Free	Not Applicable
Lead Pitch	5mm
Length	27.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Material	Polyamide
Mating Tab Width	2.794mm
Max Operating Temperature	120°C
Min Operating Temperature	-40°C
Mount	Free Hanging, Panel
Number of Contacts	12
Number of Pins	12
Number of Ports	1
Number of Positions	12
Number of Rows	3
Orientation	Straight
Packaging	Bulk
Pitch	5mm
Polarized	Yes
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	5.5118mm
Serviceable	No
Shielding	Unshielded
Terminal Pitch	5mm
Termination	Crimp
Voltage Rating	28V
Width	35.45mm
Wire/Cable Gauge	13AWG

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

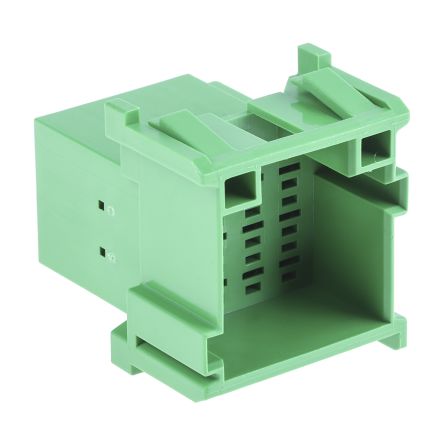

TE Connectivity 1-967627-1 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

1-967627-1 Symbol - TE Connectivity

1-967627-1 Symbol - TE Connectivity

1-967627-1 Symbol - TE Connectivity

1-967627-1 Symbol - TE Connectivity

‹ ›

Footprint

1-967627-1 Footprint - TE Connectivity

1-967627-1 Footprint - TE Connectivity

1-967627-1 Footprint - TE Connectivity

1-967627-1 Footprint - TE Connectivity

‹ ›
