1437566-3 - TE Connectivity
Switch Tactile OFF (ON) SPST Rectangular Button Gull Wing 0.05A 12VDC SMD Loose Piece
Technical Details
| Actuator Length | 1.0668mm |
| Actuator Material | Polyamide |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Black, Brown |
| Contact Current Rating | 50mA |
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Country of Origin | Mainland China |
| Current Rating | 50mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 20kcycles |
| ELV | Compliant |
| Height | 3.5mm |
| Housing Material | Polyester |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Introduction Date | 2004-09-01 |
| Lead Free | Lead Free |
| Length | 6mm |
| Life (Cycles) | 20kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 20kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 1.764N |
| Orientation | Straight |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

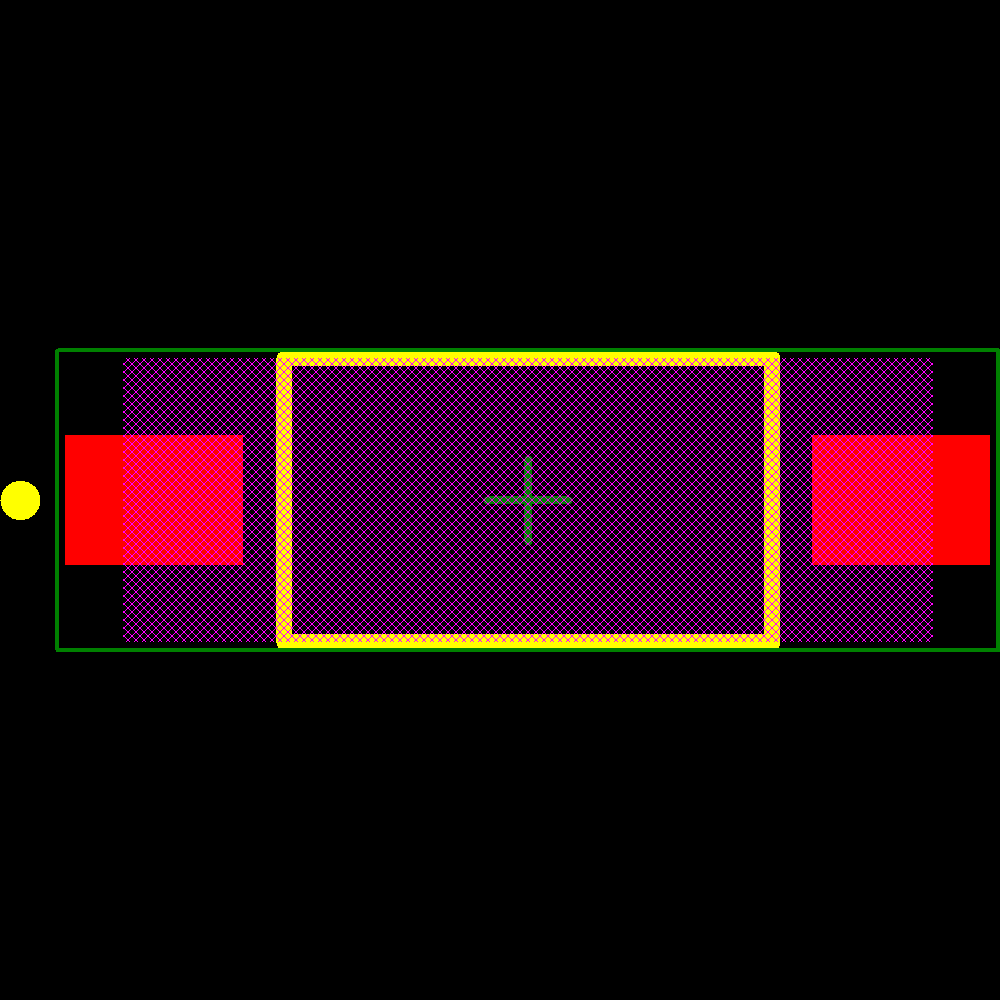

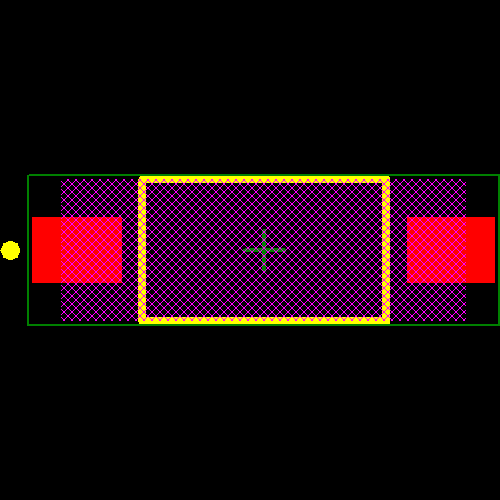

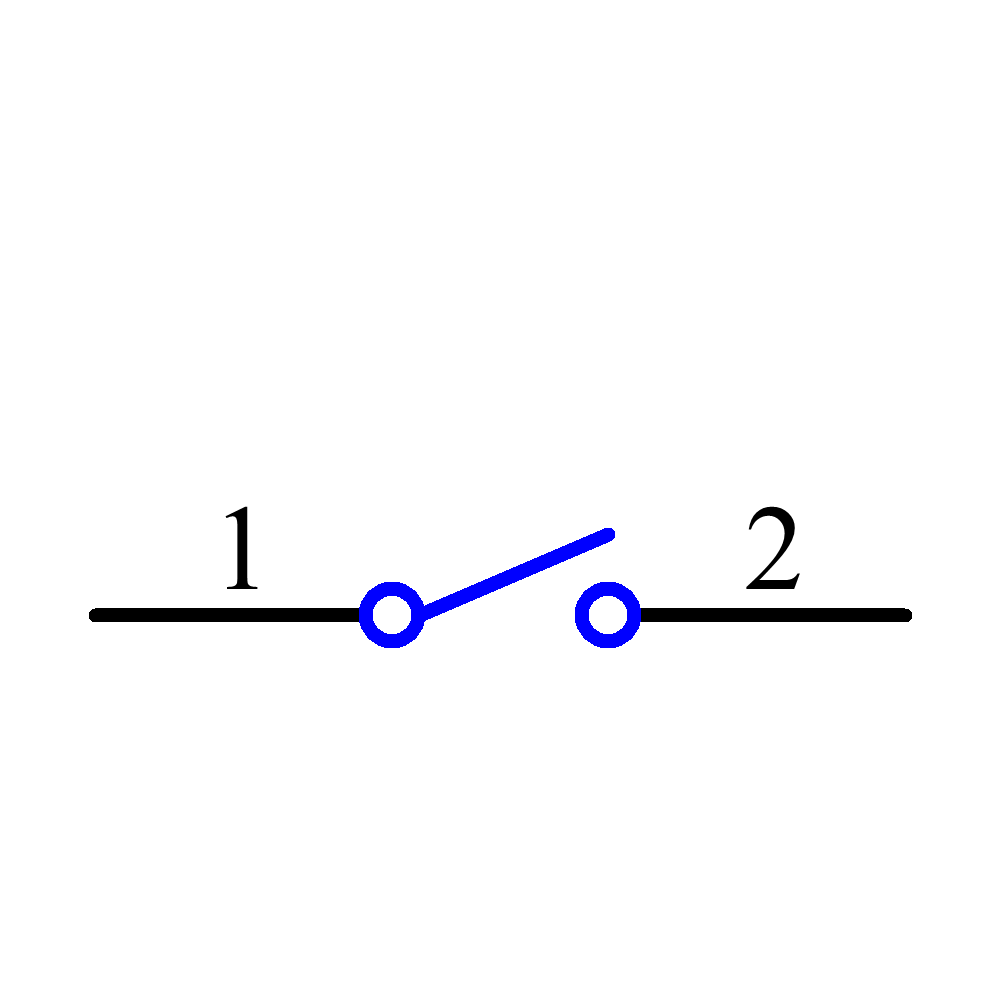

Images
