Electromechanical  >  Switches  >  Pushbutton Switches

TE Connectivity - 1437566-4

1437566-4 - TE Connectivity

Switch Tactile OFF (ON) SPST Rectangular Button Gull Wing 0.05A 24VDC 1.77N SMD T/R

 Datasheets

Technical Details

Actuator Length 1.0668mm
Actuator Material Polyamide
Case/Package SMD/SMT
China RoHS Compliant
Color Black, Brown
Contact Current Rating 50mA
Contact Material Brass
Contact Plating Silver
Contact Resistance 100mΩ
Current Rating 50mA
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 20kcycles
ELV Compliant
Height 3.5mm
Housing Material Polyester
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Illuminated, Non-Illuminated
Introduction Date 2004-09-01
Lead Free Lead Free
Length 6mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Current Rating 50mA
Max Operating Temperature 85°C
Max Voltage Rating (DC) 24V
Mechanical Life 20kcycles
Min Operating Temperature -40°C
Mount Surface Mount
Number of Positions 1
Operating Force 1.764N
Orientation Straight
Packaging Tape & Reel
REACH SVHC Yes
RoHS Compliant
Switch Function Off-Mom
Switch Travel 250µm
Termination Gull Wing
Throw Configuration SPST
Type Switch
Voltage Rating (DC) 24V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

TE Connectivity 1437566-4 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

 Master Electronics
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

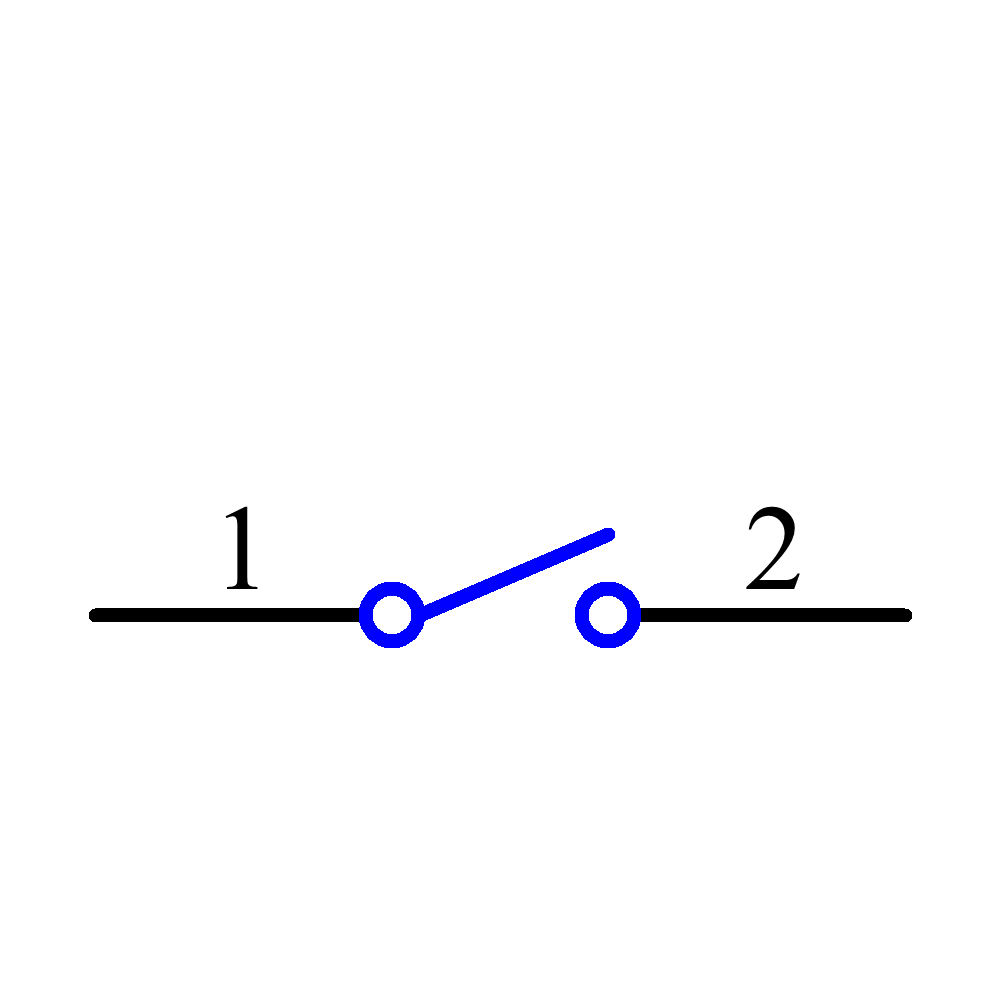

Symbol

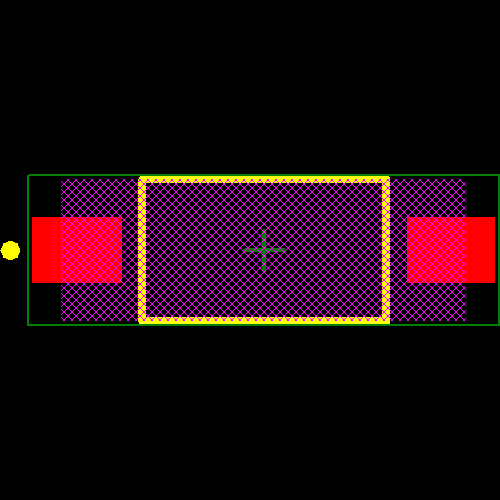

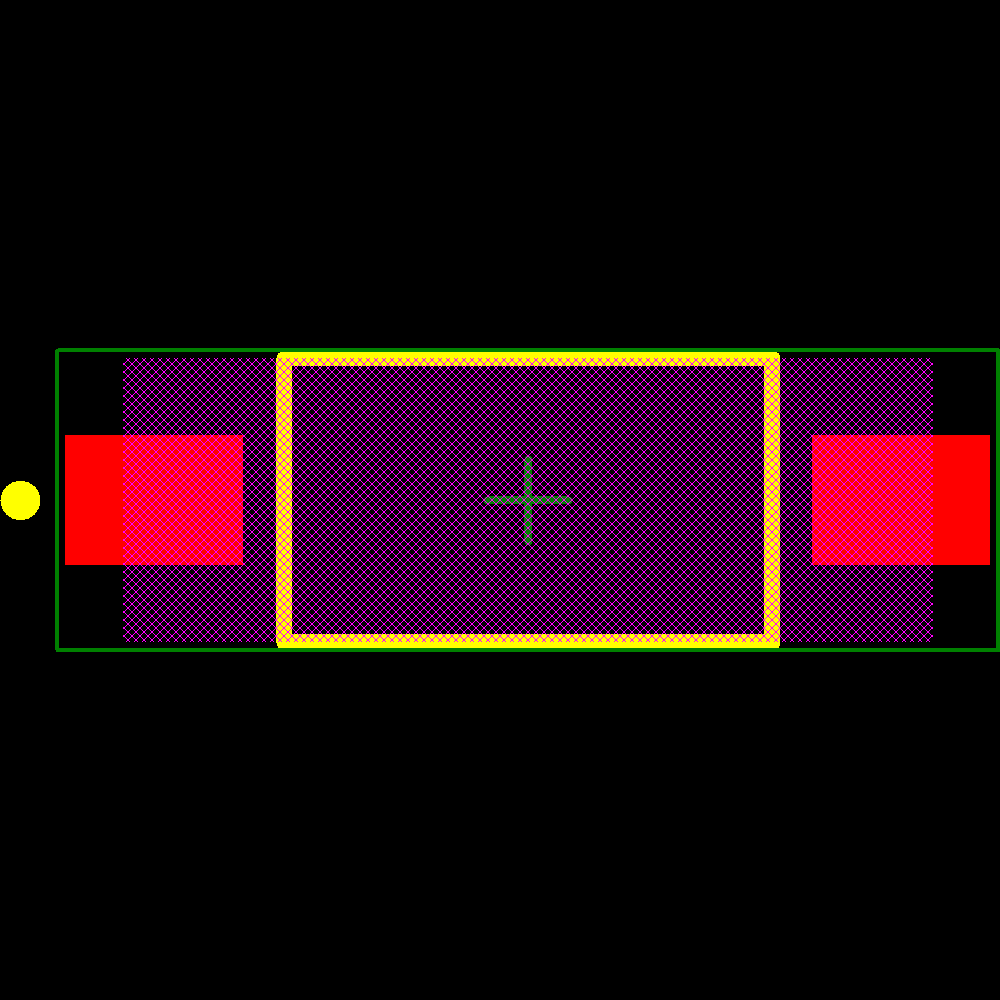

Footprint
