1571262-1 - TE Connectivity
Pushbutton Switch, SPST, Momentary, 0.05A, 12VDC, Solder Terminal, Surface Mount-right Angle
Technical Details
| Actuator Length | 1.397mm |
| Actuator Material | Liquid Crystal Polymer |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Black, White |
| Contact Current Rating | 50mA |
| Contact Material | Stainless Steel |
| Contact Plating | Silver |
| Contact Resistance | 500mΩ |
| Current Rating | 50mA |
| Depth | 6.8mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| ELV | Compliant |
| Height | 1.7mm |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.31 |
| Illumination Type | Illuminated, Non-Illuminated |
| Introduction Date | 2004-09-30 |
| Lead Free | Lead Free |
| Length | 5.6mm |
| Life (Cycles) | 50kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Material | Nylon |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 1.568N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 12V |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

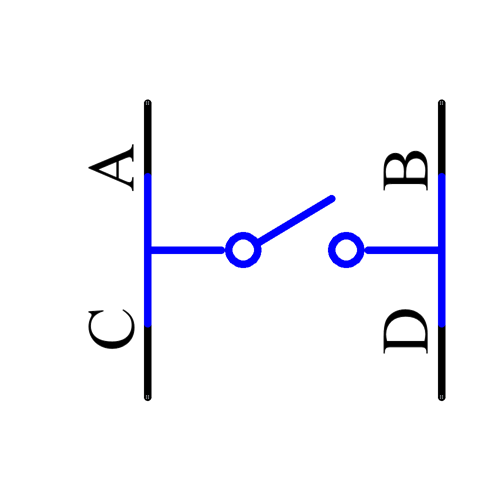

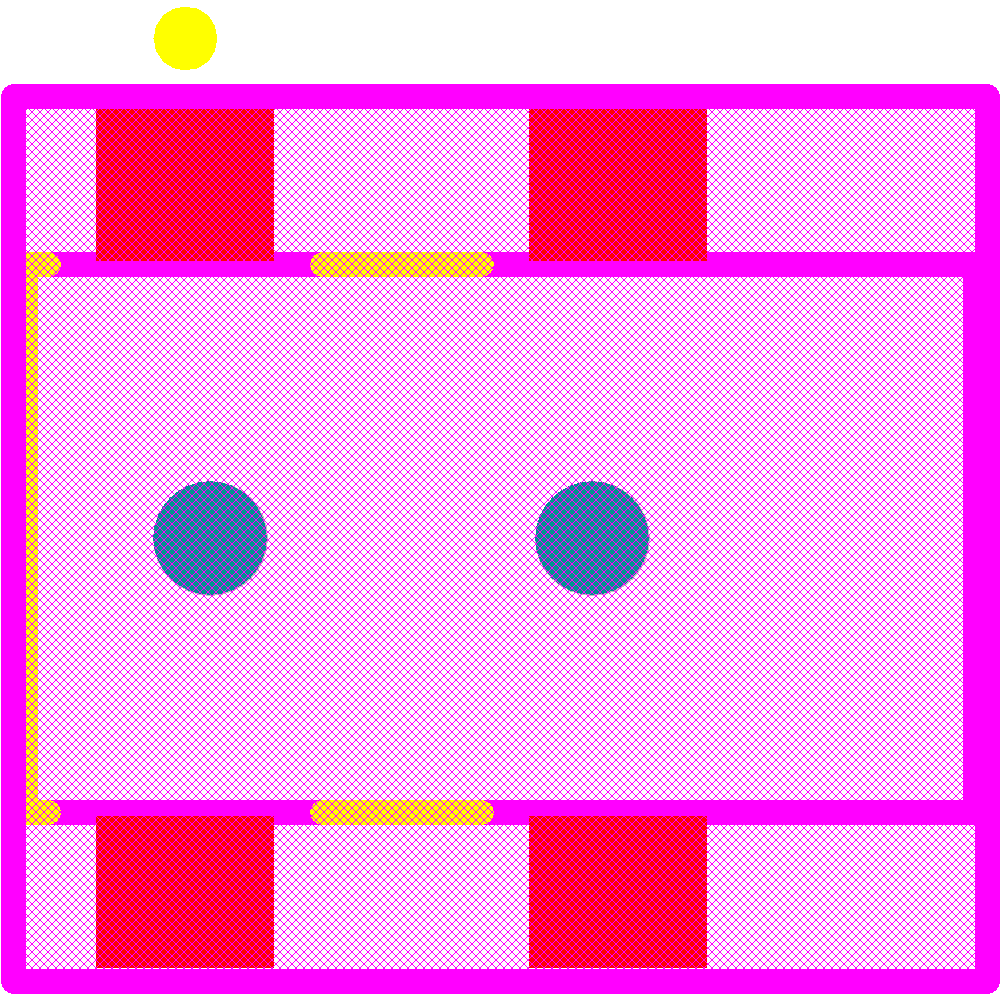

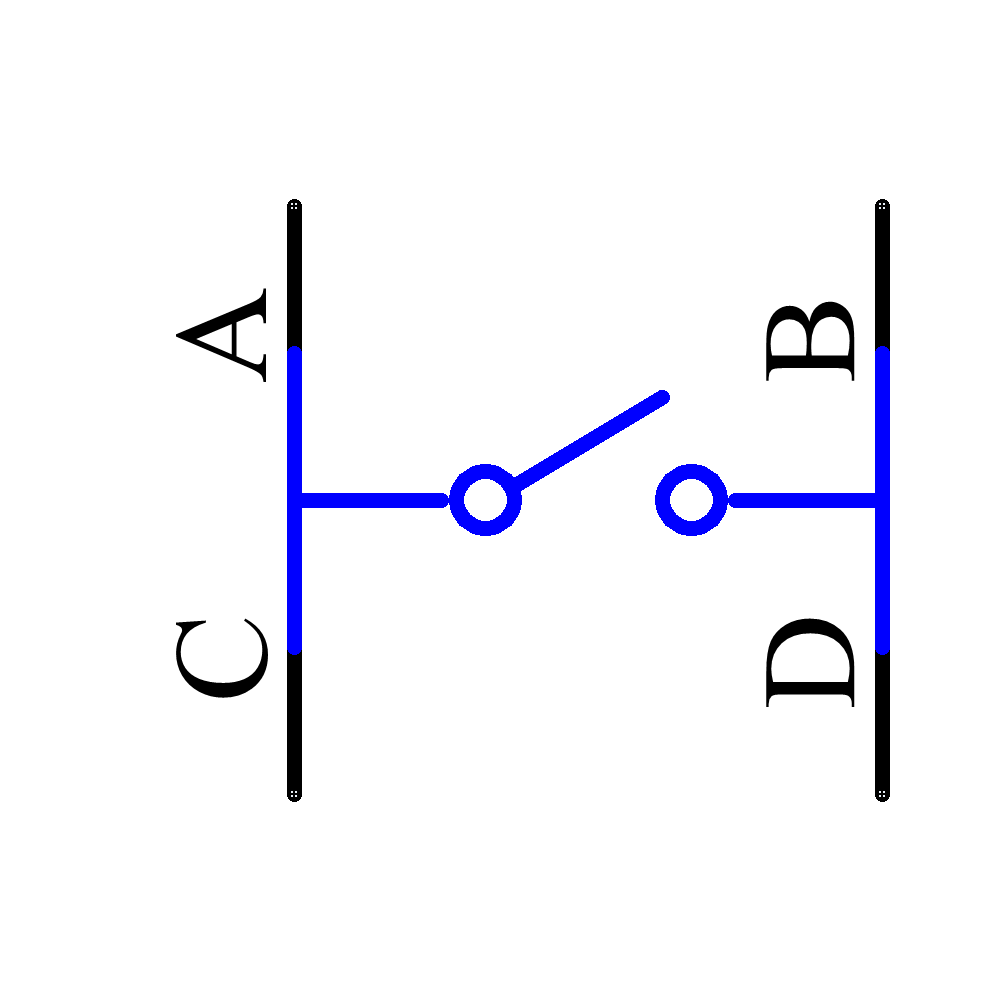

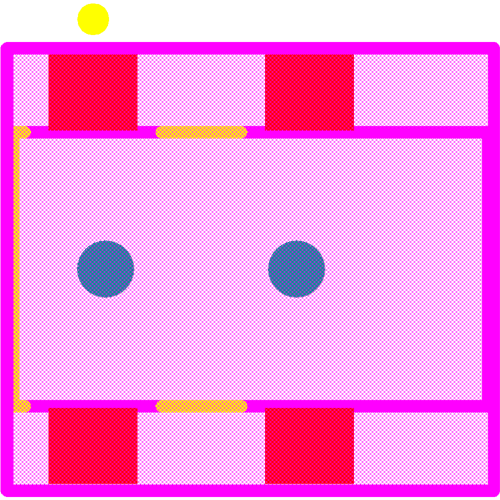

Images
