1825282-1 - TE Connectivity
Slide Switch, 2 Positions, SPDT, On-on, Latched, 0.1A, 12VDC, Solder Terminal, Panel Mount
Technical Details
| Actuator Length | 2.4892mm |
| Actuator Material | Nylon |
| China RoHS | Compliant |
| Color | Black |
| Contact Current Rating | 100mA |
| Contact Plating | Silver |
| Contact Resistance | 30mΩ |
| Contact Style | Shorting |
| Current Rating | 100mA |
| Depth | 6.8mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 5mm |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.50 |
| Introduction Date | 2007-10-17 |
| Length | 10.2mm |
| Life (Cycles) | 10kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 10kcycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 4.41N |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | EPOXY TERMINAL SEALED |
| Switch Function | On-On |
| Switch Travel | 2mm |
| Tail Length | 2.9972mm |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Type | Switch |
| Voltage Rating (DC) | 12V |
| Width | 4.2926mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

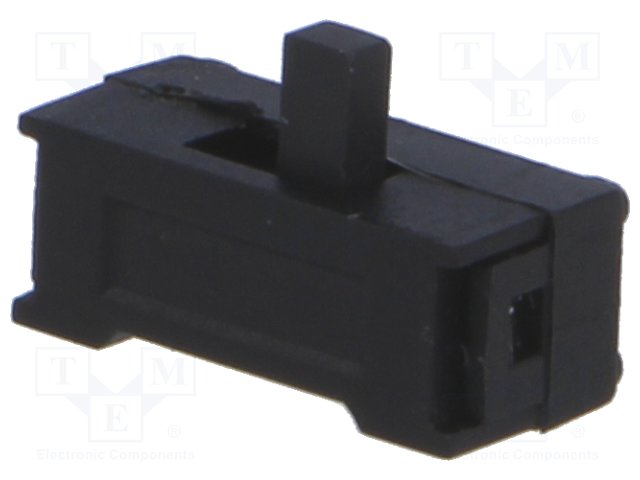

Images
