1825910-2 - TE Connectivity
Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 24VDC 1.57N Thru-Hole Loose Piece
Technical Details
| Actuator Length | 700µm |
| Actuator Material | PBT, Polyacetal, Resin |
| China RoHS | Compliant |
| Color | Black |
| Contact Current Rating | 50mA |
| Contact Material | Copper |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Country of Origin | Mainland China |
| Current Rating | 50mA |
| Depth | 7.8mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 3.61mm |
| Housing Material | Nylon |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-11-08 |
| Lead Free | Lead Free |
| Length | 5.99mm |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -35°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 1.568N |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | PC Pin, PC Pins |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 24V |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

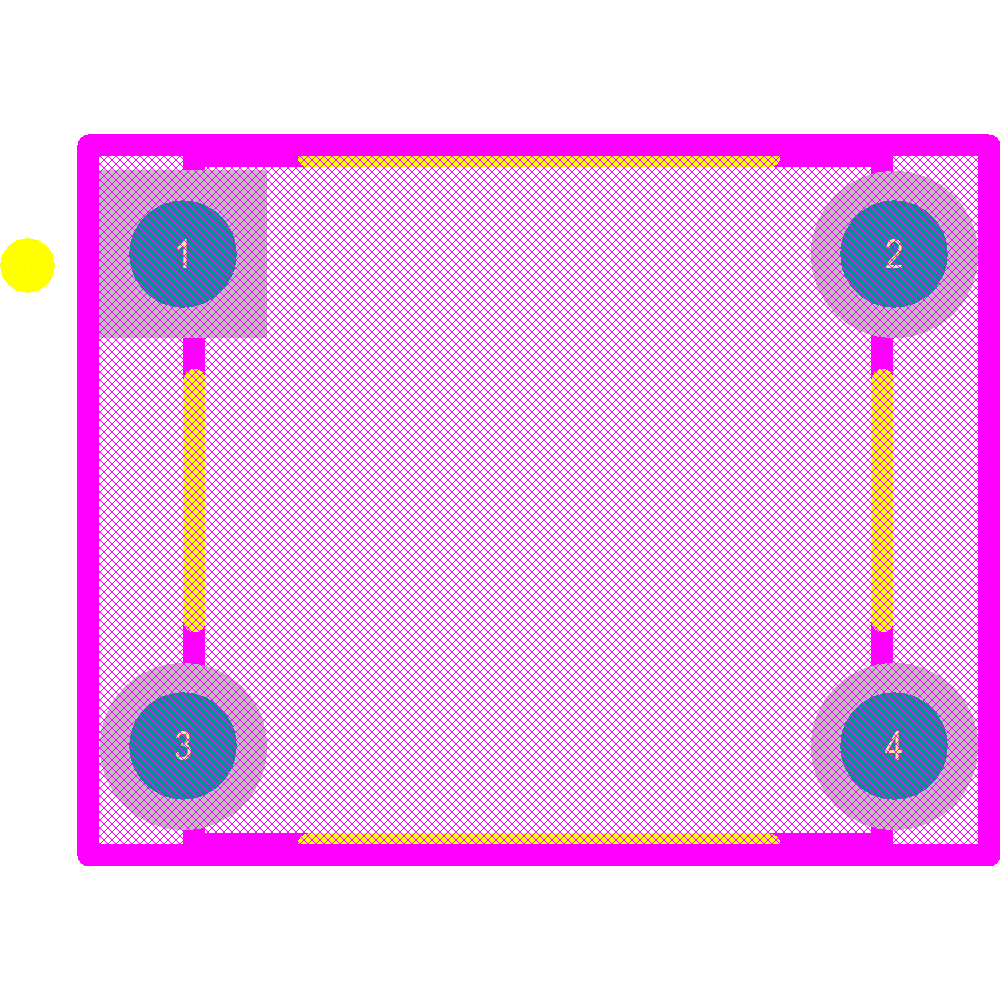

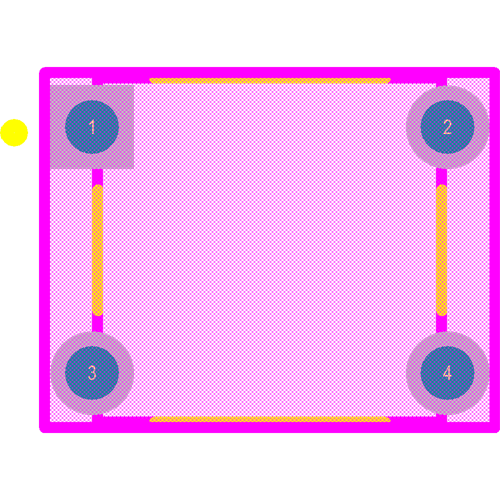

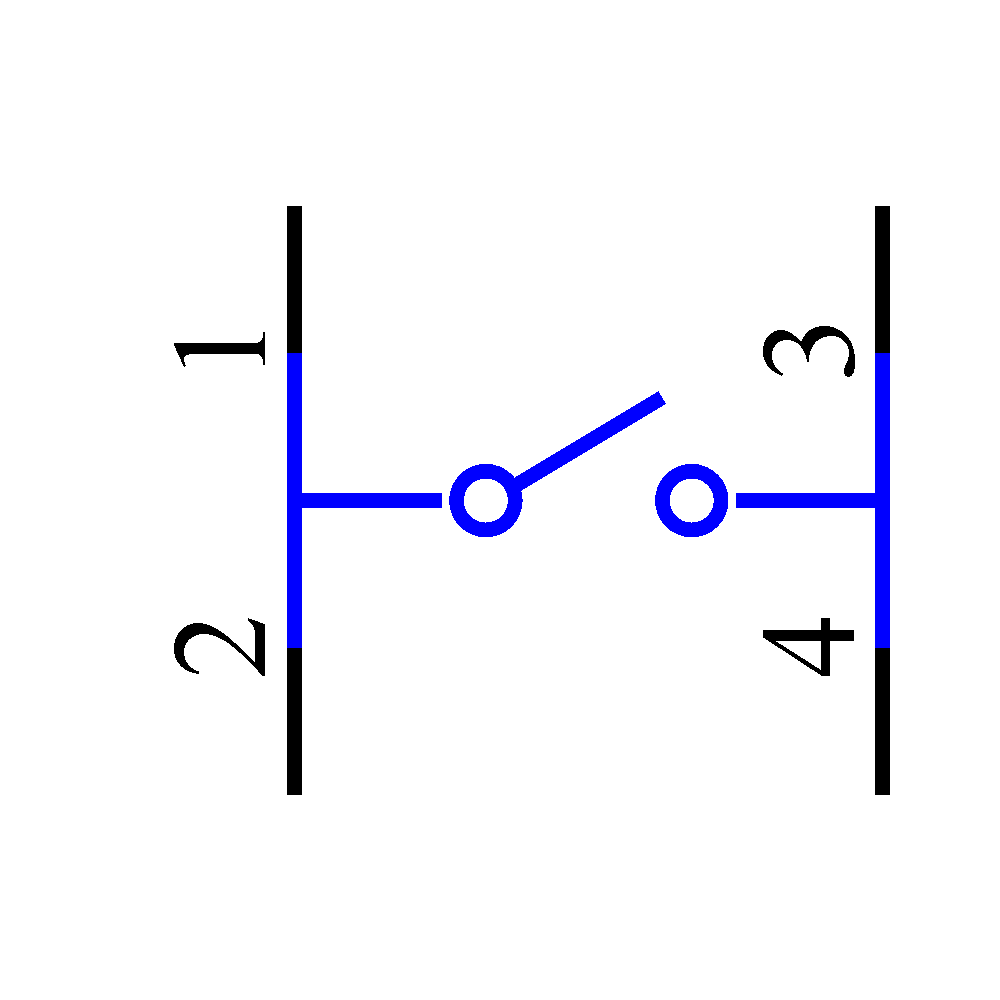

Images
