Electromechanical  >  Switches  >  Pushbutton Switches

TE Connectivity - 2-1825027-0

2-1825027-0 - TE Connectivity

Pushbutton Switch, SPST, Momentary, 0.05A, 24VDC, Solder Terminal, Through Hole-right Angle

 Datasheets

Technical Details

Actuator Length 9.24mm
Actuator Material Nylon
China RoHS Compliant
Color Black
Contact Current Rating 50mA
Contact Plating Silver
Contact Resistance 100mΩ
Current Rating 50mA
Depth 10mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
ELV Compliant
Height 7.01mm
Housing Material Nylon
Harmonized Tariff Schedule (HTS) Code 8536.50.70.00
Illumination Type Illuminated, Non-Illuminated
Introduction Date 2020-10-12
Lead Free Lead Free
Length 15.86mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Material Nylon
Max Current Rating 50mA
Max Operating Temperature 85°C
Max Voltage Rating (DC) 24V
Mechanical Life 100kcycles
Min Operating Temperature -35°C
Mount Through Hole
Number of Positions 2
Operating Force 1.568N
Orientation Right Angle
Packaging Bulk
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Switch Function Off-Mom
Switch Travel 250µm
Termination PC Pins
Throw Configuration SPST
Type Switch
Voltage Rating (DC) 24V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

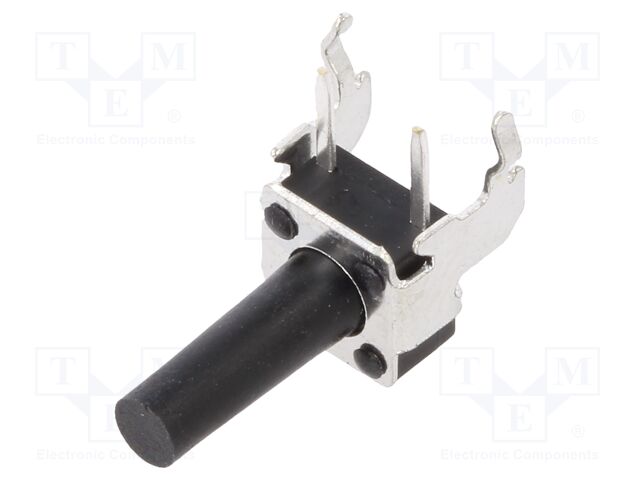

TE Connectivity 2-1825027-0 | TME

TME

Datasheets

 Master Electronics
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

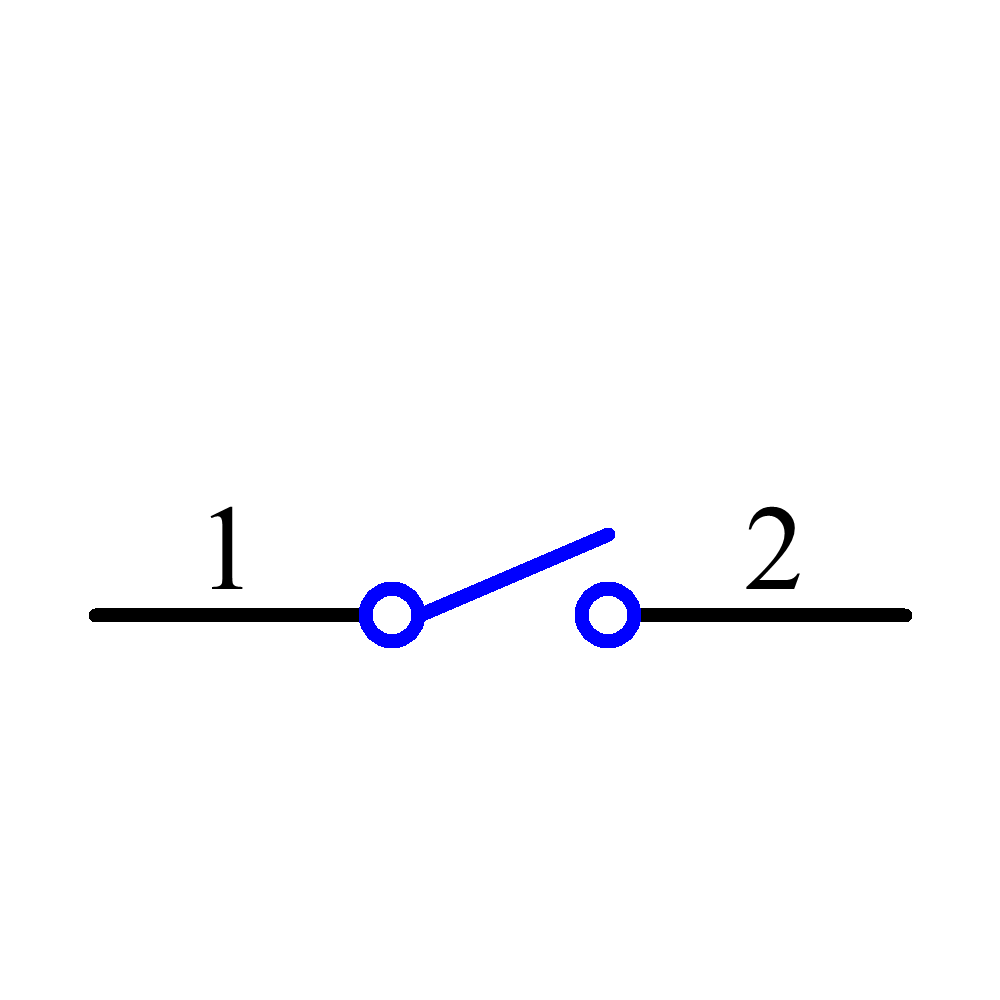

Symbol

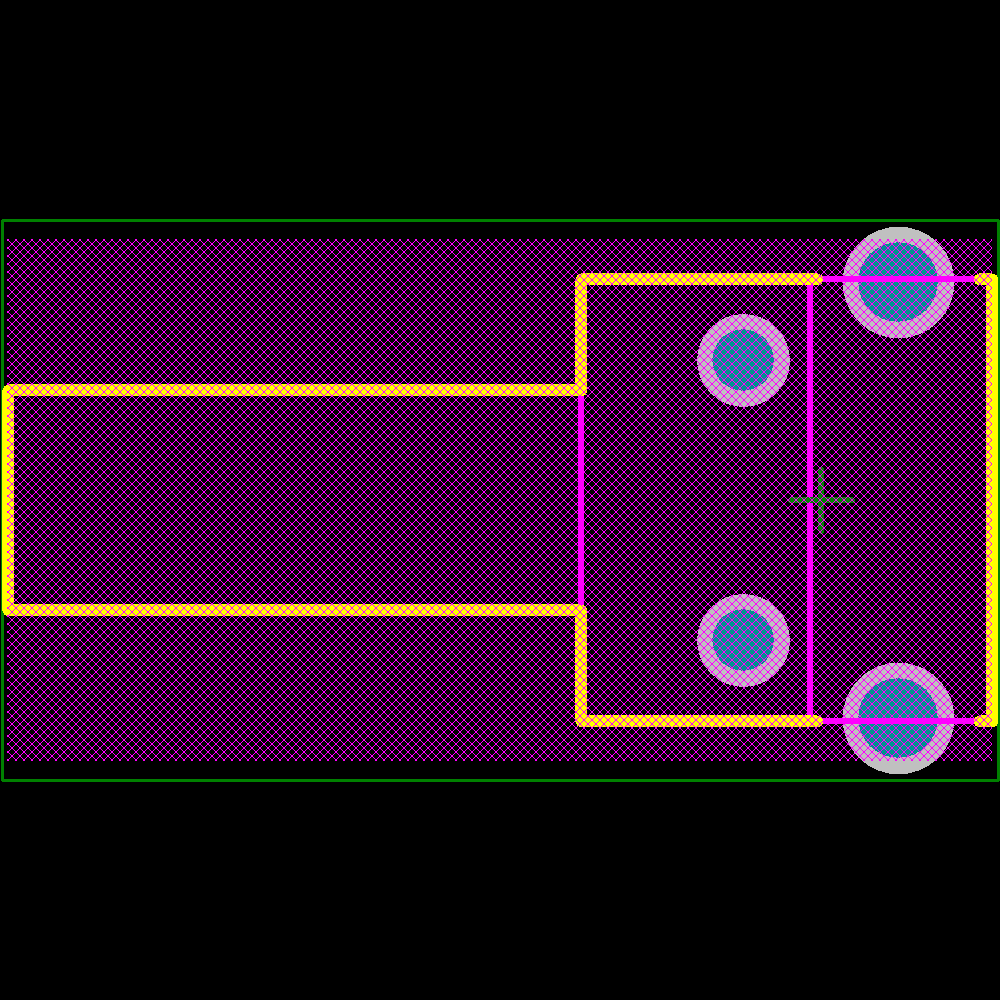

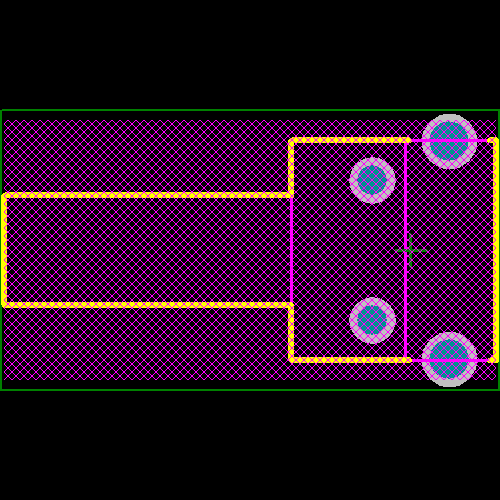

Footprint
