280365 - TE Connectivity
2.54mm 2x4P 4 2 Without a buckle P=2.54mm Housings (Wire To Board / Wire To Wire ) ROHS
Technical Details
| China RoHS | Compliant |
| Color | Black |
| Connector Type | Receptacle, Socket |
| Contact Current Rating | 3A |
| Contact Gender | Female |
| Current Rating | 3A |
| Depth | 13.7mm |
| Dielectric Material | Liquid Crystal Polymer |
| Flammability Rating | UL94 V-1 |
| Gender | Receptacle |
| Height | 3.048mm |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Lead Pitch | 2.54mm |
| Length | 7.1mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Mating Retention | With |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 8 |
| Number of Pins | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 2.54mm |
| Schedule B | 8538907080, 8538907080|8538907080, 8538907080|8538907080|8538907080, 8538907080|8538907080|8538907080|8538907080 |
| Shielding | Unshielded |
| Terminal Pitch | 2.54mm |
| Termination | Crimp |
| Width | 7.1mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 22AWG |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

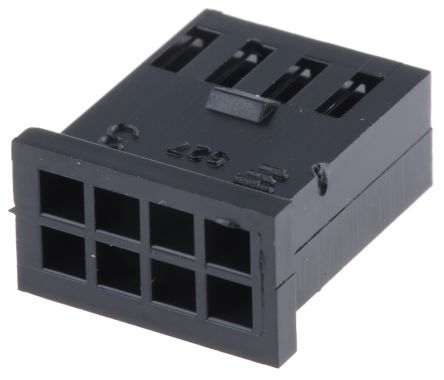

Images
