282103-1 - TE Connectivity
Connector Housing, SUPERSEAL 1.5, Plug, 1 Ways, Superseal 1.5 Series Connectors
Technical Details
| China RoHS | Compliant |
| Circuit Application | Signal |
| Color | Black |
| Connector Type | Male Pin, Receptacle, Tab |
| Contact Current Rating | 14A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Resistance | 3mΩ |
| Current Rating | 14A |
| Depth | 13.8mm |
| ELV | Compliant |
| Fastening Type | Ramp |
| Gender | Male |
| Height | 42.0116mm |
| Housing Color | Black |
| Housing Material | Polyamide |
| Hybrid Connector | No |
| Insulation Resistance | 200MΩ |
| Lead Free | Not Applicable |
| Length | 13.589mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Mating Tab Width | 1.4986mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 1 |
| Number of Pins | 1 |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Box |
| Polarized | Yes |
| Radiation Hardening | No |
| Ratings | IP67 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Serviceable | Yes |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 24V |
| Voltage Rating (DC) | 24V |
| Width | 9.2964mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 14AWG |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

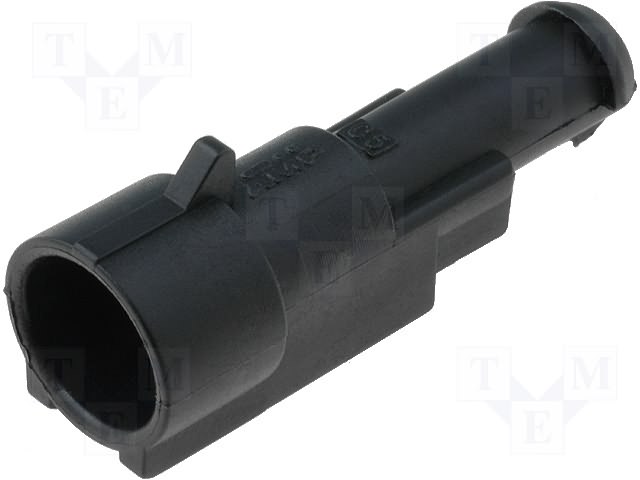

Images
