TE Connectivity - 292304-1

292304-1 - TE Connectivity

Usb Connector, 4 Contact(S), Female, Right Angle, Solder Terminal, Guide Slot, Receptacle

 Datasheets

Technical Details

China RoHS Compliant
Circuit Application Signal
Contact Current Rating 1A
Contact Gender Female
Contact Material Copper
Contact Plating Gold
Contact Resistance 30mΩ
Country of Origin Mainland China
Current Rating 1A
Dielectric Material Polyethylene
Export Control Classification Number (ECCN) Code EAR99
Gender Receptacle
Housing Color Black
Housing Material Thermoplastic
Harmonized Tariff Schedule (HTS) Code 8536.69.40.30
Insulation Resistance 1GΩ
Introduction Date 2006-08-30
Lead Free Lead Free
Length 15.71mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 85°C
Max RMS Current 1A
Min Operating Temperature -55°C
Number of Contacts 4
Number of Pins 4
Number of Ports 1
Number of Positions 4
Number of Rows 2
Operating Force 35N
Orientation Right Angle
Plating Thickness 759.968nm
REACH SVHC Yes
RoHS Compliant
Row Spacing 2mm
Schedule B 8536694040, 8536694040|8536694040|8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040|8536694040|8536694040|8536694040
Shell Finish Tin
Shell Material Stainless Steel
Shielding Unshielded
Terminal Pitch 2.5mm
Voltage Rating (AC) 30V
Width 12.04mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

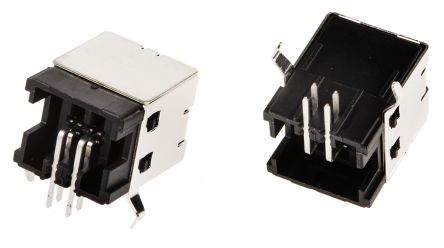

TE Connectivity 292304-1 | RS

RS

Datasheets

 RS
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

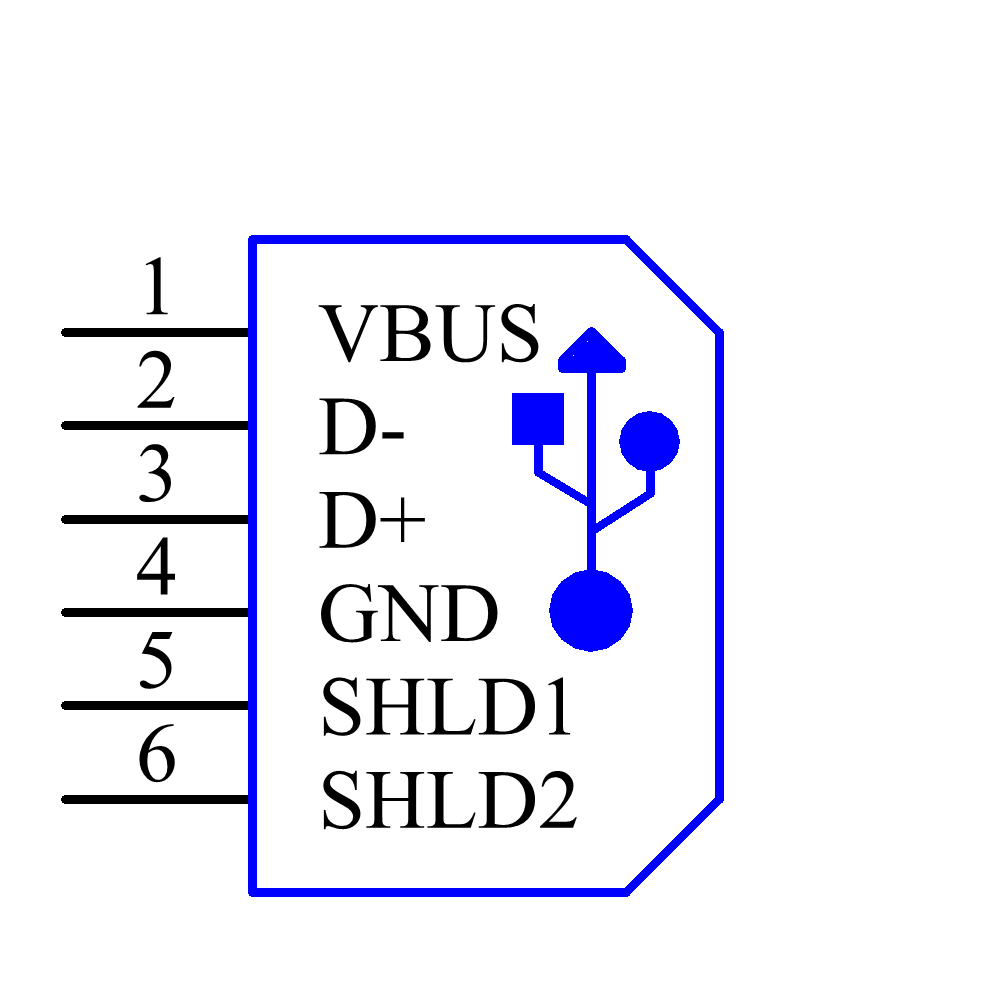

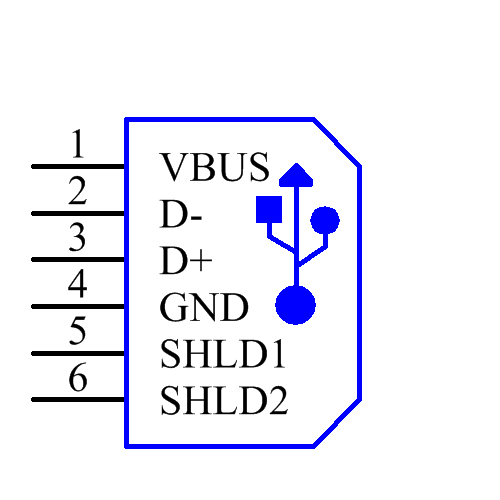

Symbol

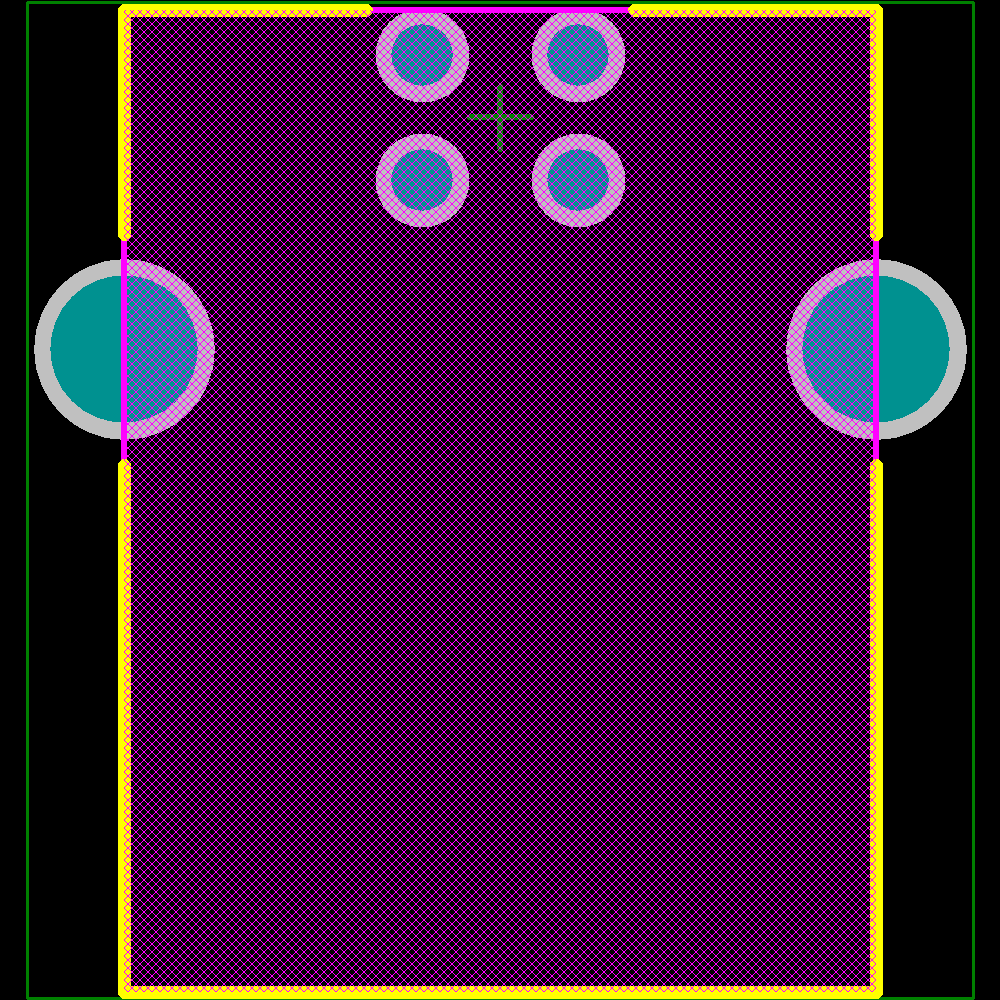

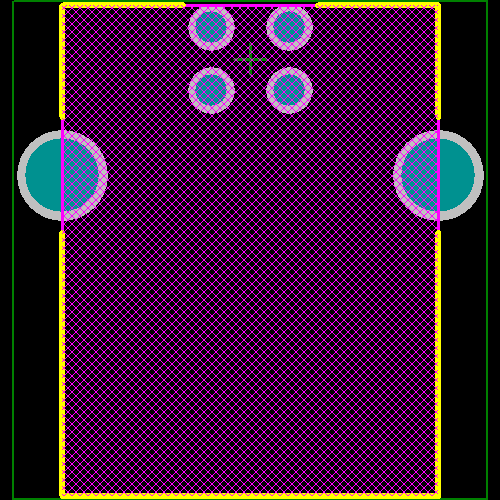

Footprint
