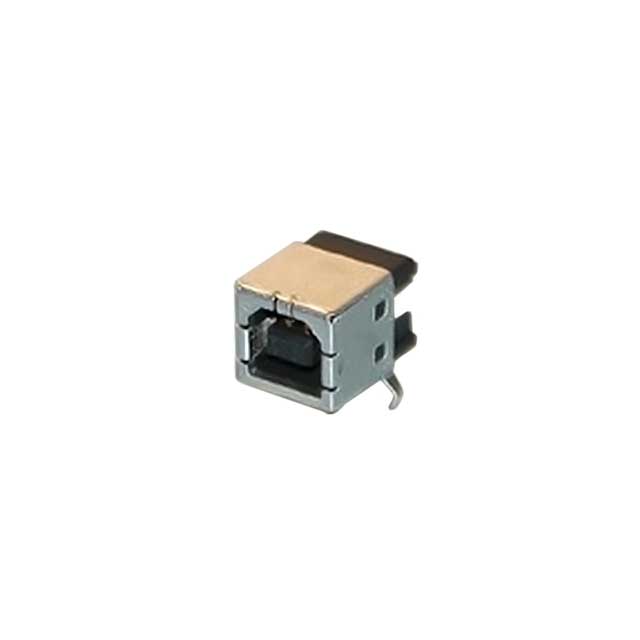

USB Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle

 Datasheets

Technical Details

China RoHS Compliant
Circuit Application Signal
Color Black
Connector Type Receptacle
Contact Current Rating 1A
Contact Gender Female
Contact Plating Gold
Contact Resistance 10mΩ
Current Rating 1A
Depth 15.71mm
Dielectric Material Polyethylene
Export Control Classification Number (ECCN) Code EAR99
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color Black
Housing Material Thermoplastic
Harmonized Tariff Schedule (HTS) Code 8536.69.40.30
Insulation Resistance 1GΩ
Length 12.04mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 85°C
Max RMS Current 1A
Min Operating Temperature -55°C
Mount Horizontal, Through Hole
Number of Contacts 4
Number of Pins 4
Number of Ports 1
Number of Positions 4
Number of Rows 2
Number of Terminals 4
Operating Force 35.1392N
Orientation Right Angle
PCB Thickness 1.57mm
Pitch 2.5mm
Plating Tin
Plating Thickness 759.968nm
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Row Spacing 2mm
Shell Finish Tin
Shell Material Stainless Steel
Shielding Unshielded
Tail Length 3.0099mm
Terminal Pitch 2.5mm
Termination Solder, Through Hole
