Electromechanical > Switches > Pushbutton Switches

4-1437565-9 - TE Connectivity

Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 1.57N SMD Loose Piece

Technical Details

Actuator Length	3.4mm
Actuator Material	Polyamide
Case/Package	SMD/SMT
China RoHS	Compliant
Color	Black, Brown
Contact Current Rating	50mA
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Depth	10mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	100kcycles
Height	3.6mm
Housing Material	Polyamide
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Insulation Resistance	100MΩ
Lead Free	Lead Free
Length	6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	50mA
Max Operating Temperature	85°C
Max Voltage Rating (DC)	24V
Min Operating Temperature	-35°C
Mount	Surface Mount
Number of Positions	1
Operating Force	1.568N
Orientation	Straight
Packaging	Bulk
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Termination	Gull Wing
Throw Configuration	SPST
Voltage Rating	24V
Voltage Rating (DC)	24V
Width	6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 4-1437565-9 | TME

TME

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

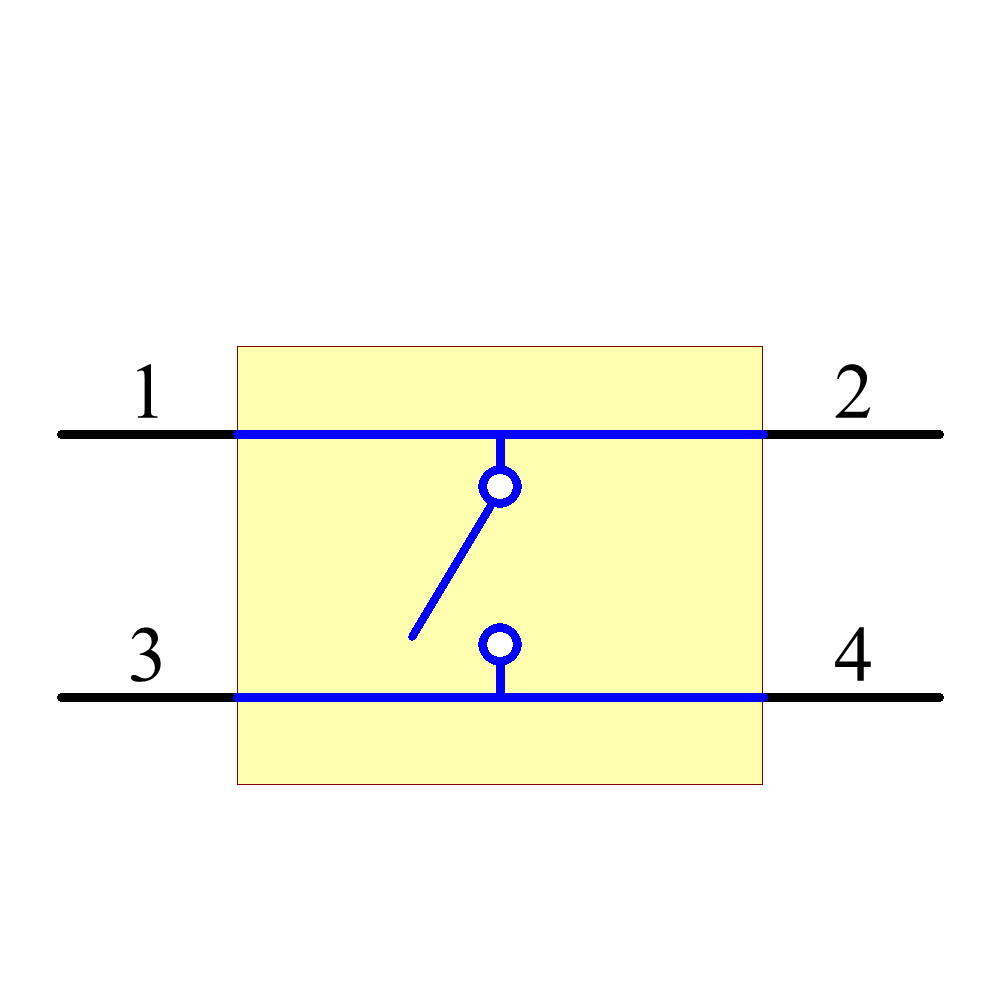

Symbol

4-1437565-9 Symbol - TE Connectivity

4-1437565-9 Symbol - TE Connectivity

4-1437565-9 Symbol - TE Connectivity

4-1437565-9 Symbol - TE Connectivity

‹ ›

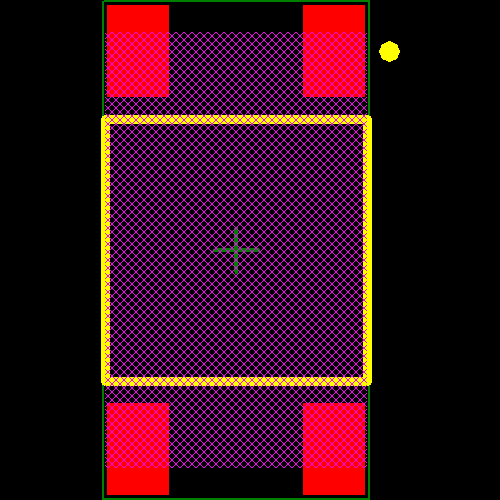

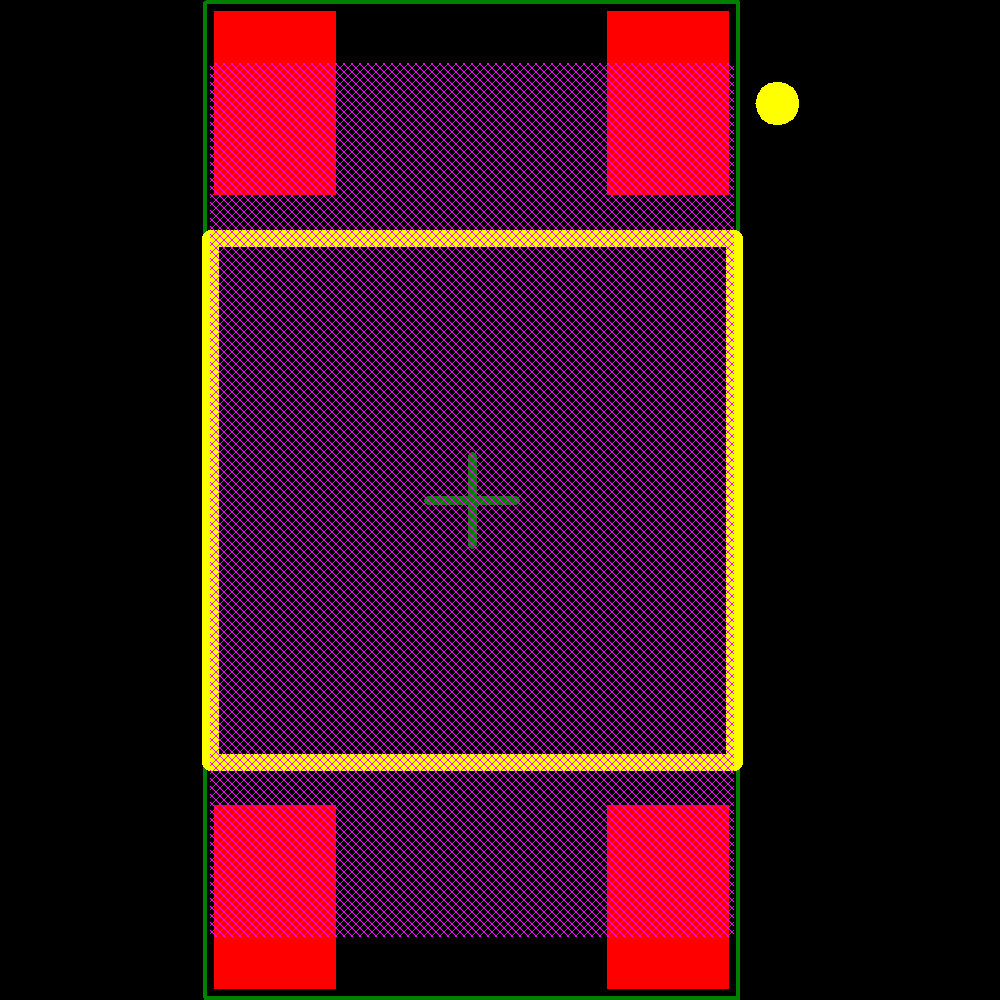

Footprint

4-1437565-9 Footprint - TE Connectivity

4-1437565-9 Footprint - TE Connectivity

4-1437565-9 Footprint - TE Connectivity

4-1437565-9 Footprint - TE Connectivity

‹ ›
