8-1437565-1 - TE Connectivity
Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.02A 15VDC 1.57N SMD
Technical Details
| Actuator Length | 400µm |
| Actuator Material | Brass |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Electrical Life | 500kcycles |
| ELV | Compliant |
| Height | 800µm |
| Housing Material | Nylon |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Life (Cycles) | 500kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500kcycles |
| Min Operating Temperature | -35°C |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 2.548N |
| Orientation | Straight |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8536908085 |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 32V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

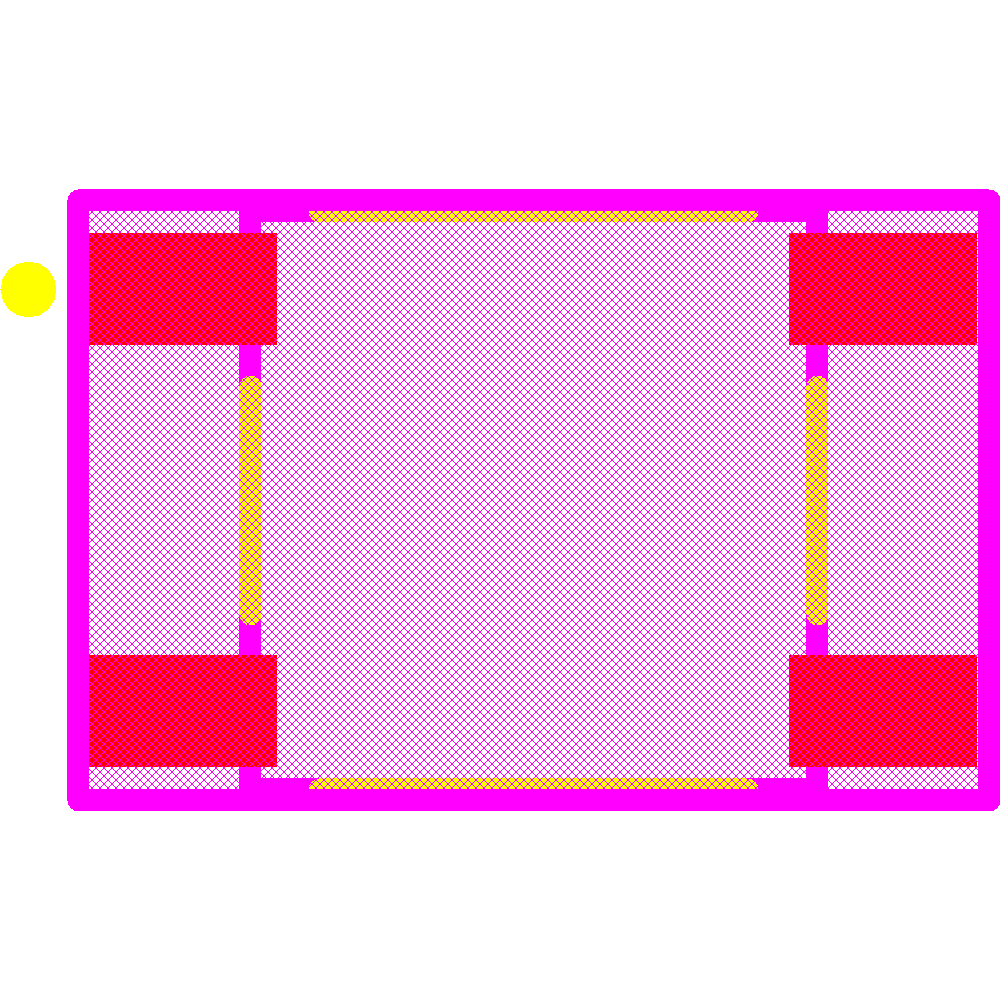

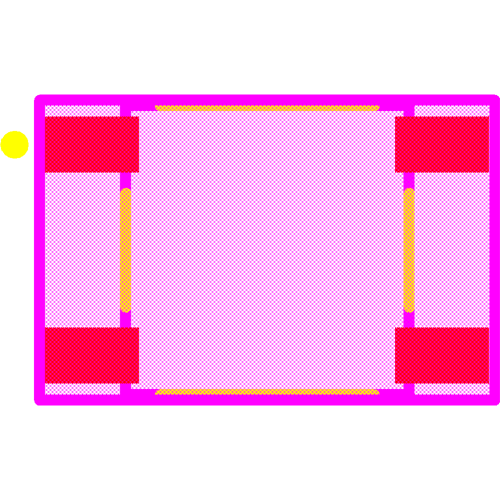

Images
