Connectors > Automotive Connectors

8-968970-2 - TE Connectivity

Connector Housing, MCP 2.8, Receptacle, 6 Ways, 5 mm, AMP MCP 2.8 Series Power Contacts

Technical Details

China RoHS	Compliant
Circuit Application	Signal
Color	Grey
Connector Type	Receptacle, Socket
Contact Gender	Female
Current Rating	24A
Depth	24mm
Export Control Classification Number (ECCN) Code	EAR99
ELV	Compliant
Height	24mm
Housing Color	Grey
Housing Material	Polyamide
Harmonized Tariff Schedule (HTS) Code	8536.69.40.30
Hybrid Connector	No
Insulation Material	PBT
Introduction Date	2005-11-23
Length	16mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Mating Tab Width	2.794mm
Max Operating Temperature	120°C
Min Operating Temperature	-40°C
Mount	Cable
Number of Contacts	6
Number of Pins	6
Number of Ports	1
Number of Positions	6
Number of Rows	2
Orientation	Straight
Packaging	Carton
Pitch	5mm
Polarized	No
Radiation Hardening	No
Ratings	IP67
REACH SVHC	Yes
RoHS	Compliant
Row Spacing	5.0038mm
Serviceable	No
Shielding	Unshielded
Terminal Pitch	5mm
Termination	Crimp
Voltage Rating	28V
Width	16mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

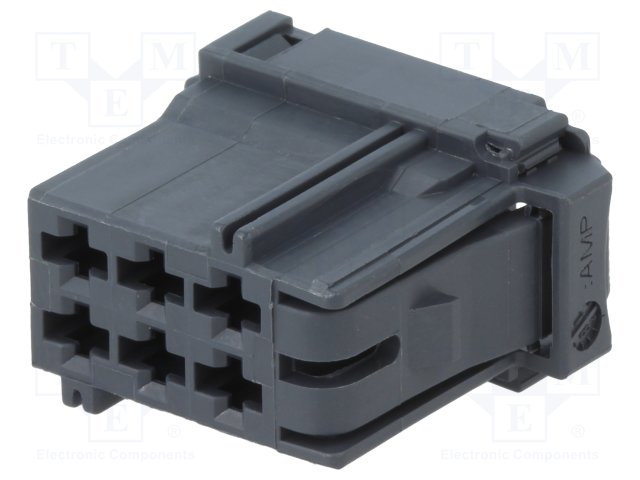

TE Connectivity 8-968970-2 | TME

TME

Datasheets

Lifecycle Status Indicator

Production
