FSM2JART - TE Connectivity
Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 12VDC 2.55N Thru-Hole Radial Tape
Technical Details
| Actuator Length | 700µm |
| Actuator Material | Polyacetal |
| Case/Package | Radial |
| China RoHS | Compliant |
| Color | Red |
| Contact Current Rating | 50mA |
| Contact Material | Copper |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 6.19mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 3.6mm |
| Housing Material | Polyamide |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Introduction Date | 2004-09-01 |
| Lead Free | Lead Free |
| Length | 6.19mm |
| Life (Cycles) | 100kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 1.568N |
| Orientation | Straight |
| Packaging | Tape and Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Termination | PC Pins, Solder |
| Throw Configuration | SPST |
| Type | Switch |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

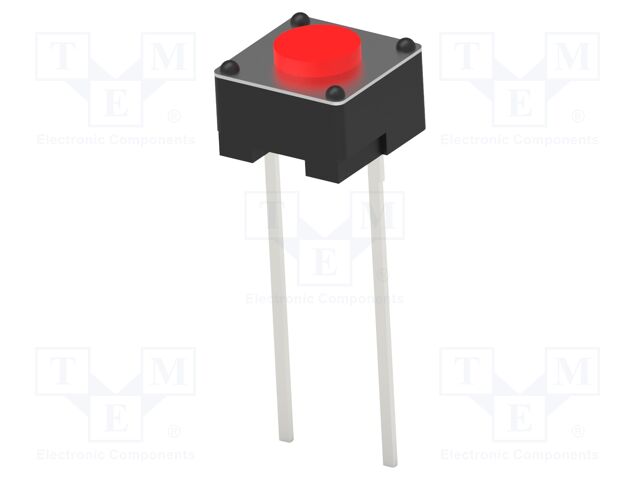

Images
