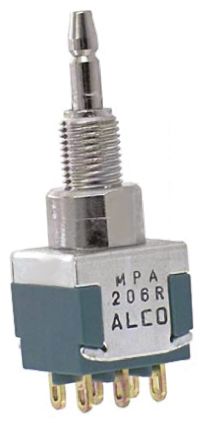

MPA206R - TE Connectivity
Pushbutton Switch, DPDT, Momentary, 6A, 28VDC, Wire Terminal, Panel Mount
Technical Details
| Actuator Length | 13.97mm |
| China RoHS | Compliant |
| Color | Natural |
| Contact Current Rating | 6A |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Resistance | 10mΩ |
| Contact Voltage Rating (AC) | 250V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| ELV | Compliant |
| Height | 11.68mm |
| Housing Material | Thermoset |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.35 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 1999-01-01 |
| Lead Free | Contains Lead |
| Length | 13mm |
| Life (Cycles) | 50kcycles |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -20°C |
| Mount | Panel |
| Number of Positions | 2 |
| Operating Force | 11.9952N |
| Orientation | Vertical |
| Packaging | Bulk |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8536509030, 8536509030|8536509030|8536509030|8536509030|8536509030, 8536509035 |
| Sealable | MOLDED |
| Termination | Lug |

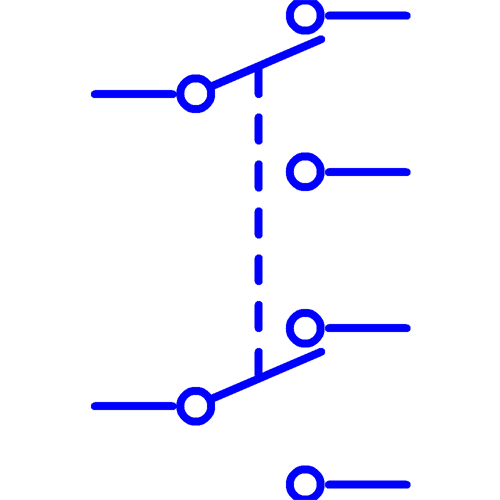

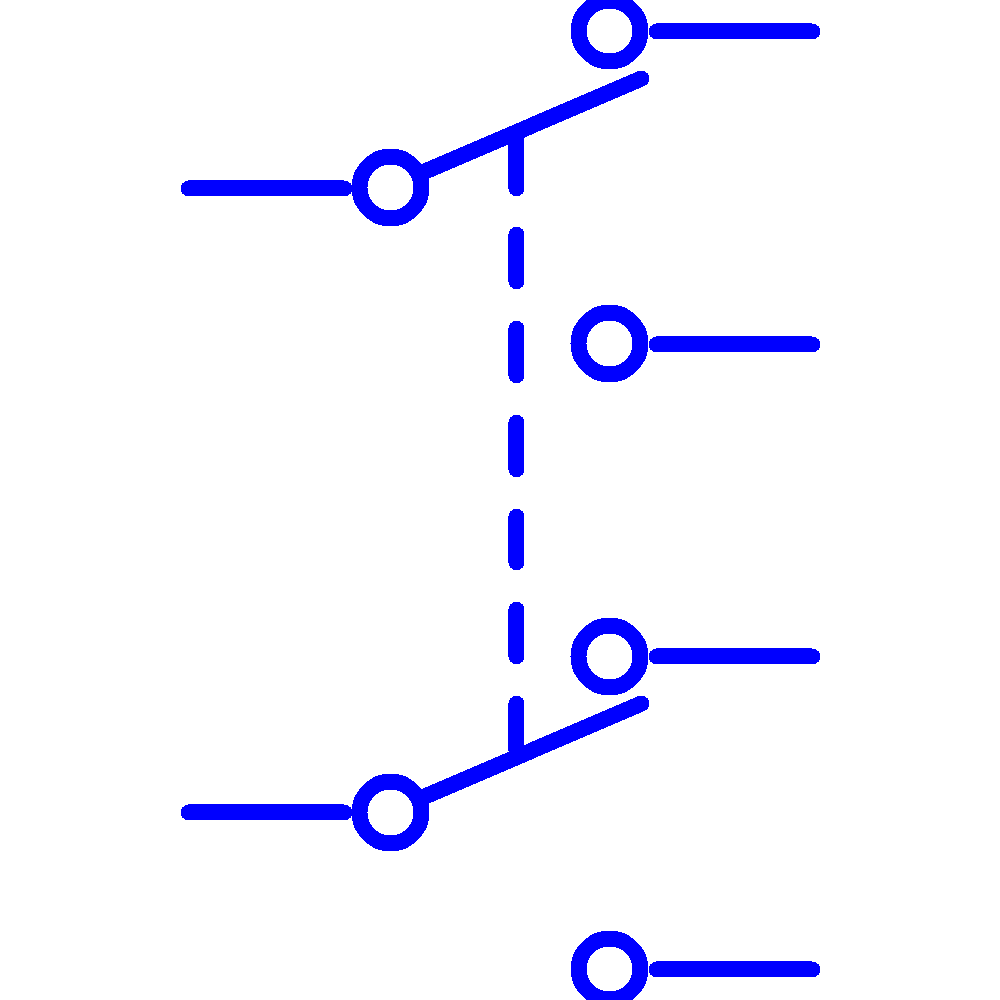

| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 28V |
| Width | 13mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
