5962-8670408VXA - Texas Instruments
Radiation-tolerant QMLV, 30-V input, 1-A single-output 500-kHz PWM controller, 50% duty cycle
Technical Details
| Duty Cycle | 50% |
| Fall Time | 50ns |
| Height | 0m |
| Lead Free | Contains Lead |
| Length | 8.89mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 30V |
| Min Operating Temperature | -55°C |
| Number of Pins | 20 |
| Output Current | 1A |
| Packaging | Rail/Tube |
| Rise Time | 50ns |
| RoHS | Non-Compliant |
| Switching Frequency | 500kHz |
| Thickness | 1.83mm |
| Topology | Boost, Flyback |
| Width | 8.89mm |
Compliance
RoHS : Unconfirmed

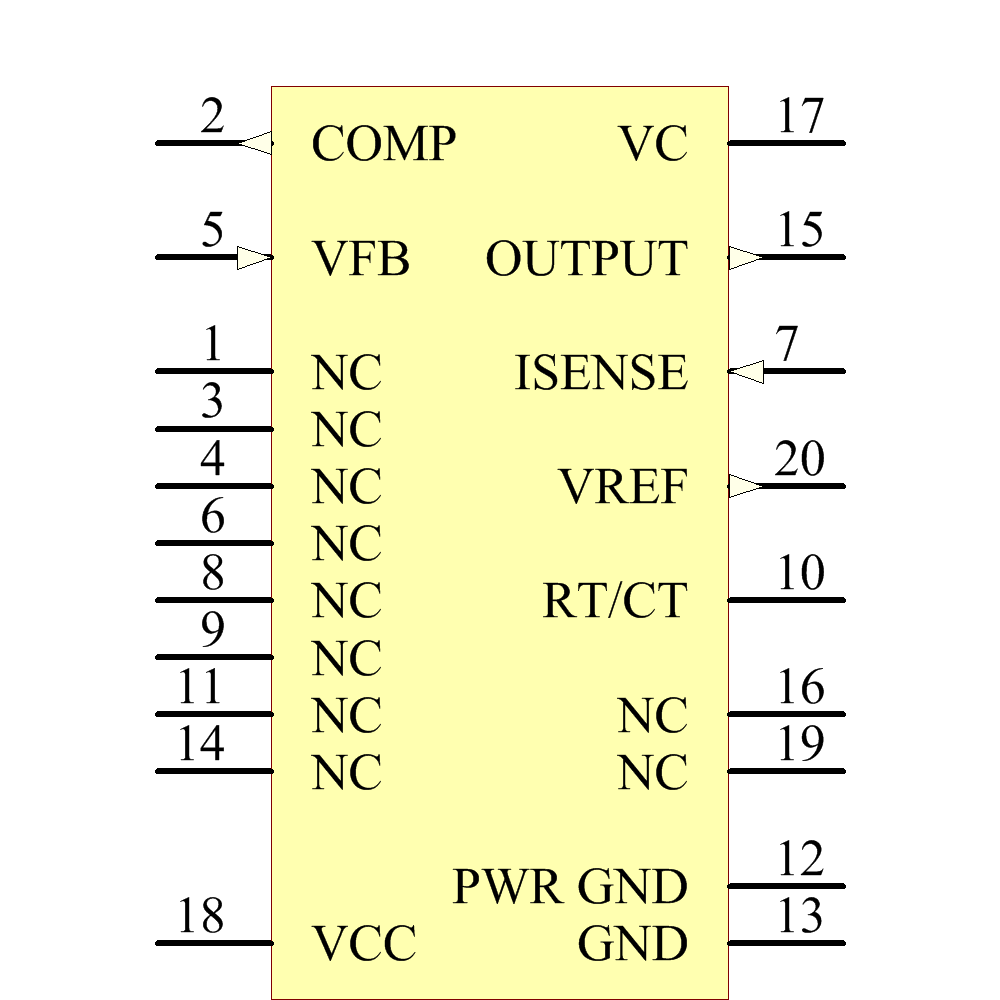

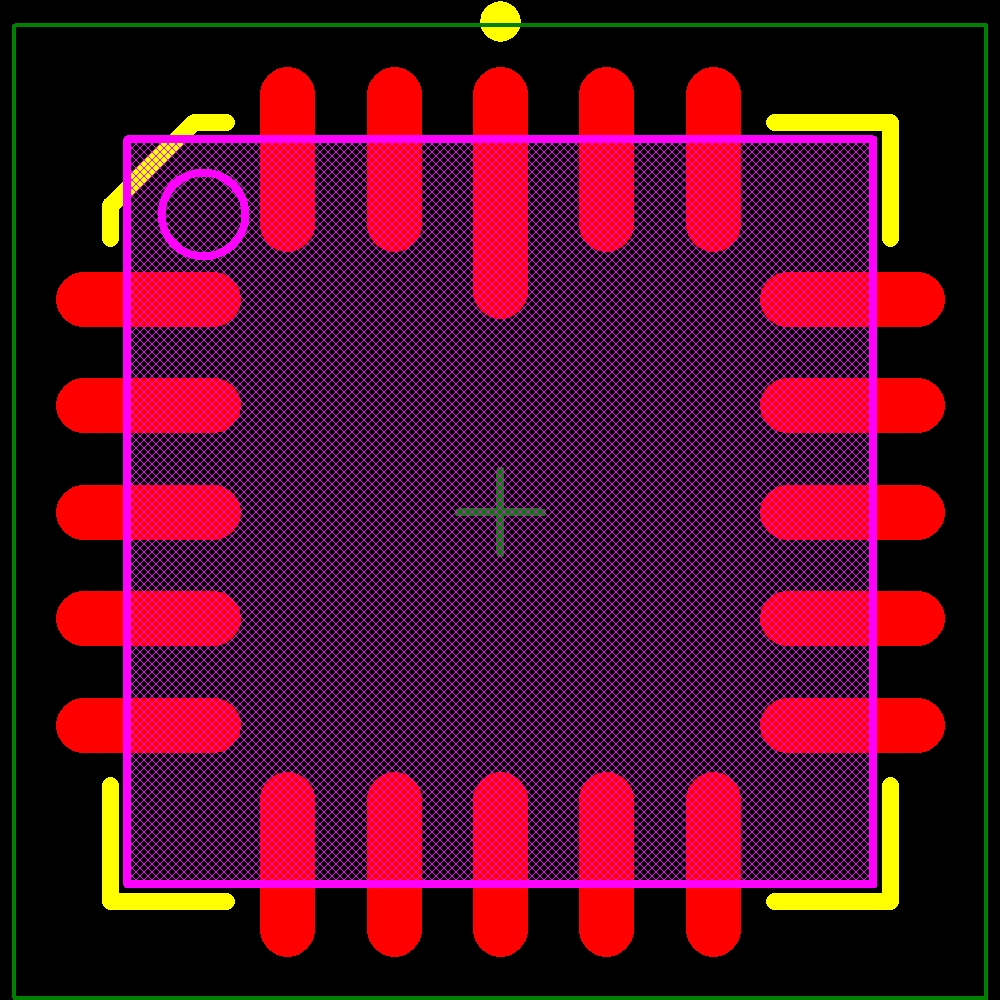

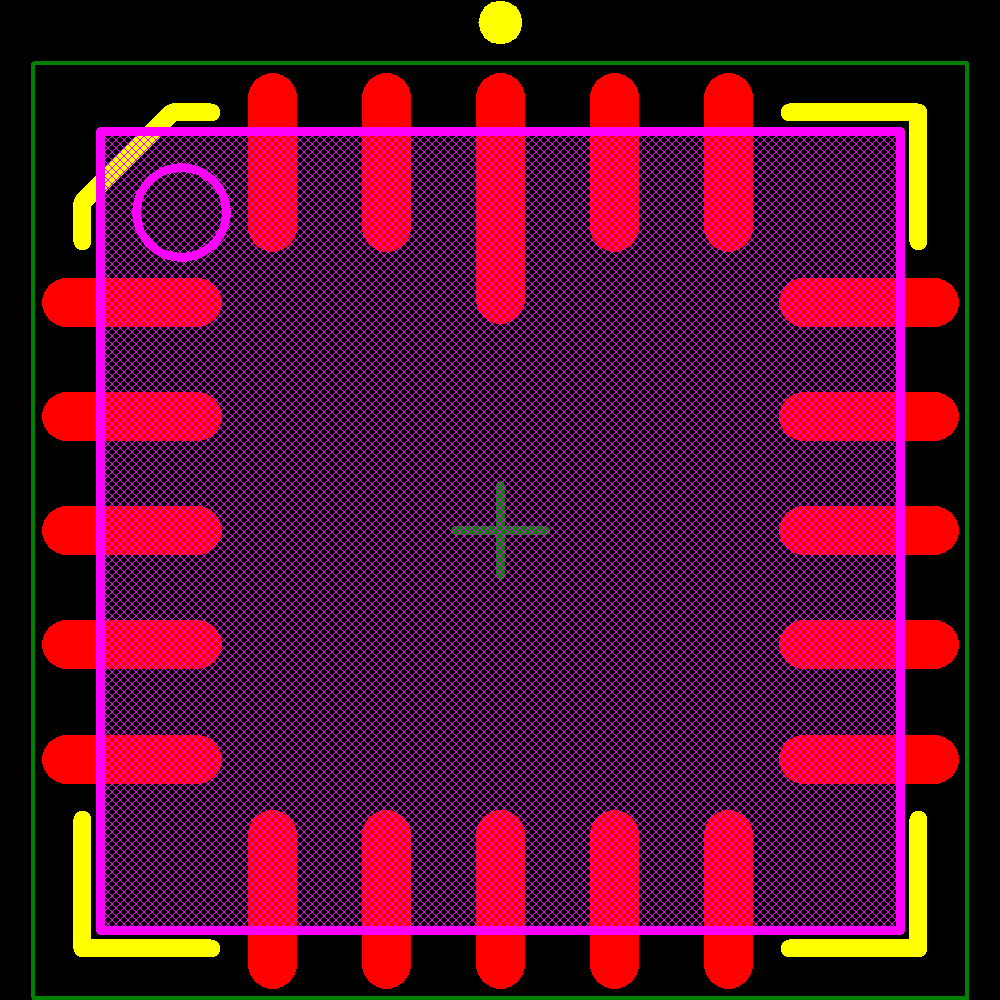

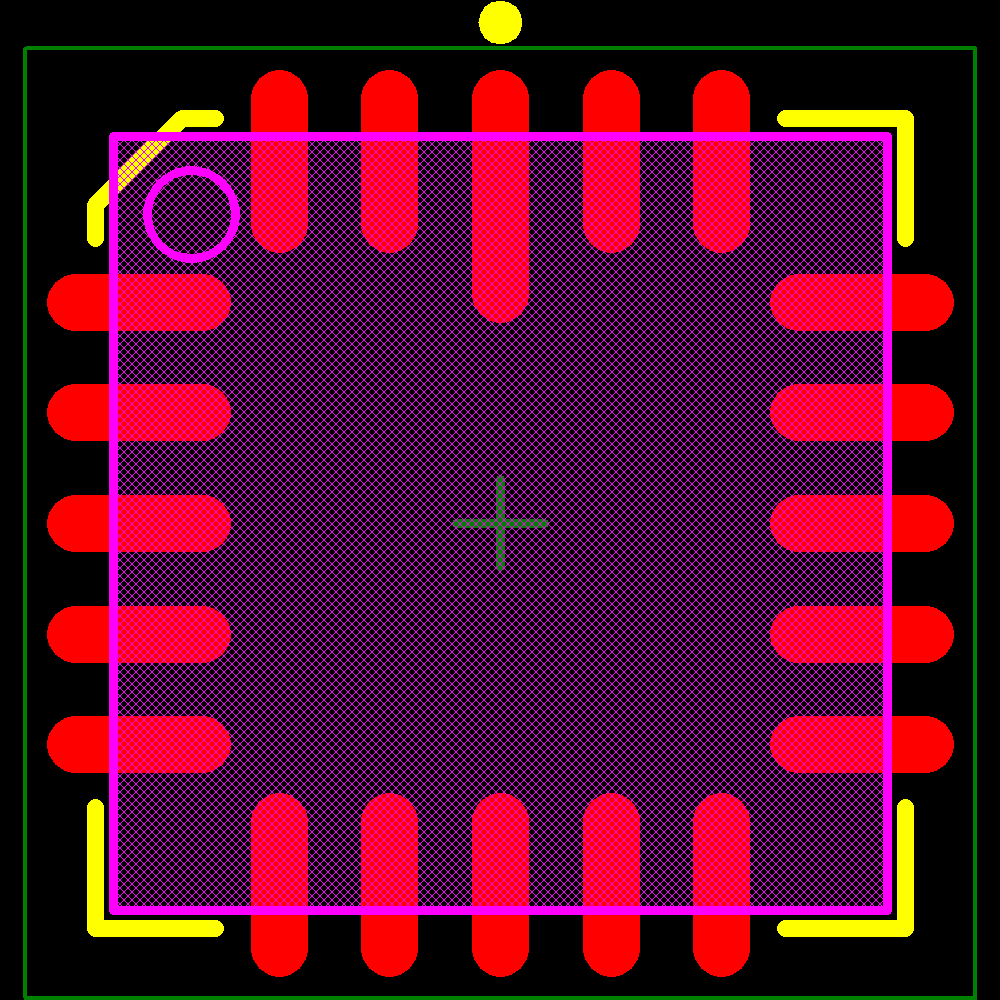

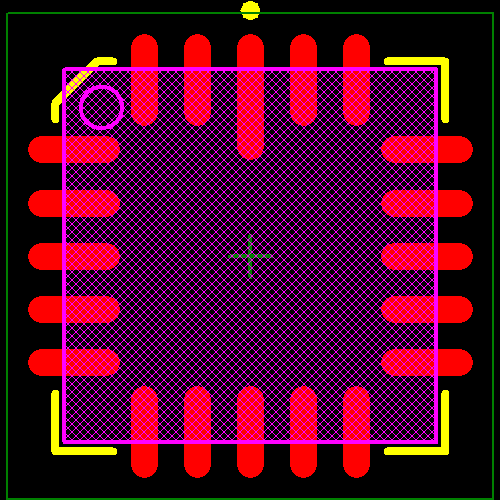

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow Electronics |
US: 0
|
$ | 453.91 | 449.37 | 440.43 | 436.03 | 423.08 | 418.85 | ||
| Texas Instruments |
US: 2232
|
$ | 401.393 | 367.943 | 367.943 | 334.494 | 334.494 | 334.494 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Microchip USA |
US: 1014
|
$ | ||||||||
| Utmel Electronic |
HK: -3
|
$ | ||||||||
