5962-9453001VXC - Texas Instruments
Space-grade QMLV, 40-V input, 1.5-A dual-output 1-MHz PWM controller 16-CFP -55 to 125
Technical Details
| Height | 2.13mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Duty Cycle | 50% |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 40V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 12V |
| Mount | Surface Mount |
| Nominal Supply Current | 18mA |
| Number of Outputs | 2 |
| Number of Pins | 16 |
| Output Current | 1.5A |
| Output Voltage | 5.1V |
| Rise Time | 40ns |
| RoHS | Compliant |
| Switching Frequency | 1MHz |
| Thickness | 1.95mm |
| Topology | Boost, Flyback, Full-Bridge, Half-Bridge, Push-Pull |
| Width | 7.1mm |
Compliance
RoHS : Unconfirmed

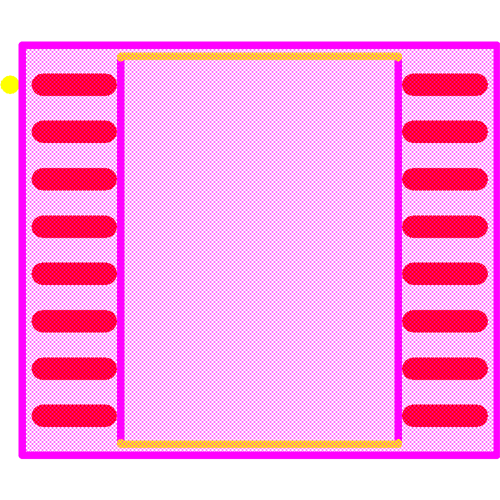

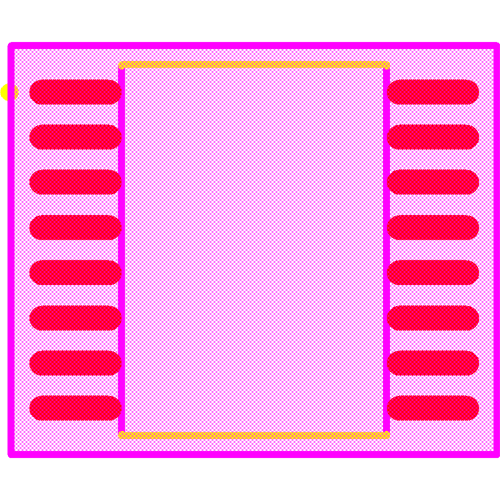

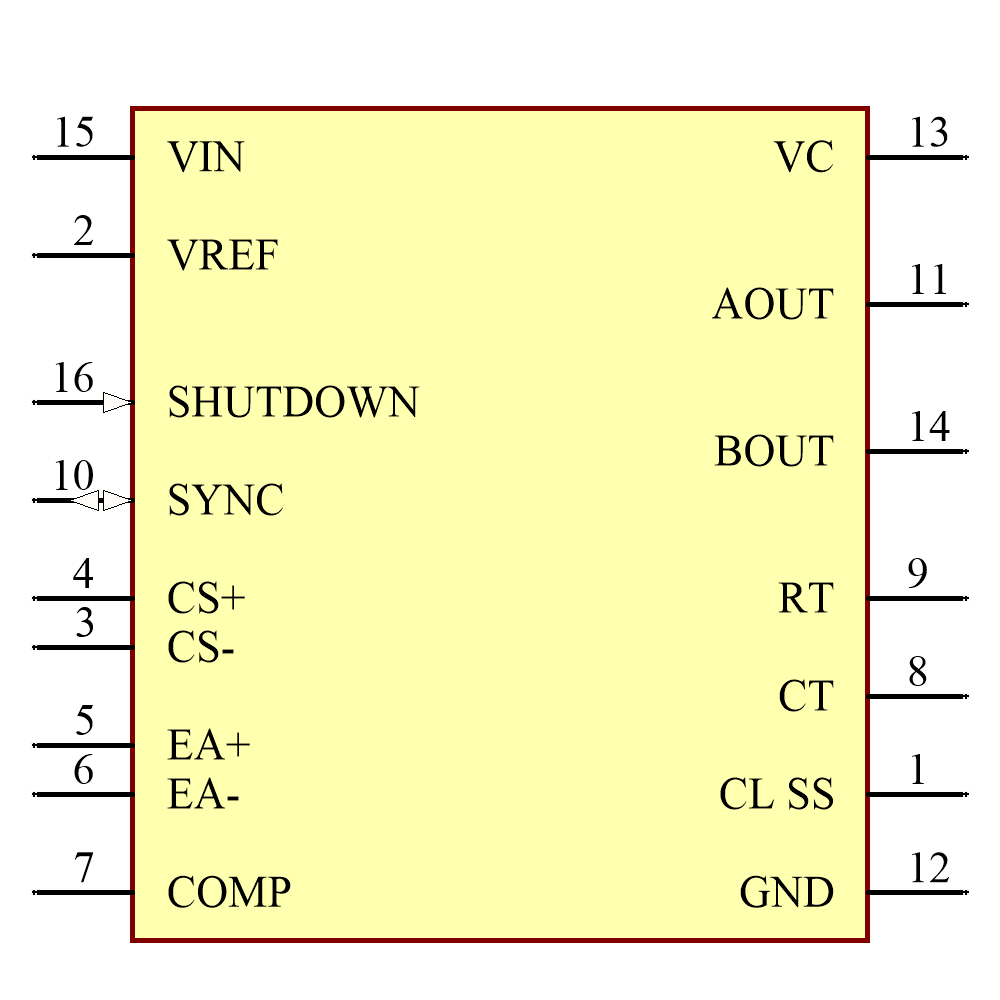

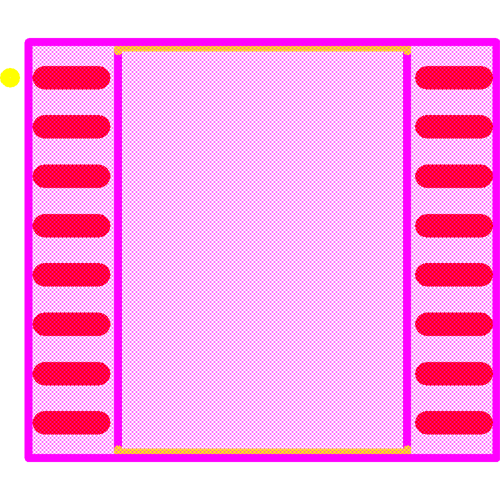

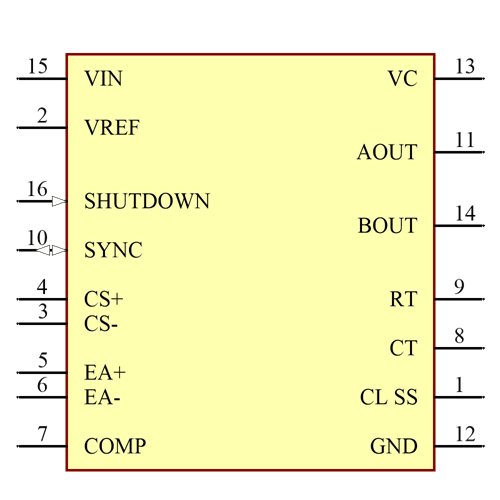

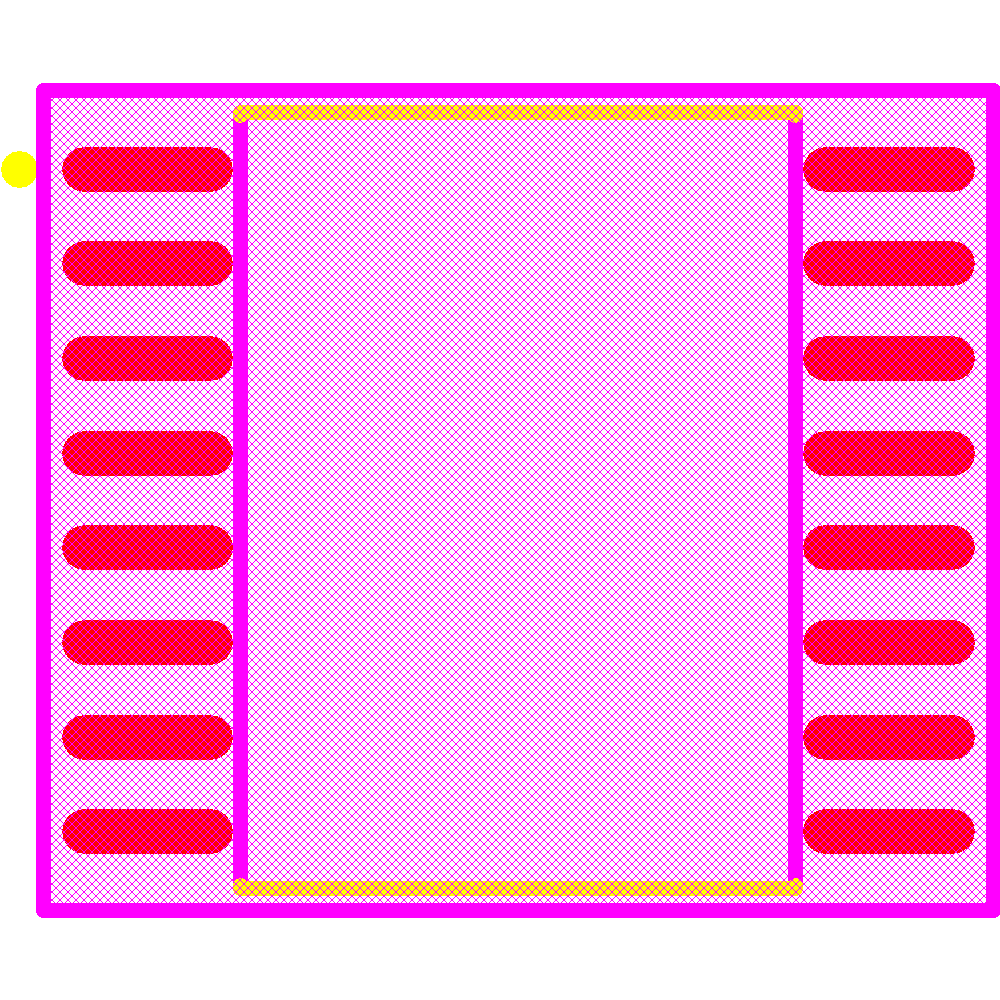

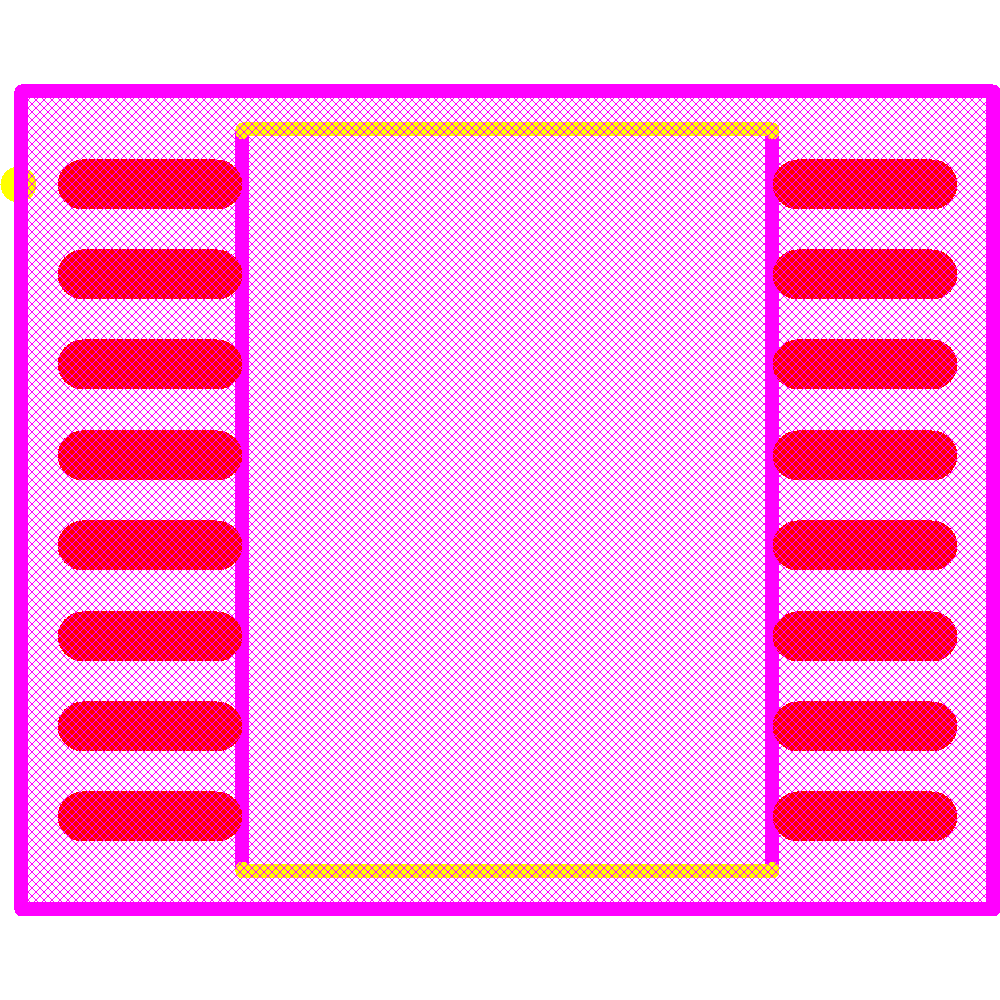

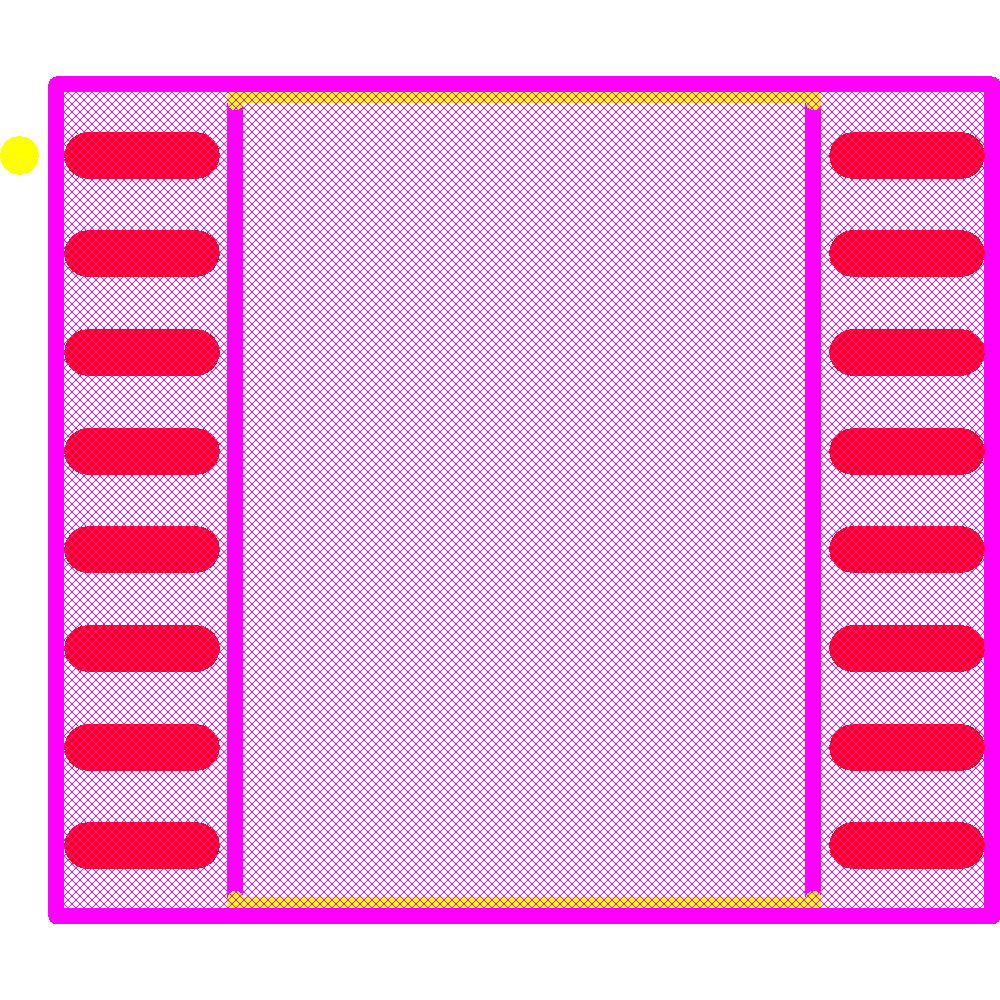

Images
Texas Instruments
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Texas Instruments |
US: 522
|
$ | 680.83 | 624.094 | 624.094 | 567.358 | 567.358 | 567.358 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Microchip USA |
US: 414
|
$ | ||||||||
| Utmel Electronic |
HK: 647
|
$ | 855.527 | 807.101 | 807.101 | 761.416 | 677.6575 | 677.6575 | ||
