CC1120RHBR - Texas Instruments
High performance Sub-1 GHz wireless transceiver for narrowband systems 32-VQFN -40 to 85
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | VQFN |
| Current - Receiving | 23mA |
| Current - Transmitting | 54mA |
| Data Rate | 200kbps |
| Density | 0b |
| Frequency | 960MHz |
| Height | 1mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 960MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of GPIO | 4 |
| Number of Pins | 32 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Sensitivity (dBm) | -127dBm |
| Thickness | 900µm |
| Width | 5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

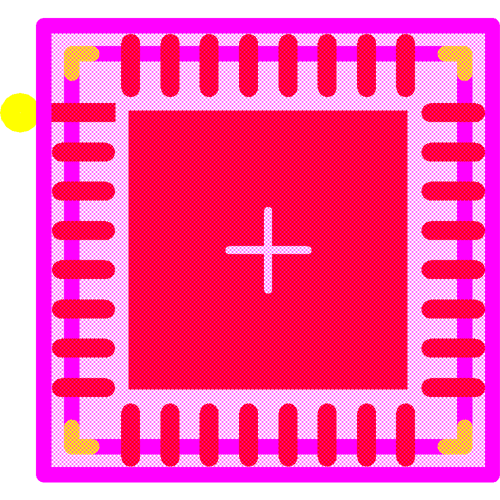

Images
