CC430F5133IRGZ - Texas Instruments
Rf Transceiver Ask/fsk/gfsk/ook/msk 2.5V/3.3V 48-PIN VQFN Ep
Technical Details
| Case/Package | VQFN |
| Contact Plating | Gold |
| Core Architecture | MSP430 |
| Current - Receiving | 18.5mA |
| Current - Transmitting | 36mA |
| Data Bus Width | 16b |
| Depth | 7mm |
| Frequency | 20MHz |
| Height | 1mm |
| Interface | 2-Wire, I2C, IrDA, SPI, UART |
| Lead Free | Lead Free |
| Length | 7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 6 |
| Number of ADC Channels | 6 |
| Number of Bits | 12 |
| Number of GPIO | 30 |
| Number of I/Os | 5 |
| Number of Pins | 48 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| RAM Size | 2kB |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensitivity (dBm) | -117dBm |
| Thickness | 900µm |
| Watchdog Timer | Yes |
| Weight | 139.989945mg |
| Width | 7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

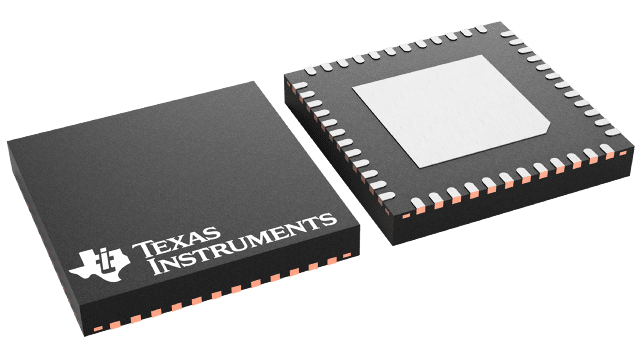

Images
