CC430F5135IRGZR - Texas Instruments
Rf Transceiver Ask/fsk/gfsk/ook/msk 2.5V/3.3V 48-PIN VQFN Ep
Technical Details
| Case/Package | VQFN |
| Core Architecture | MSP430 |
| Current - Receiving | 18.5mA |
| Current - Transmitting | 36mA |
| Data Bus Width | 16b |
| Density | 128kb |
| Frequency | 20MHz |
| Height | 1mm |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4kB |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 6 |
| Number of ADC Channels | 6 |
| Number of Bits | 12 |
| Number of GPIO | 30 |
| Number of Pins | 48 |
| Number of UART Channels | 1 |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| RAM Size | 2kB |
| RoHS | Compliant |
| Schedule B | 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000 |
| Sensitivity (dBm) | -117dBm |
| Thickness | 900µm |
| Watchdog Timer | Yes |
| Weight | 139.989945mg |
| Width | 7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

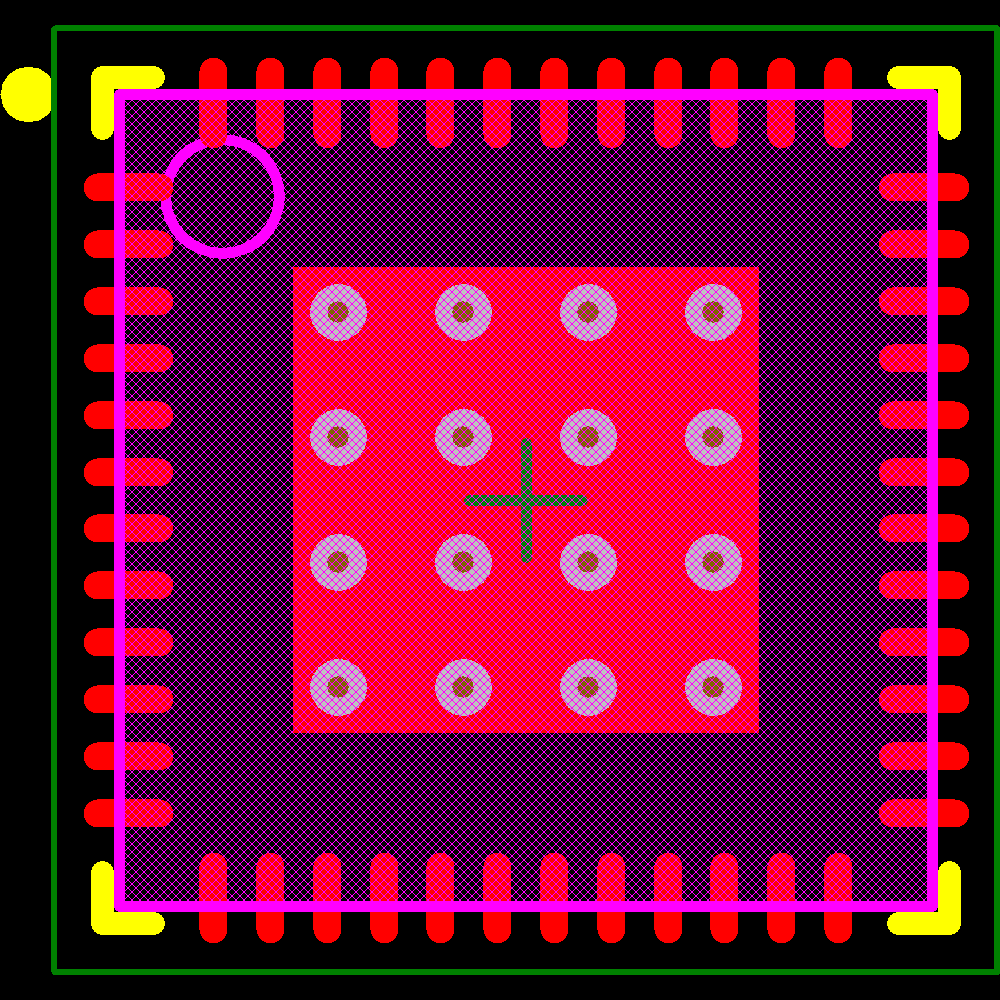

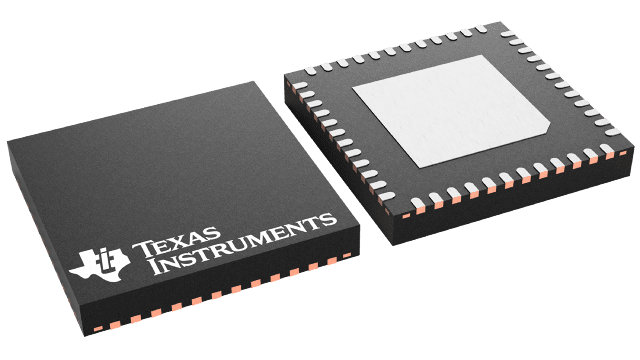

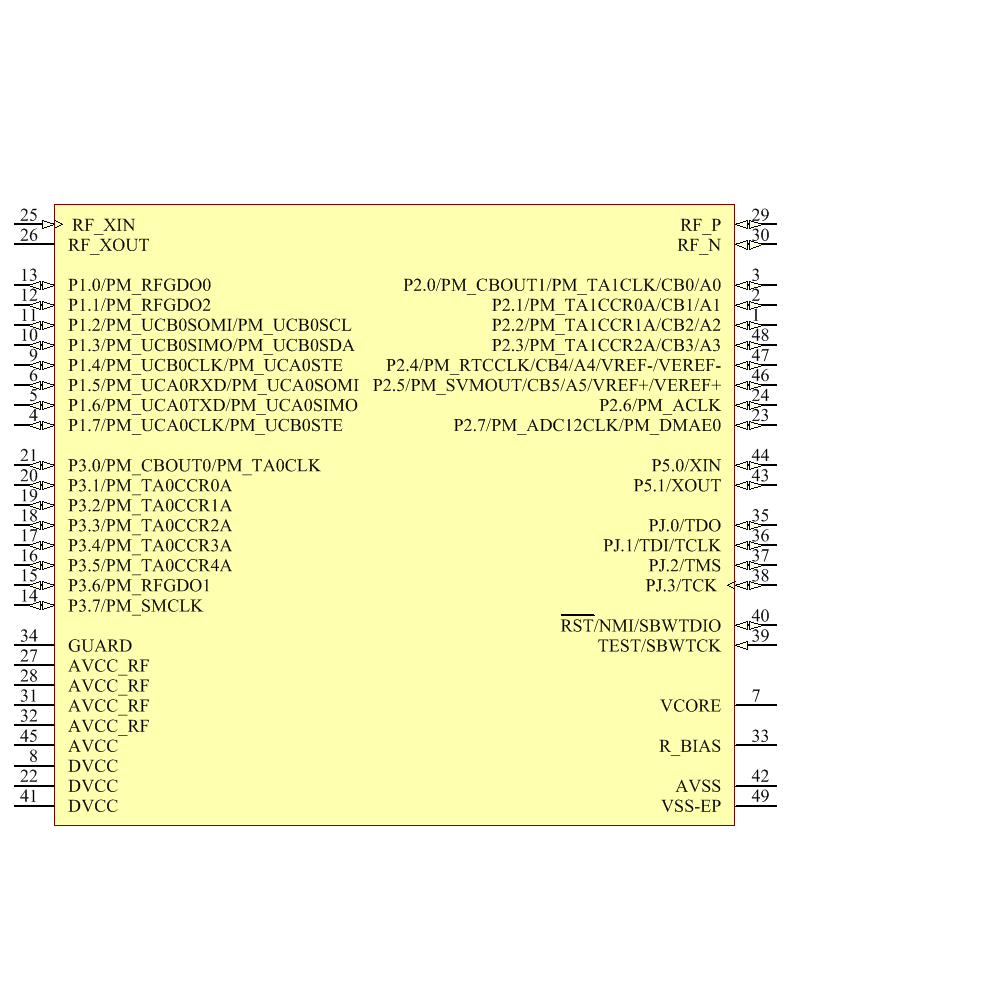

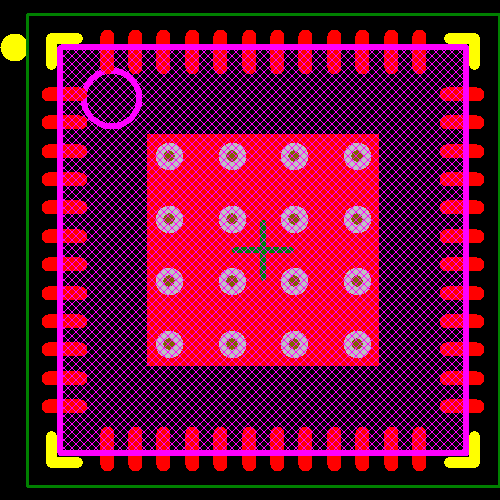

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
