CC430F6125IRGCR - Texas Instruments
Rf Transceiver Ask/fsk/gfsk/ook/msk 2.5V/3.3V 64-PIN VQFN Ep
Technical Details
| Case/Package | VQFN |
| Core Architecture | RISC |
| Current - Receiving | 18.5mA |
| Current - Transmitting | 36mA |
| Data Bus Width | 16b |
| Density | 128kb |
| Frequency | 20MHz |
| Height | 1mm |
| Interface | I2C, IrDA, SPI, UART |
| Lead Free | Lead Free |
| Length | 9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2kB |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 44 |
| Number of Pins | 64 |
| Number of UART Channels | 1 |
| Packaging | Cut Tape (CT) |
| Radiation Hardening | No |
| RAM Size | 2kB |
| RoHS | Compliant |
| Sensitivity (dBm) | -117dBm |
| Thickness | 880µm |
| Watchdog Timer | Yes |
| Width | 9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

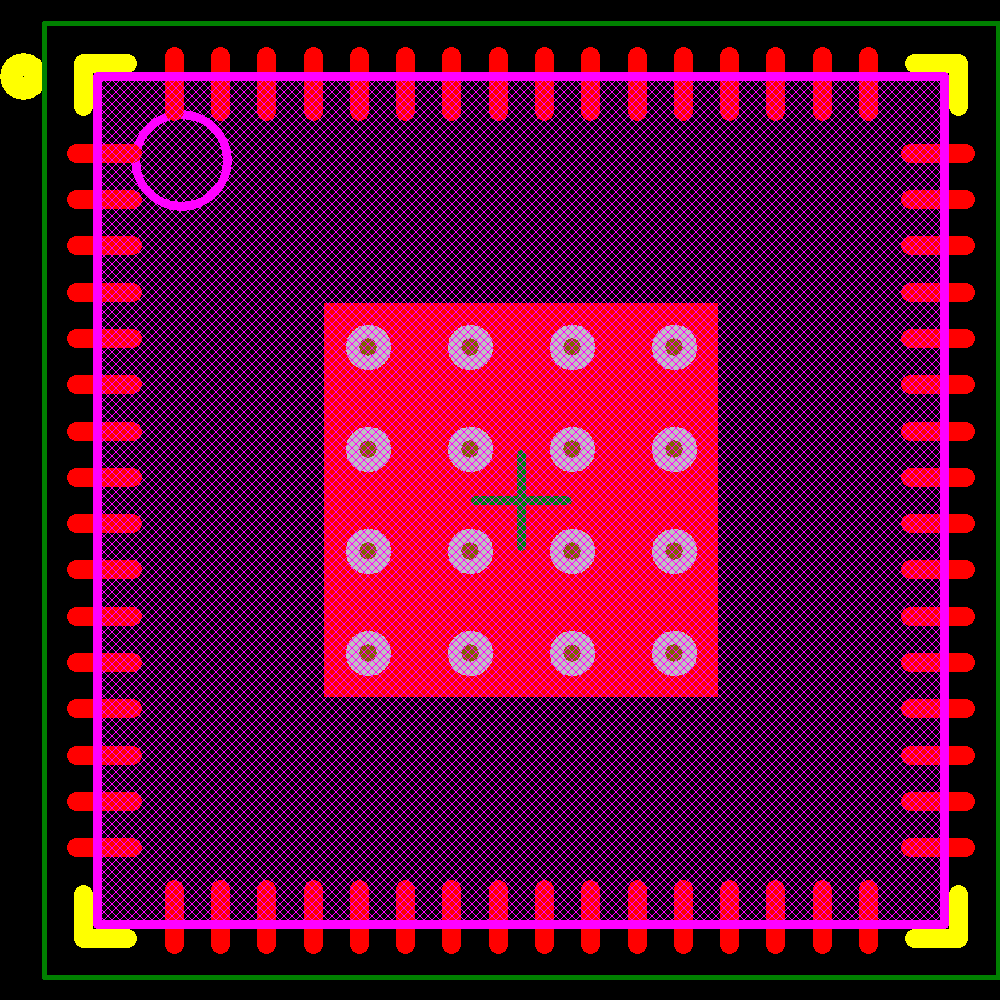

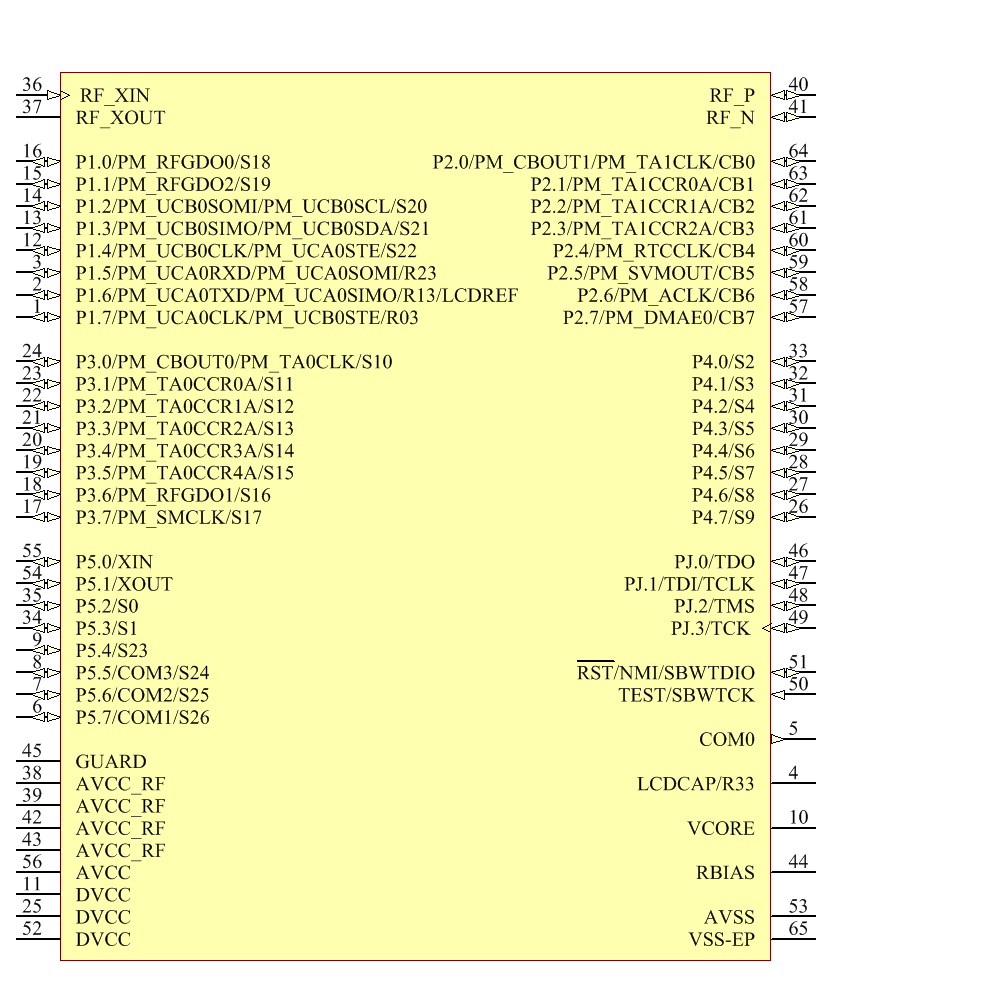

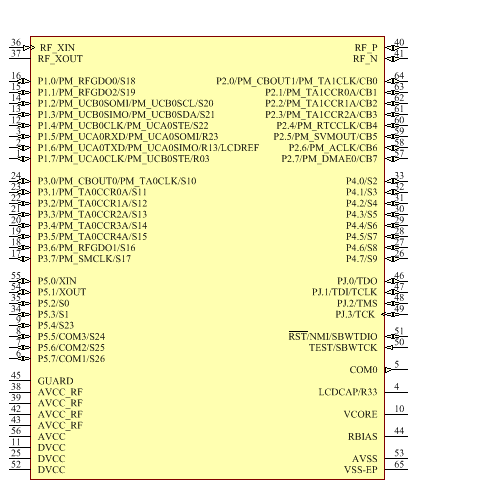

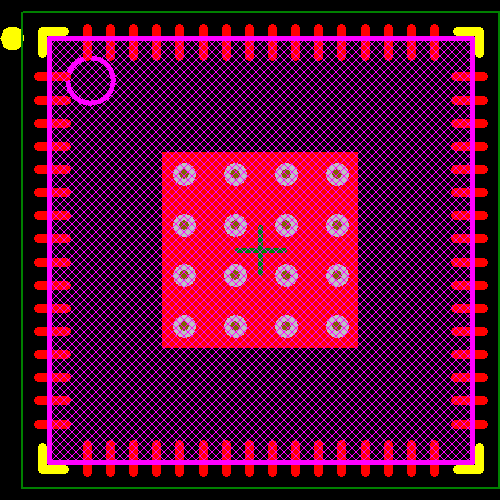

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 3.5221 | |||||||
| Arrow Electronics |
US: 0
|
$ | 2.943 | |||||||
| Texas Instruments |
US: 17233
|
$ | 4.004 | 4.004 | 4.004 | 3.264 | 2.176 | 2.176 | ||
