CD40106BNSR - Texas Instruments
IC INVERT SCHMITT 6CH 1-INP 14SO Inverter IC 6 Channel Schmitt Trigger 14-SO
Technical Details
| Case/Package | SOP |
| Contact Plating | Gold |
| Height | 2mm |
| High Level Output Current | -4.2mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Logic Function | Buffer, Inverter, Schmitt Trigger |
| Low Level Output Current | 4.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Inputs | 1 |
| Number of Outputs | 6 |
| Number of Pins | 14 |
| Operating Supply Voltage | 15V |
| Output Current | 6.8mA |
| Packaging | Digi-Reel® |
| Propagation Delay | 280ns |
| Quiescent Current | 20µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1.95mm |
| Turn-On Delay Time | 280ns |
| Weight | 208.312296mg |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

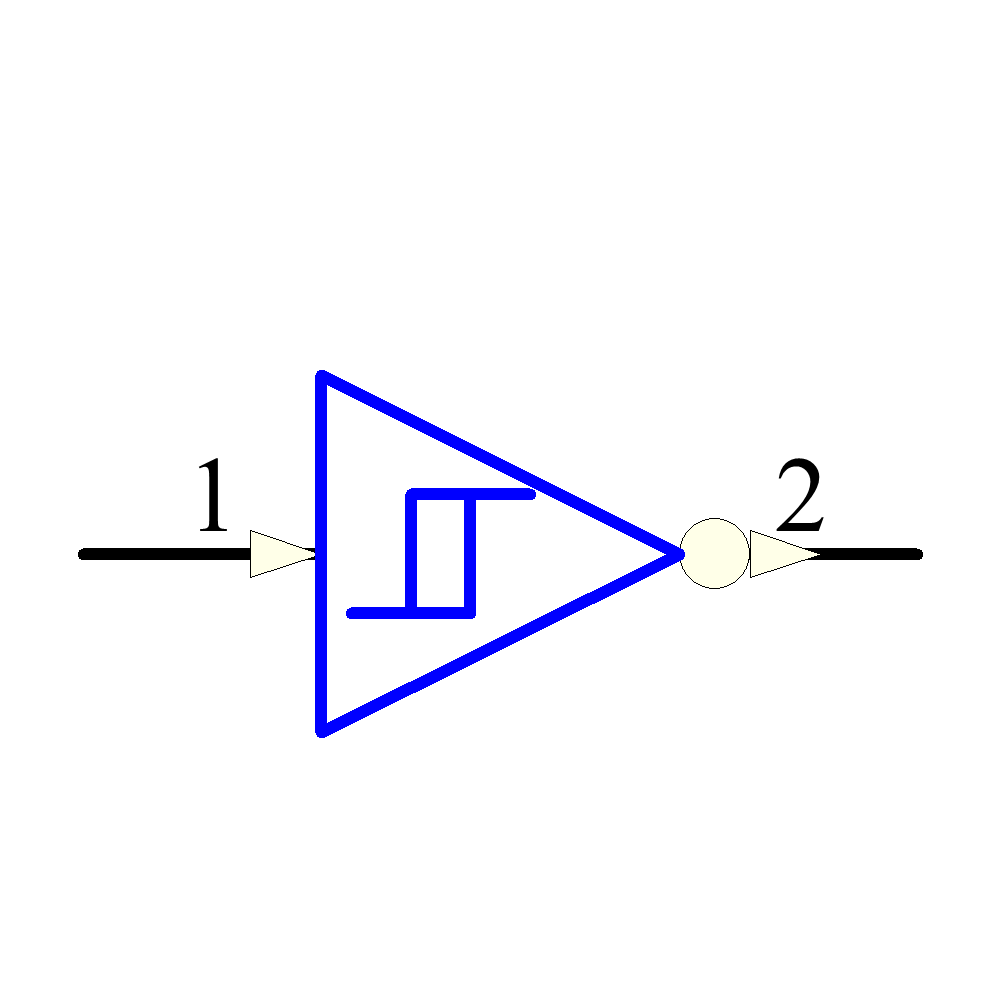

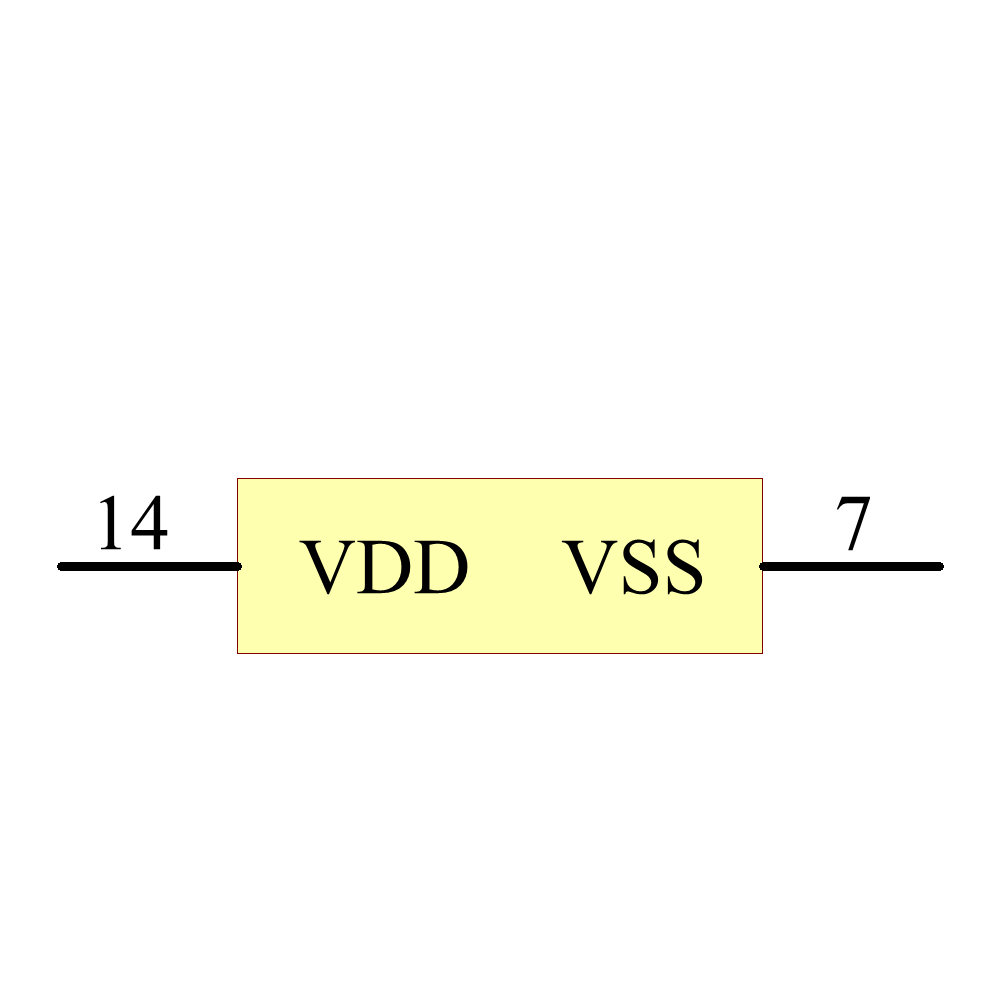

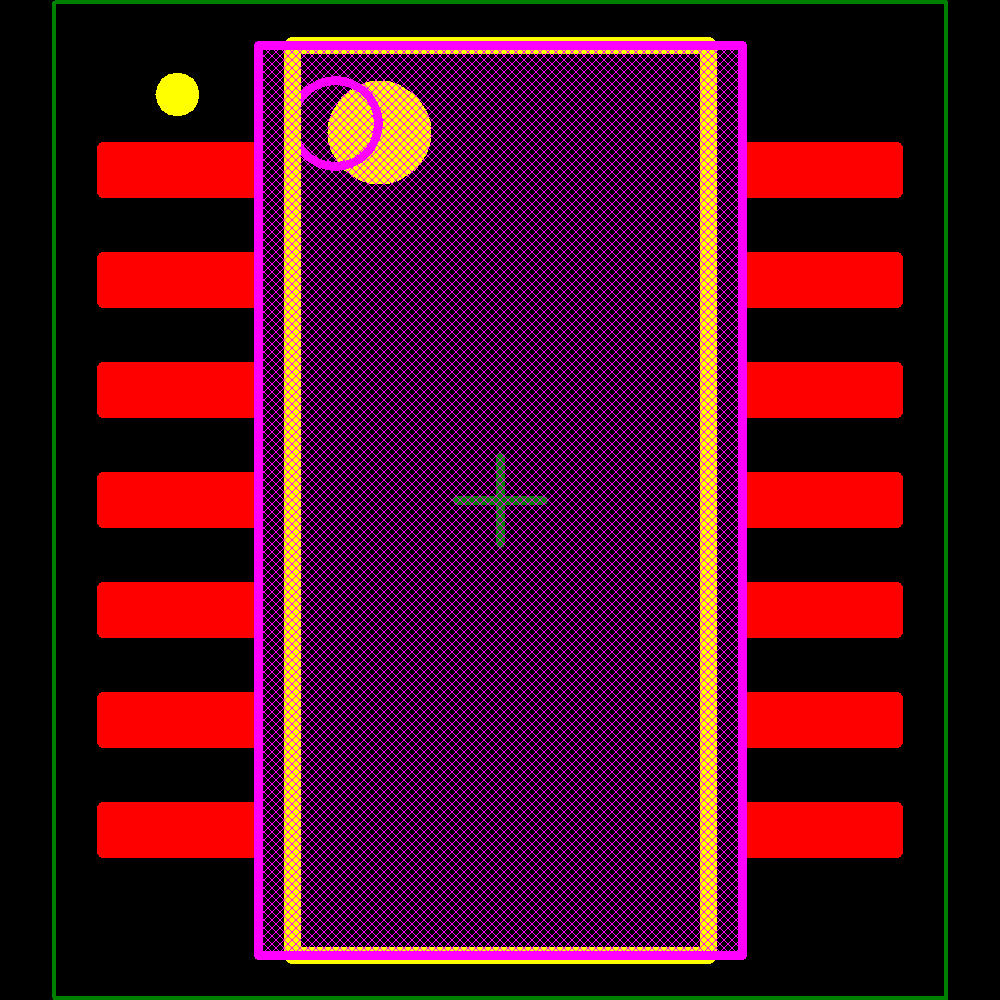

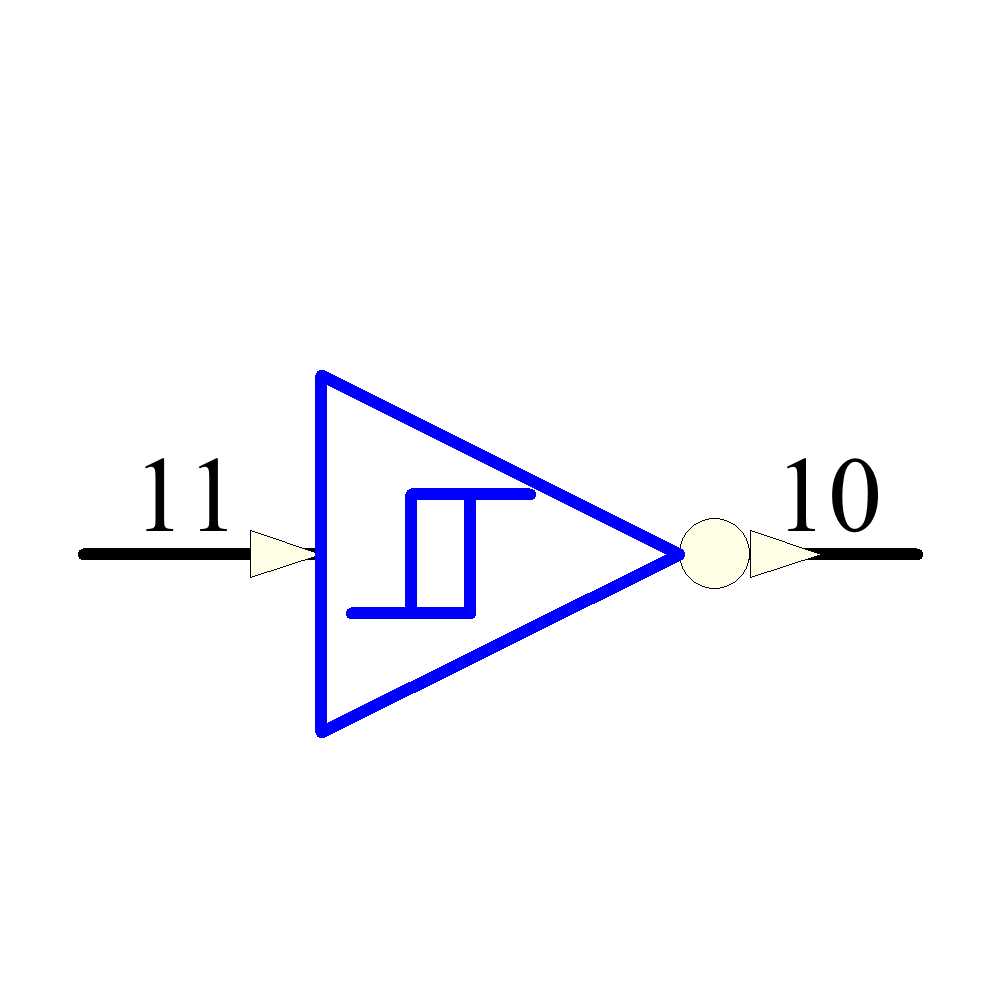

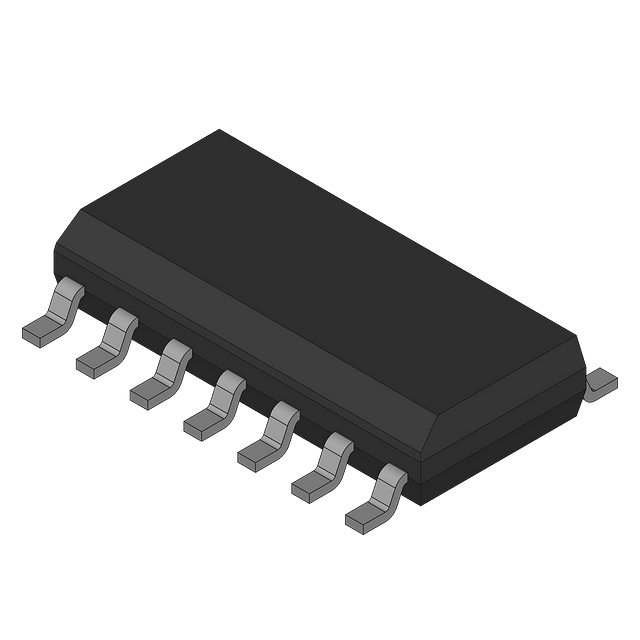

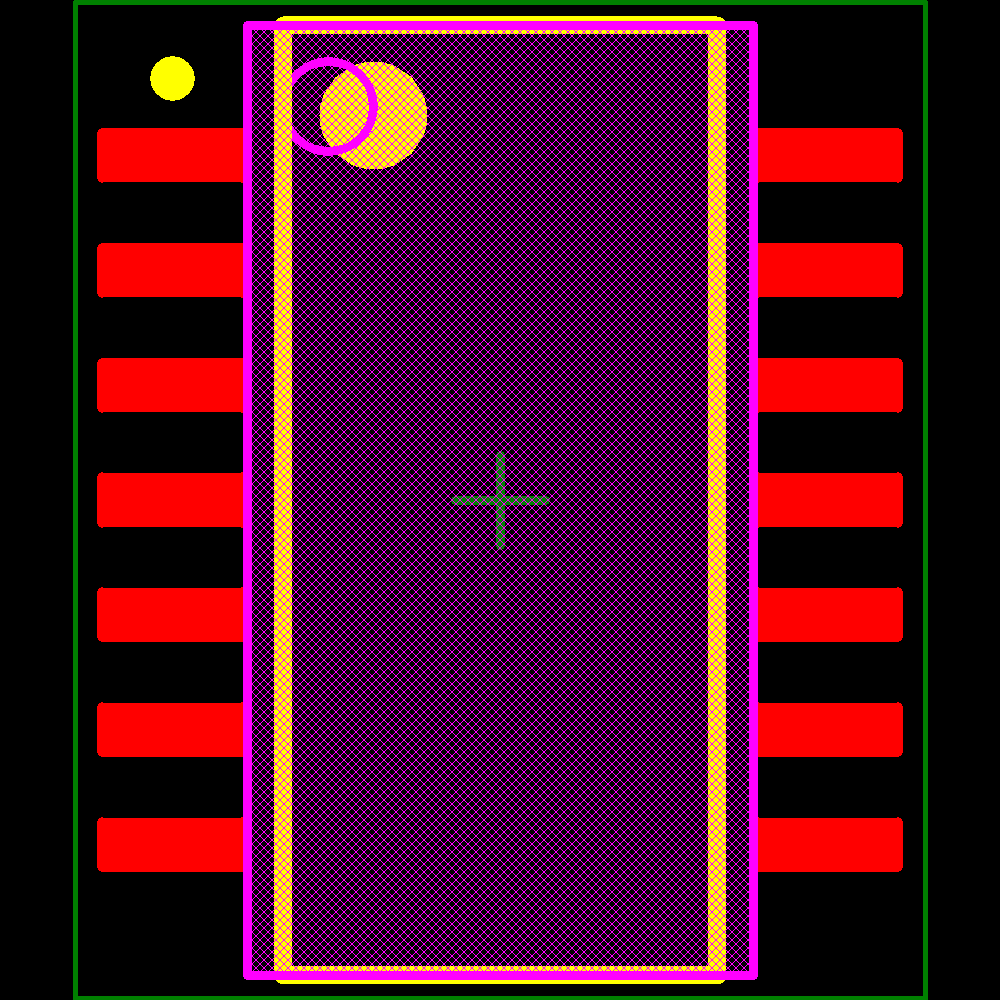

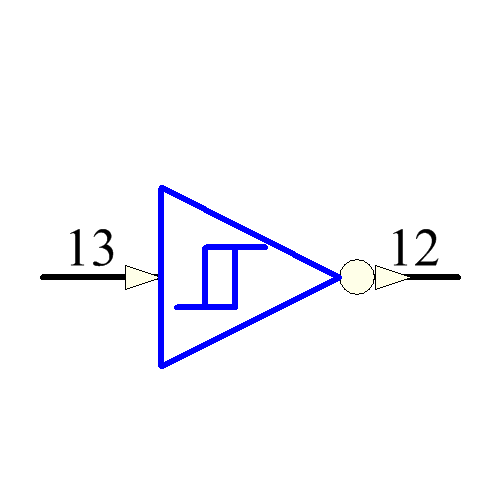

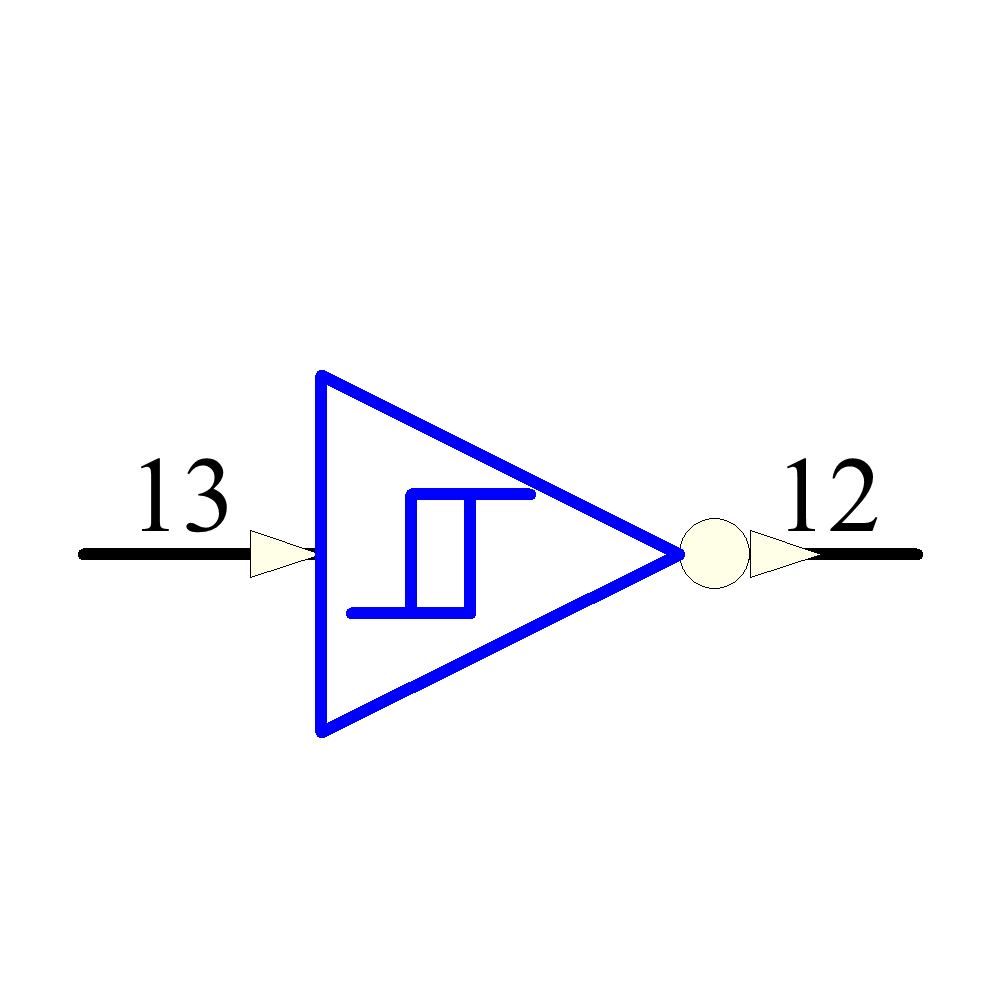

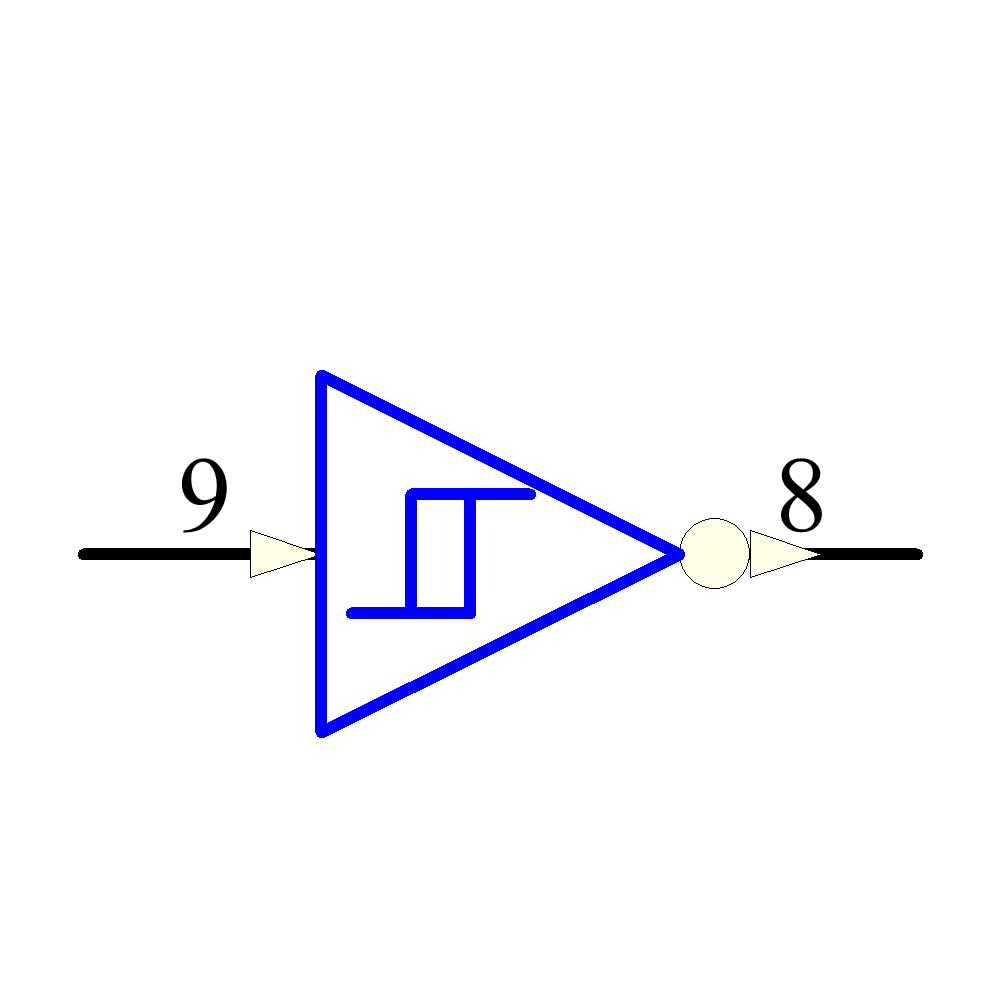

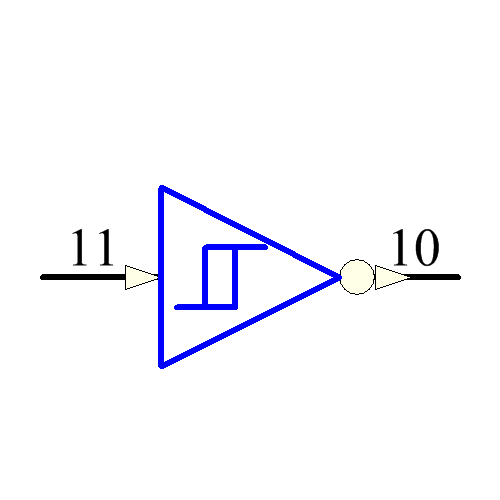

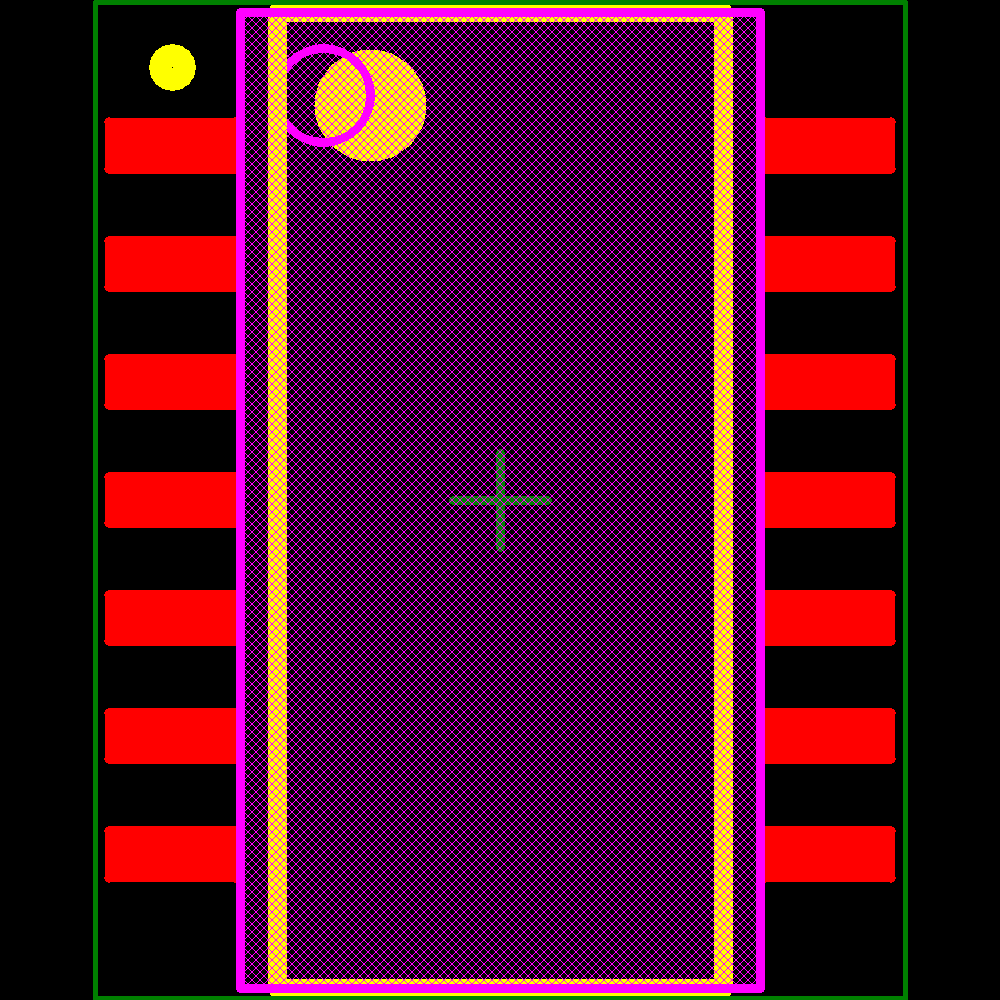

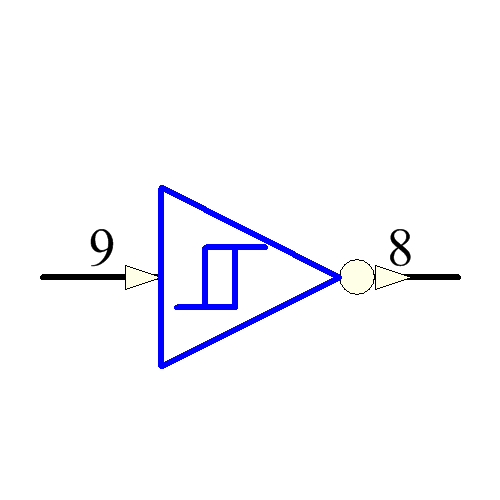

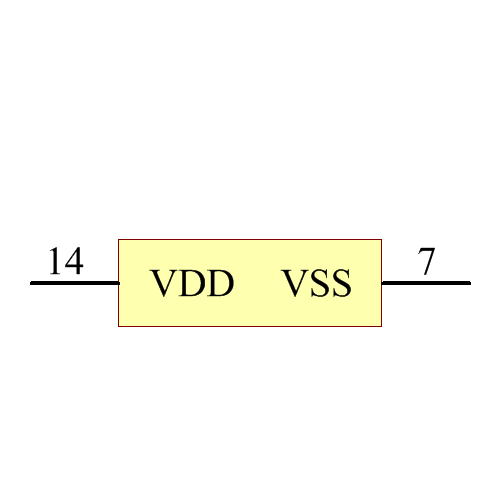

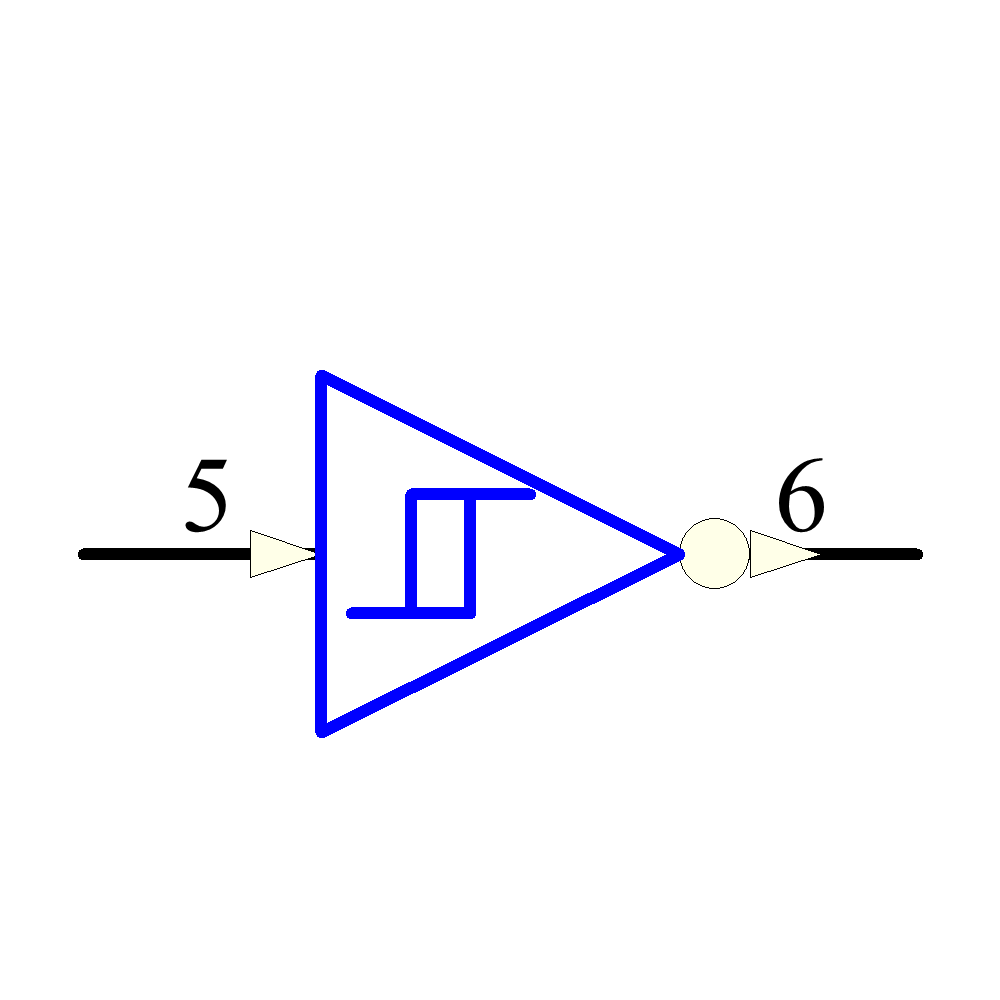

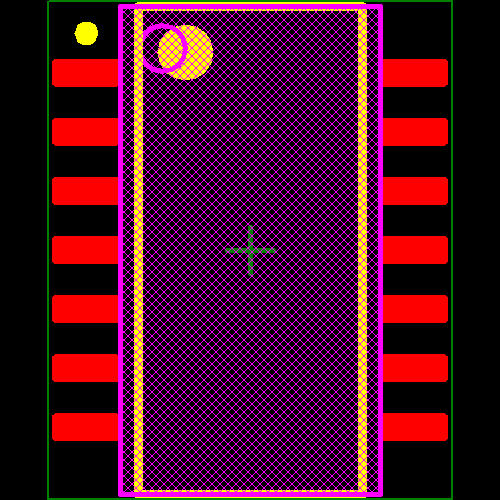

Images
