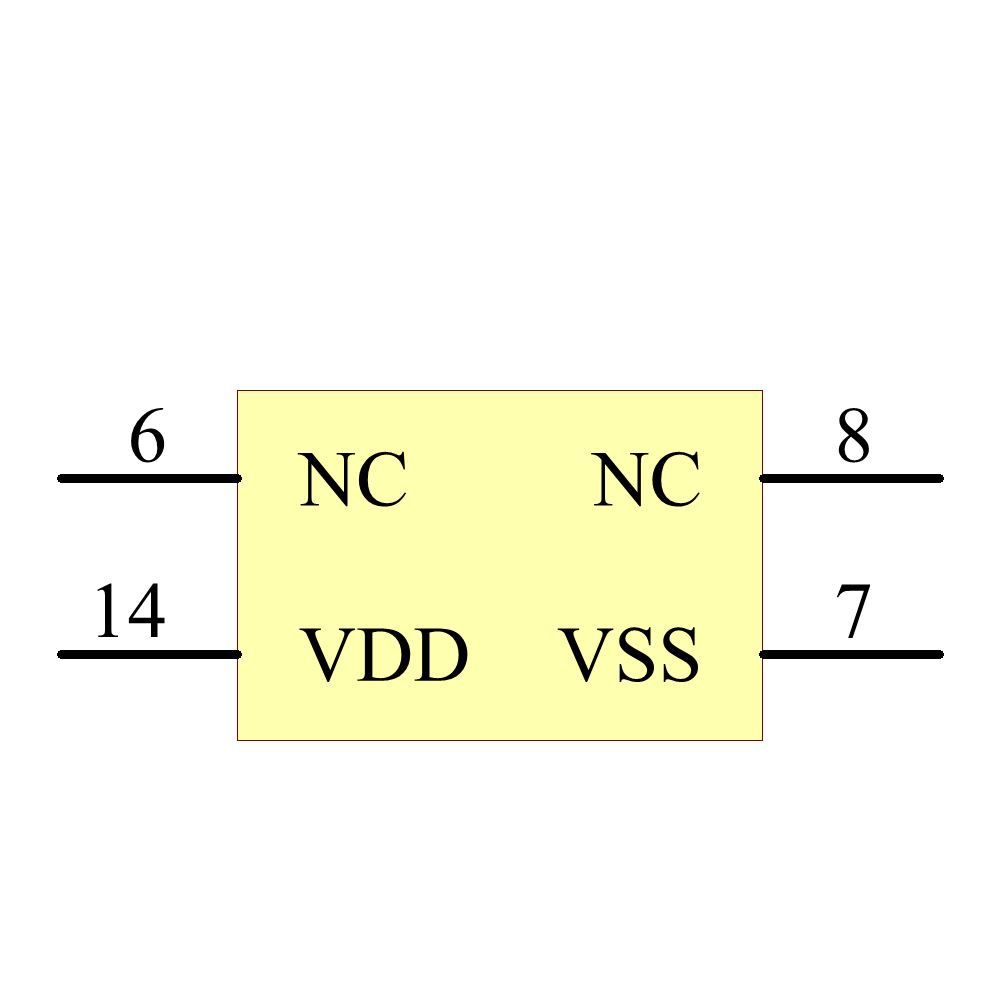

CD4012BNSR - Texas Instruments
NAND CD4012 EAR99 4000B logic gate circuit 90ns @ 15V 50pF 2mm 3.4mA 3.4mA 3.5V-11V
Technical Details
| Case/Package | SOP |
| Contact Plating | Gold |
| Height | 2mm |
| High Level Output Current | 3.4mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Logic Function | NAND |
| Low Level Output Current | 3.4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 6.8mA |
| Packaging | Tape & Reel (TR) |
| Propagation Delay | 90ns |
| Quiescent Current | 1µA |
| RoHS | Compliant |
| Thickness | 1.95mm |
| Turn-On Delay Time | 250ns |
| Weight | 208.312296mg |
| Width | 5.3mm |
