CD4025BM96 - Texas Instruments
NOR CD4025 EAR99 4000B logic gate circuit 90ns @ 15V 50pF 1.75mm 3.4mA 3.4mA 3.5V-11V
Technical Details
| Case/Package | SOIC |
| Contact Plating | Gold |
| Height | 0m |
| High Level Output Current | -4.2mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Logic Function | NOR |
| Low Level Output Current | 4.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 3 |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 6.8mA |
| Propagation Delay | 90ns |
| Quiescent Current | 5µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.58mm |
| Turn-On Delay Time | 90ns |
| Weight | 129.387224mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

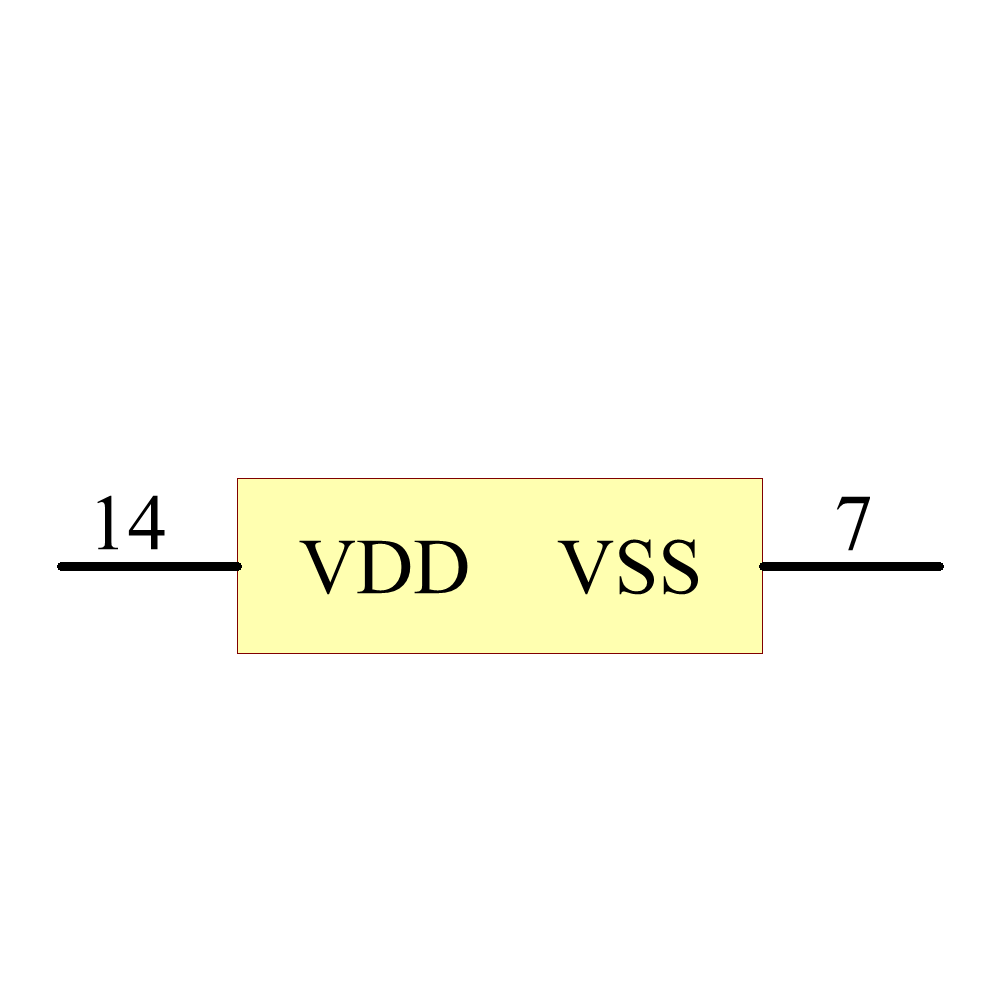

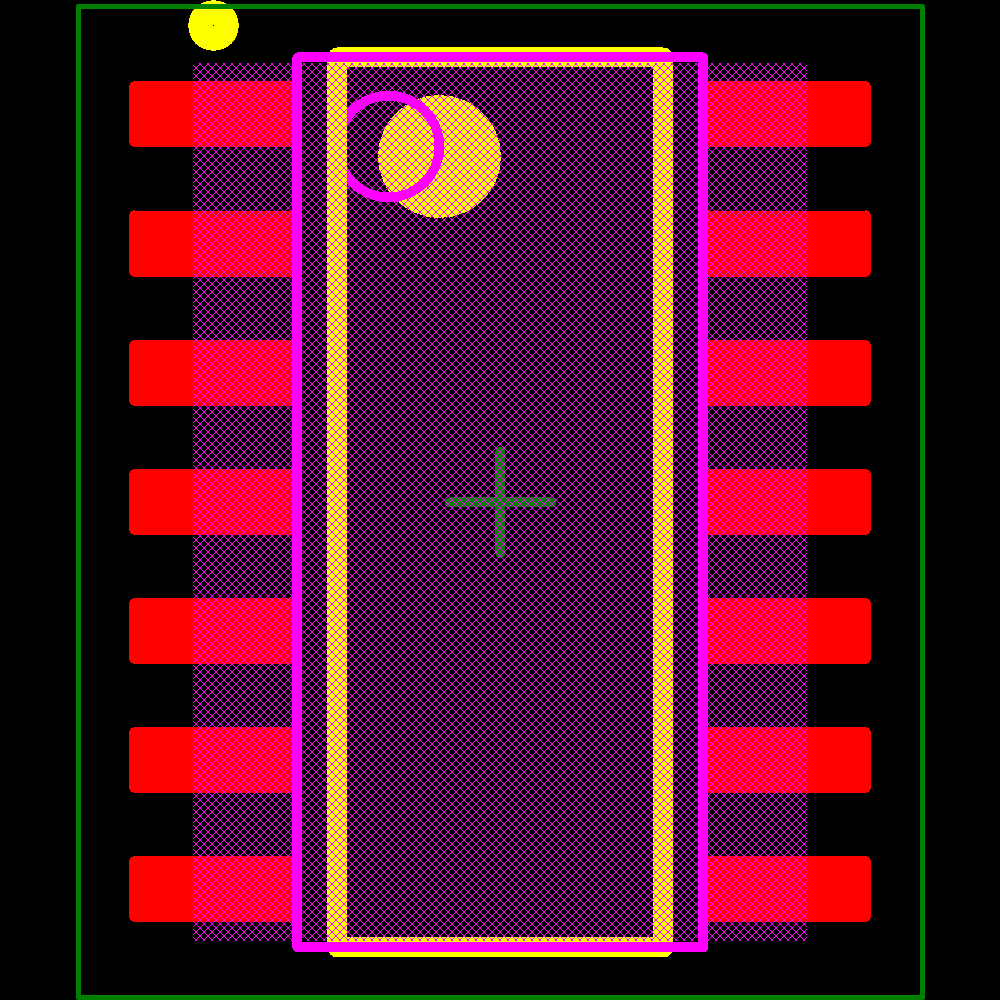

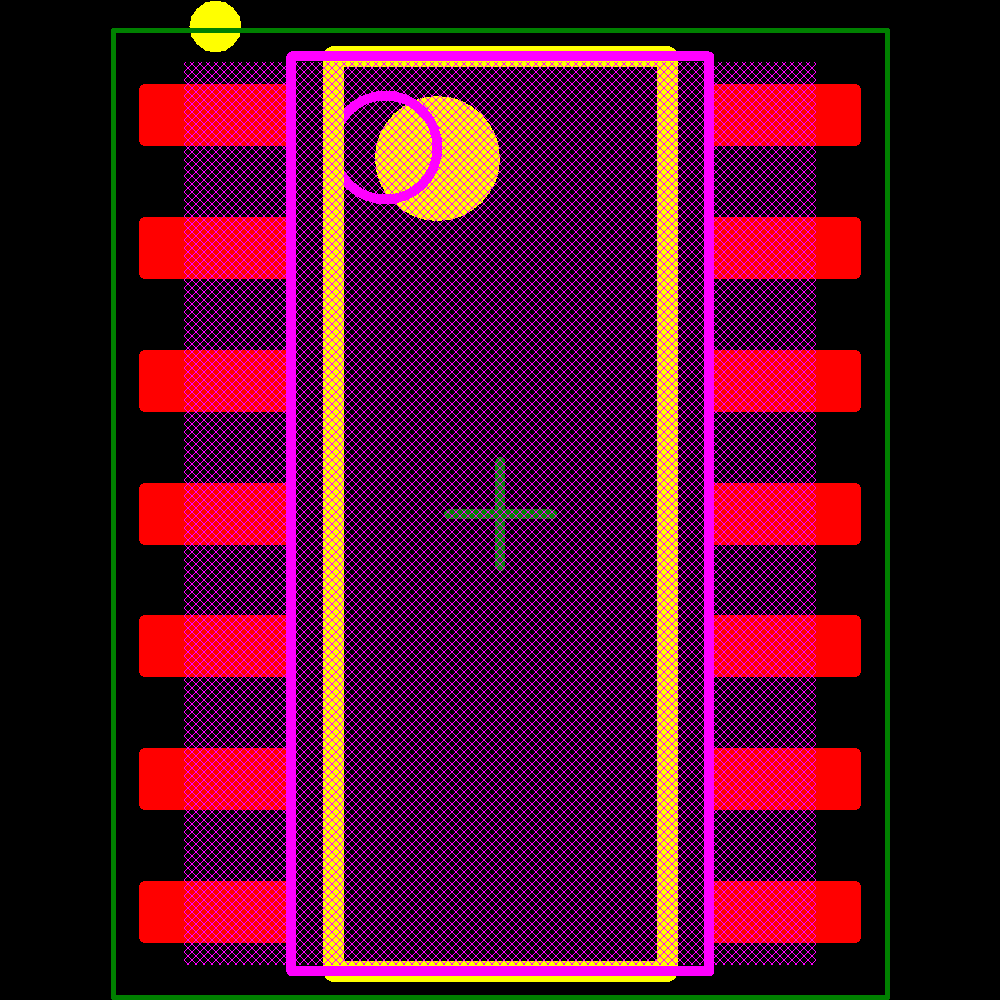

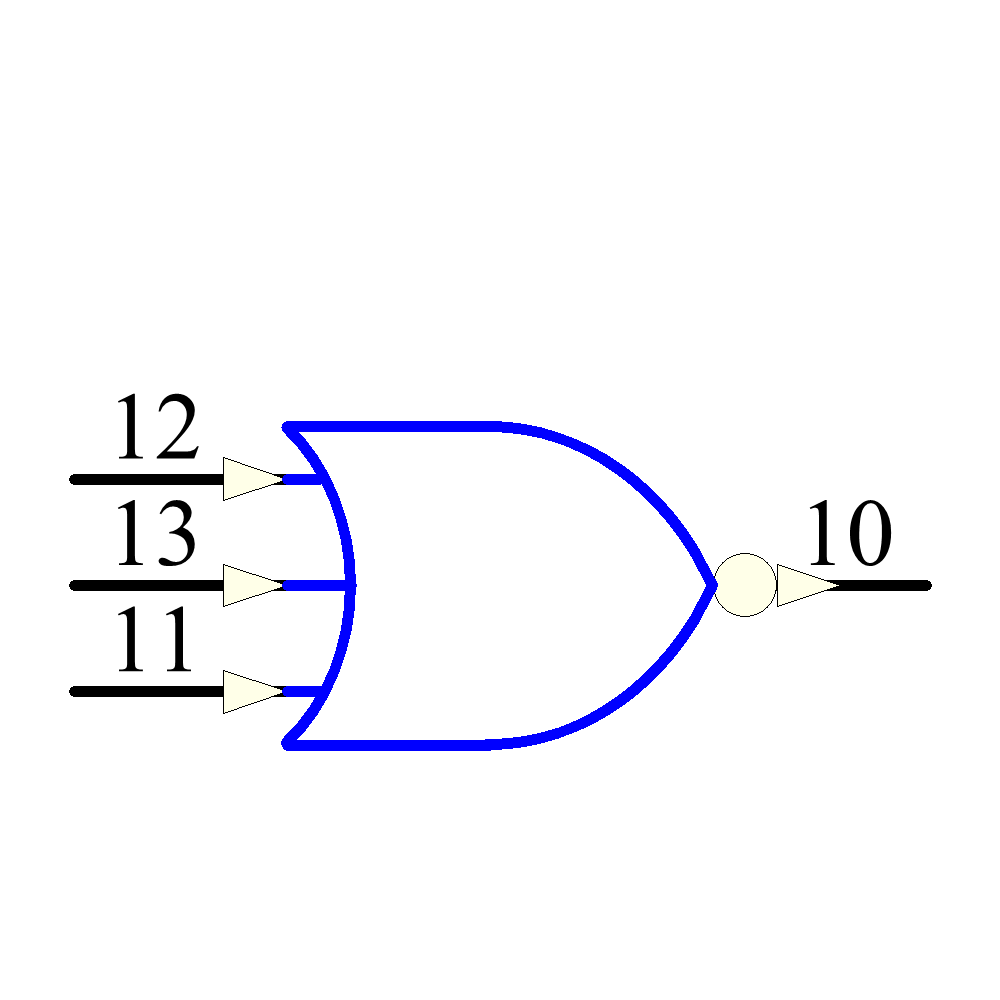

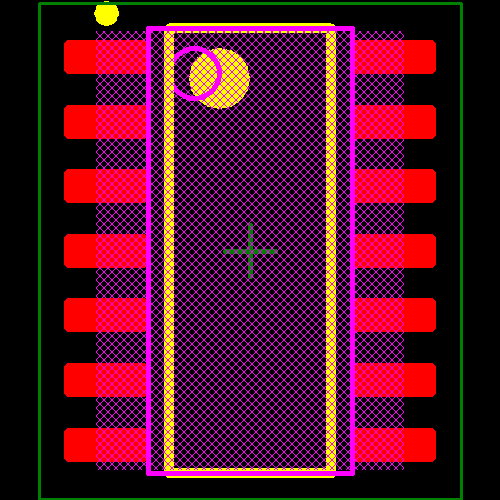

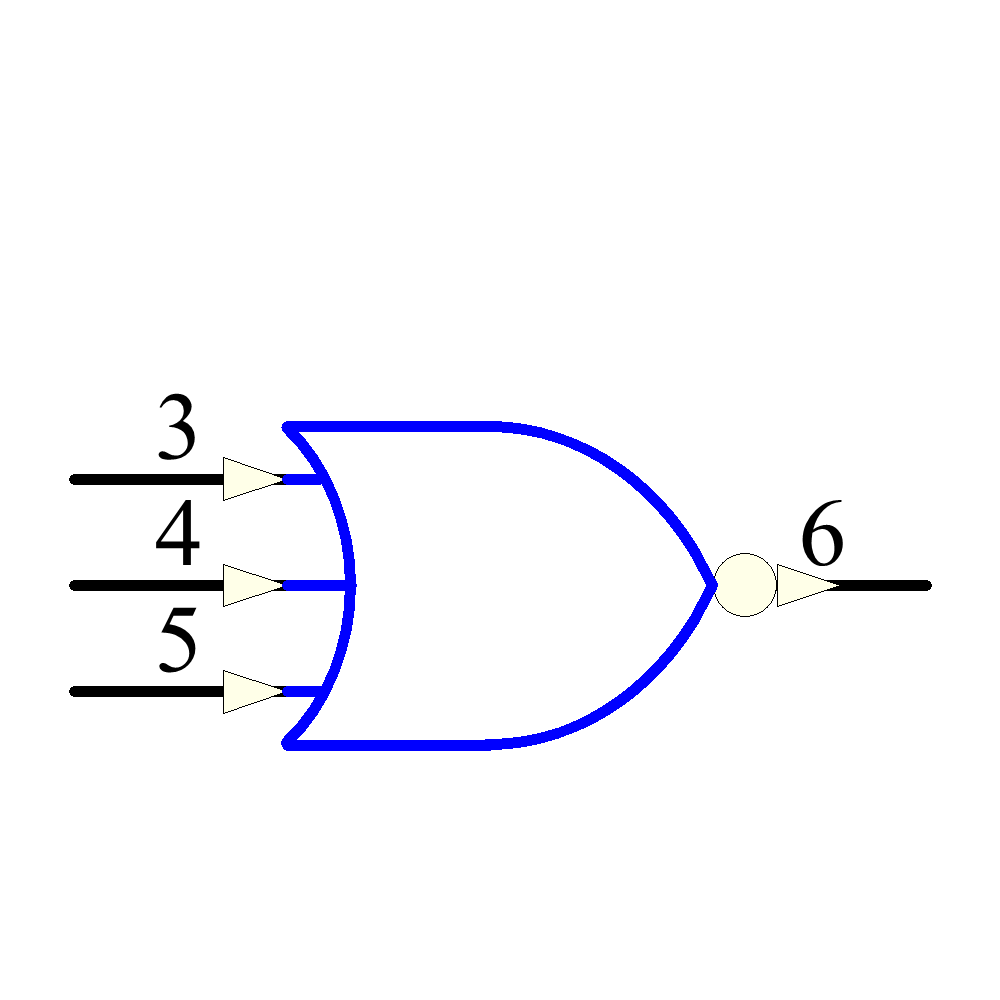

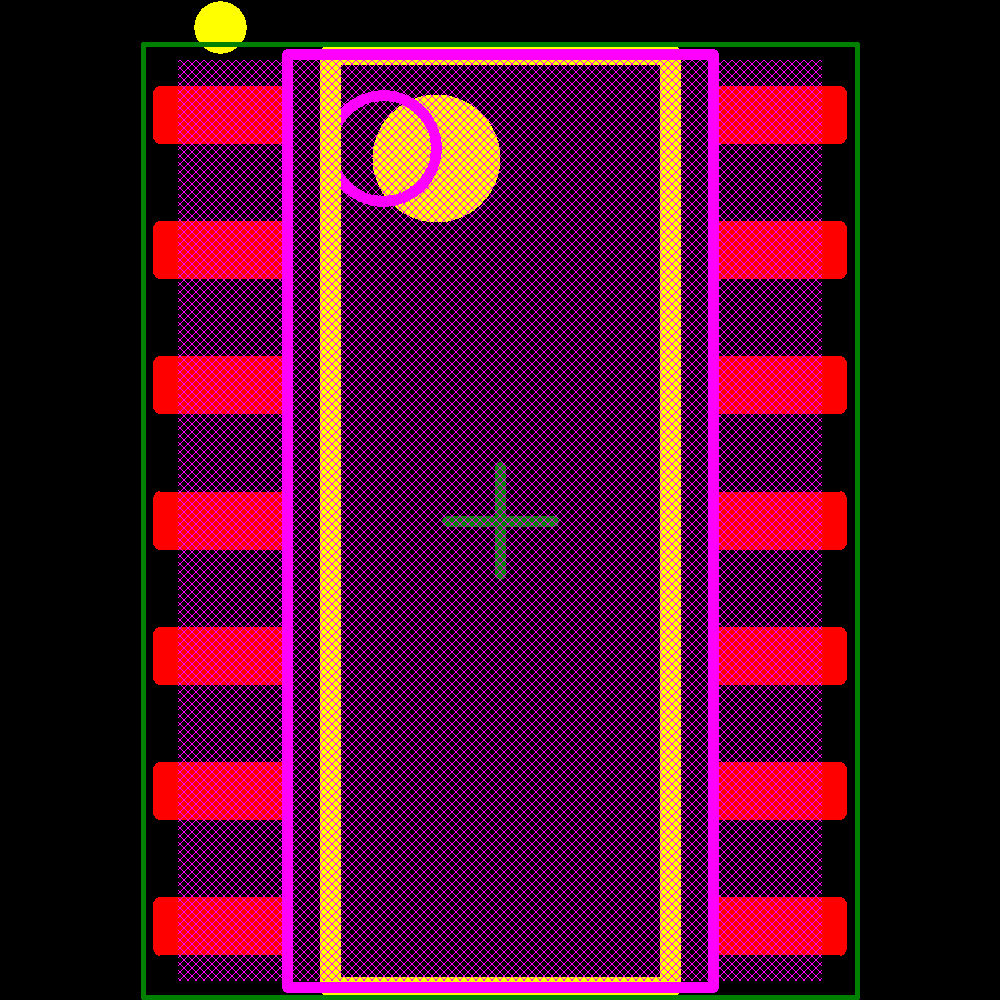

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Obsolete | ||
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Production | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Toshiba | Obsolete | ||
| Texas Instruments | Unknown |
