CD4030BF - Texas Instruments
Military Quadruple 2-input 3-V to 18-V XOR (exclusive OR) gates 14-CDIP -55 to 125
Technical Details
| Case/Package | CDIP |
| Contact Plating | Lead, Tin |
| Height | 5.08mm |
| High Level Output Current | -4.2mA |
| Lead Free | Contains Lead |
| Length | 19.56mm |
| Lifecycle Status | Production |
| Logic Function | XOR |
| Low Level Output Current | 4.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Type | CMOS |
| Packaging | Rail/Tube |
| Propagation Delay | 100ns |
| Quiescent Current | 5µA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 4.57mm |
| Turn-On Delay Time | 100ns |
| Width | 6.67mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

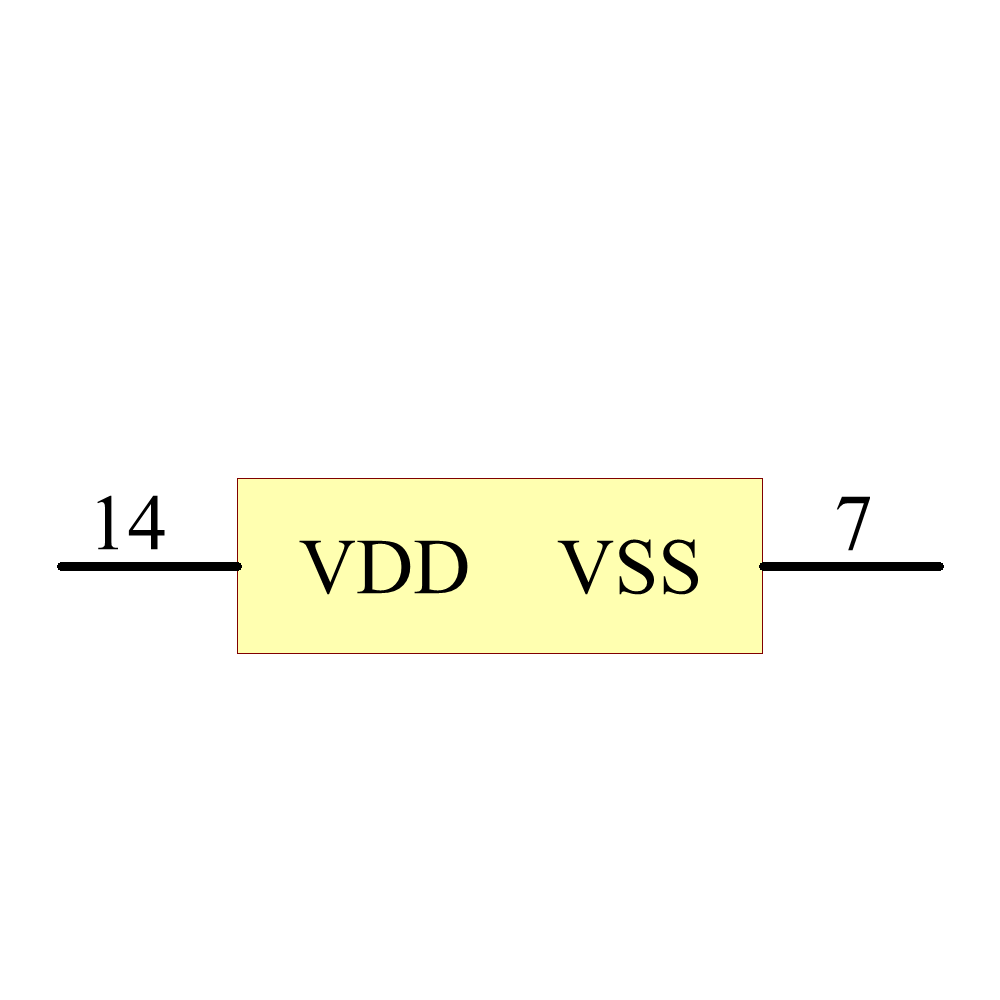

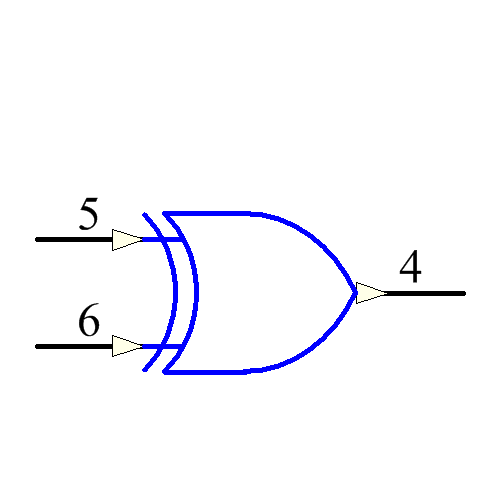

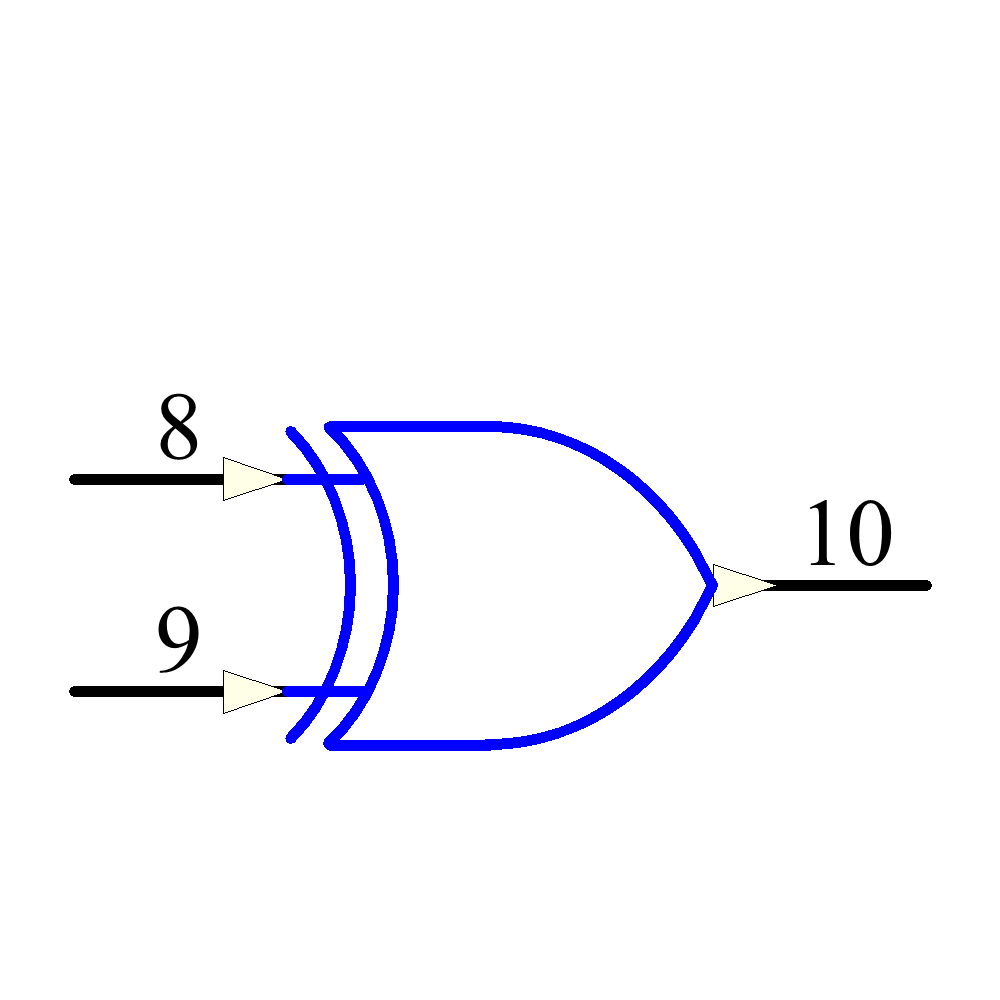

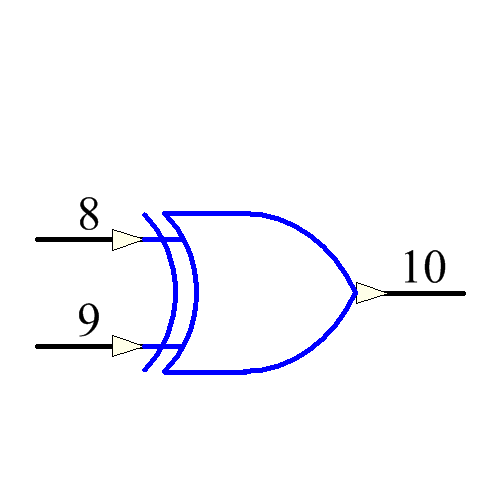

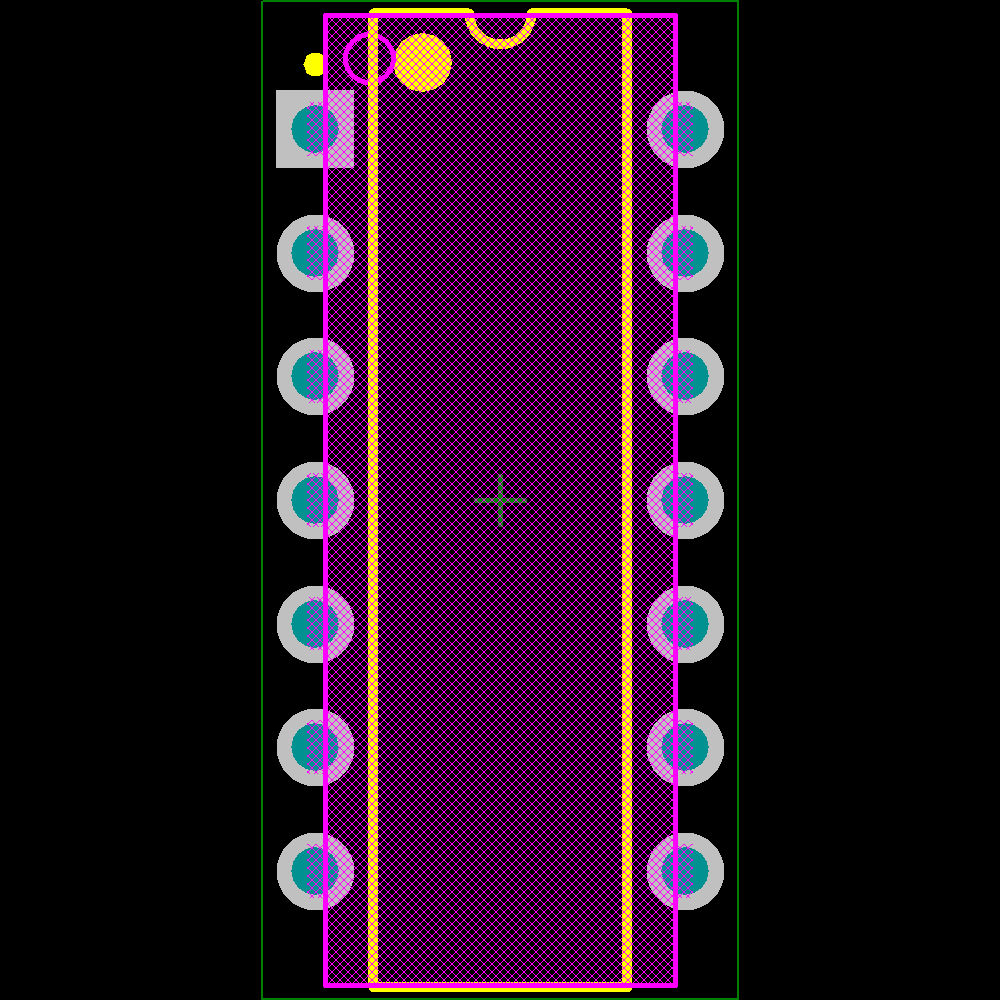

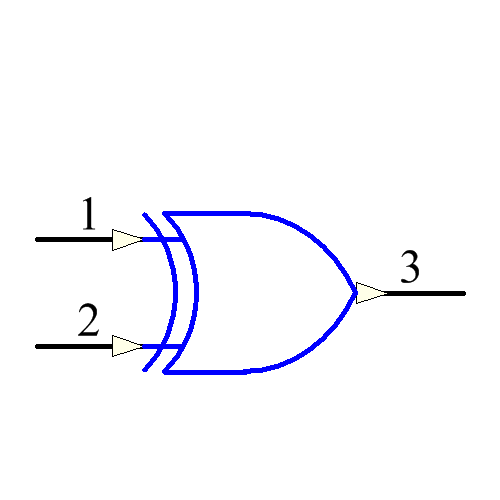

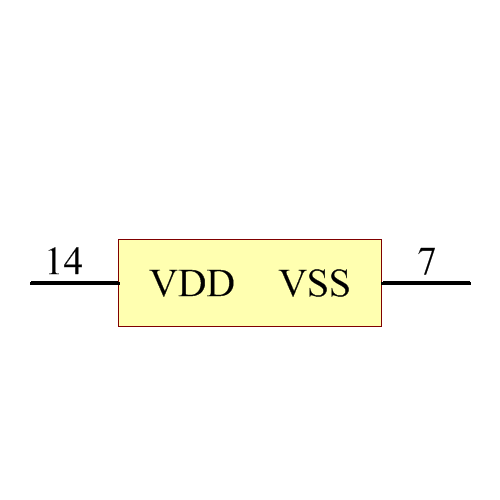

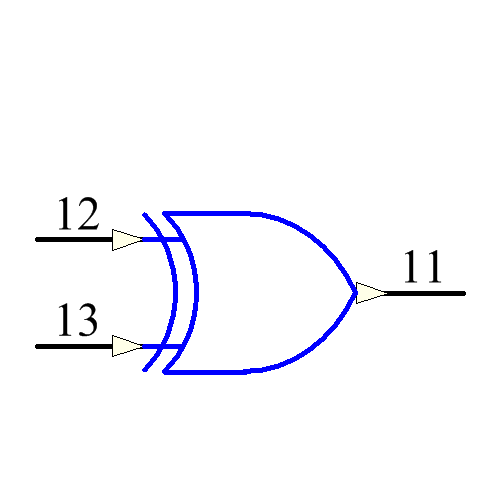

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| Toshiba | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Harris | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete |
