CD4070BE - Texas Instruments
IC GATE XOR 4CH 2-INP 14-DIP / XOR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube
Technical Details
| Ambient Temperature Range High | 125°C |
| Case/Package | PDIP |
| Contact Plating | Gold |
| Height | 5.08mm |
| High Level Output Current | -4.2mA |
| Input Capacitance | 5pF |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | XOR |
| Low Level Output Current | 4.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 6.8mA |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 6.8mA |
| Propagation Delay | 100ns |
| Quiescent Current | 5µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Schmitt Trigger Input | No |
| Termination | Through Hole |
| Thickness | 3.9mm |
| Turn-On Delay Time | 100ns |
| Weight | 927.99329mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

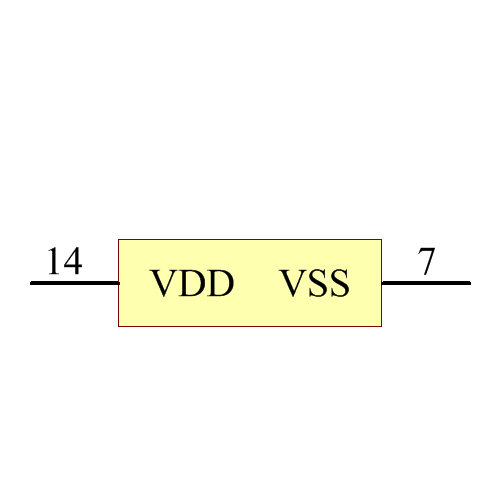

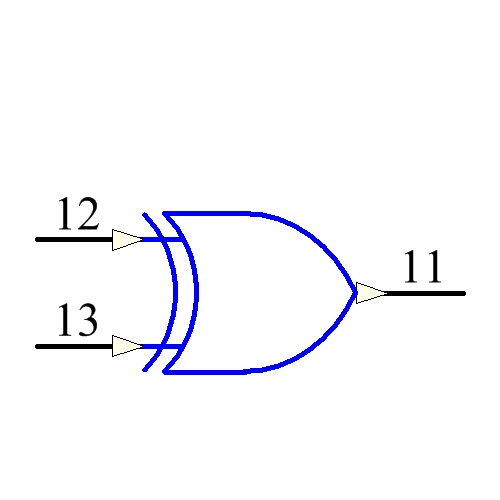

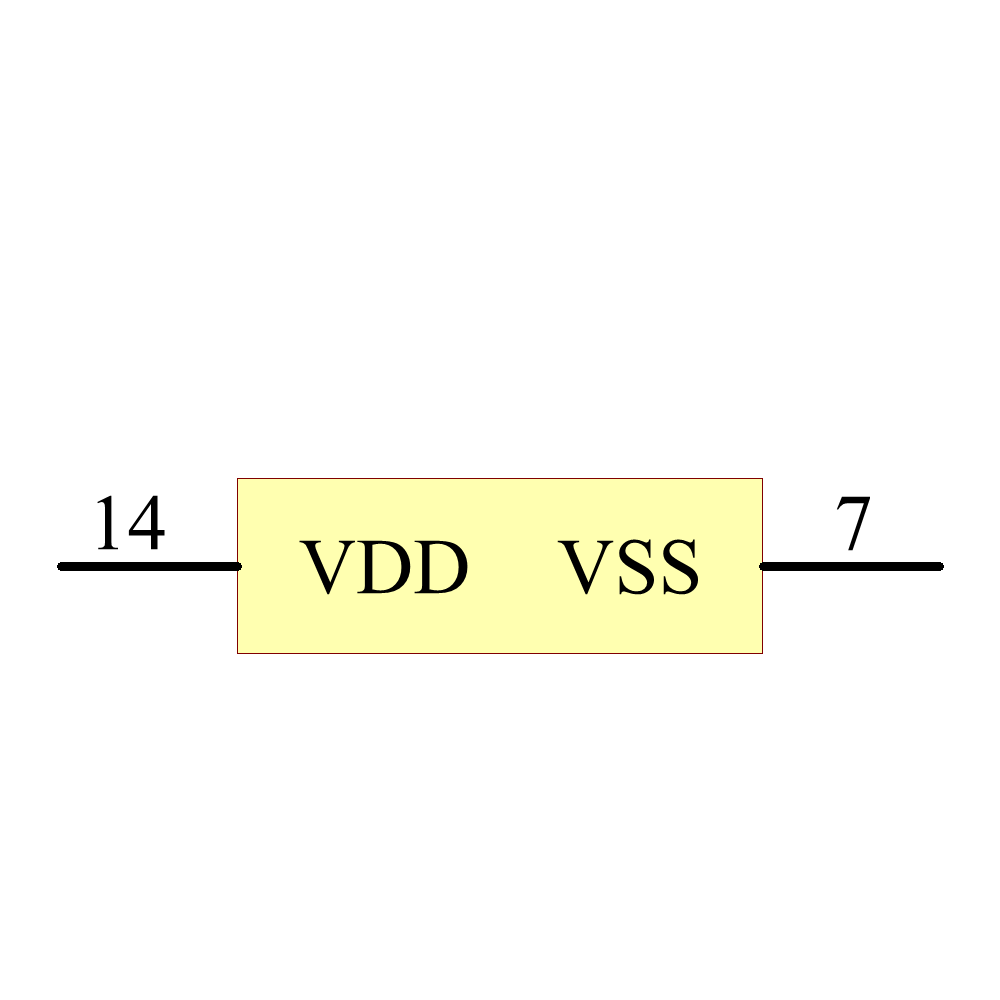

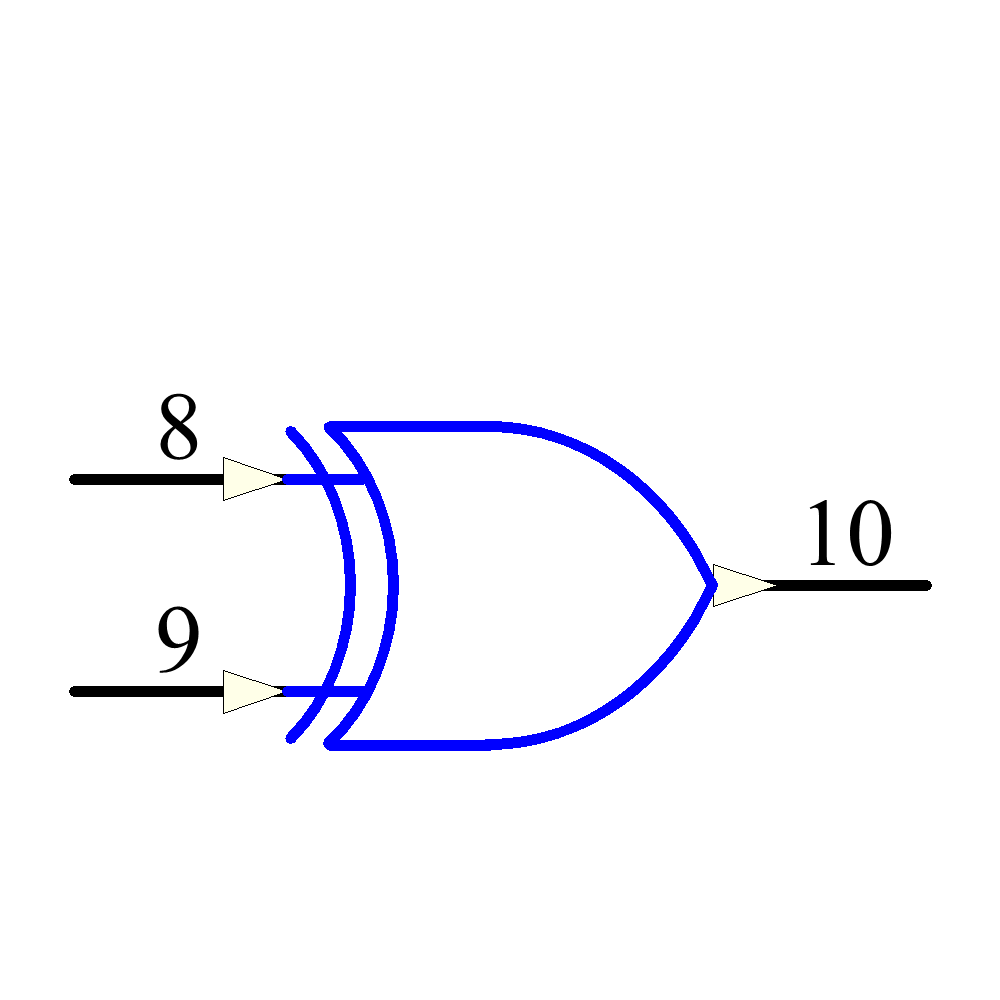

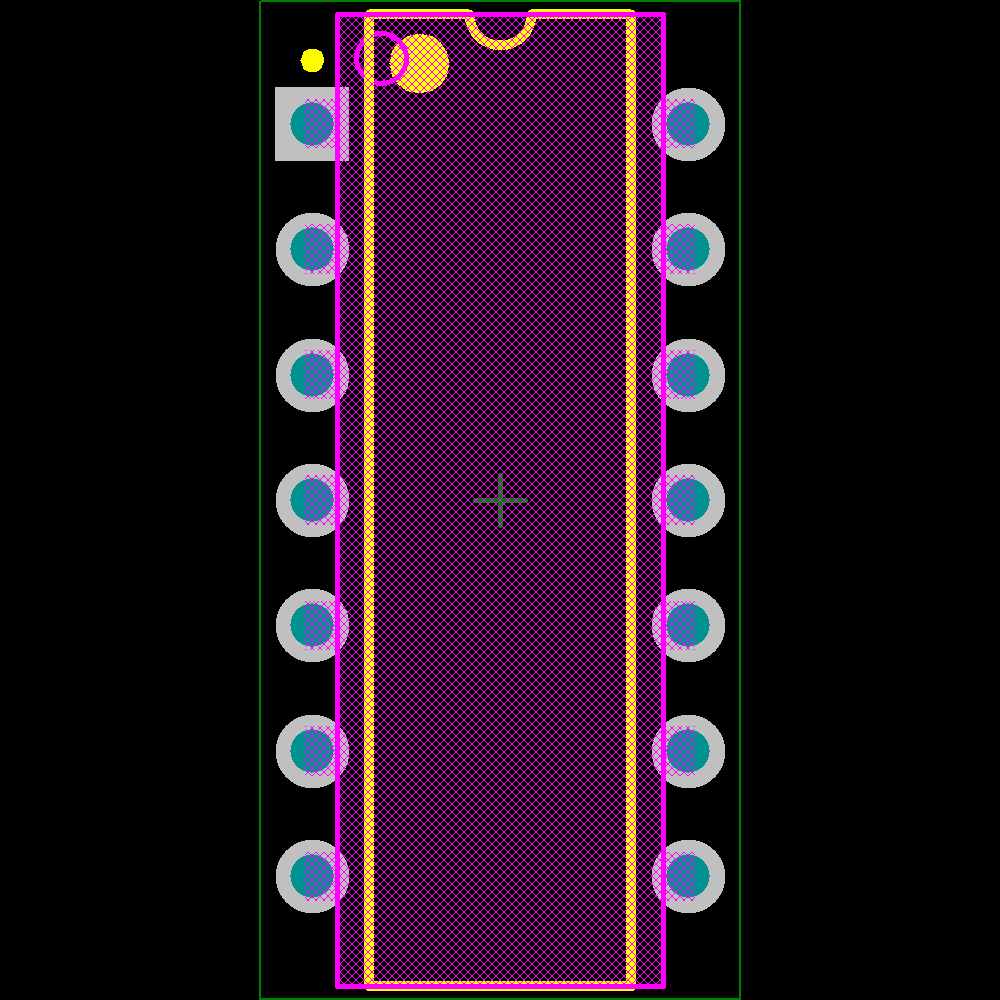

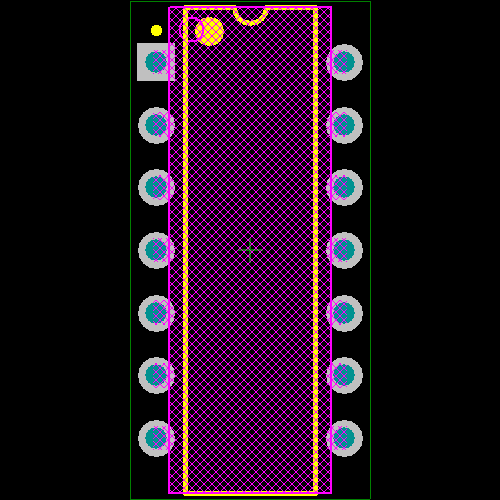

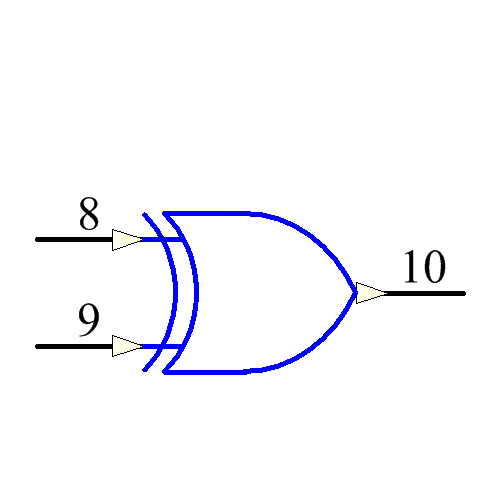

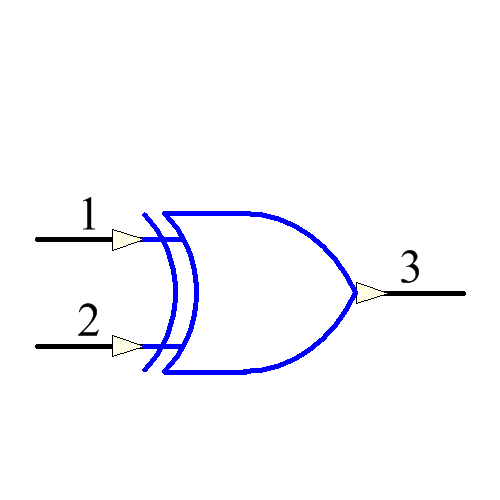

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| Toshiba | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Harris | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete |
