CD4070BNSR - Texas Instruments
OR XOR CD4070 EAR99 4000B logic gate circuit 100ns @ 15V 50pF 2mm 3.4mA 3.4mA 3.5V-11V
Technical Details
| Case/Package | SOP |
| Contact Plating | Gold |
| Height | 2mm |
| High Level Output Current | 3.4mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Logic Function | OR, XOR |
| Low Level Output Current | 3.4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 6.8mA |
| Packaging | Digi-Reel® |
| Propagation Delay | 100ns |
| Quiescent Current | 5µA |
| RoHS | Compliant |
| Thickness | 1.95mm |
| Turn-On Delay Time | 130ns |
| Weight | 208.312296mg |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed

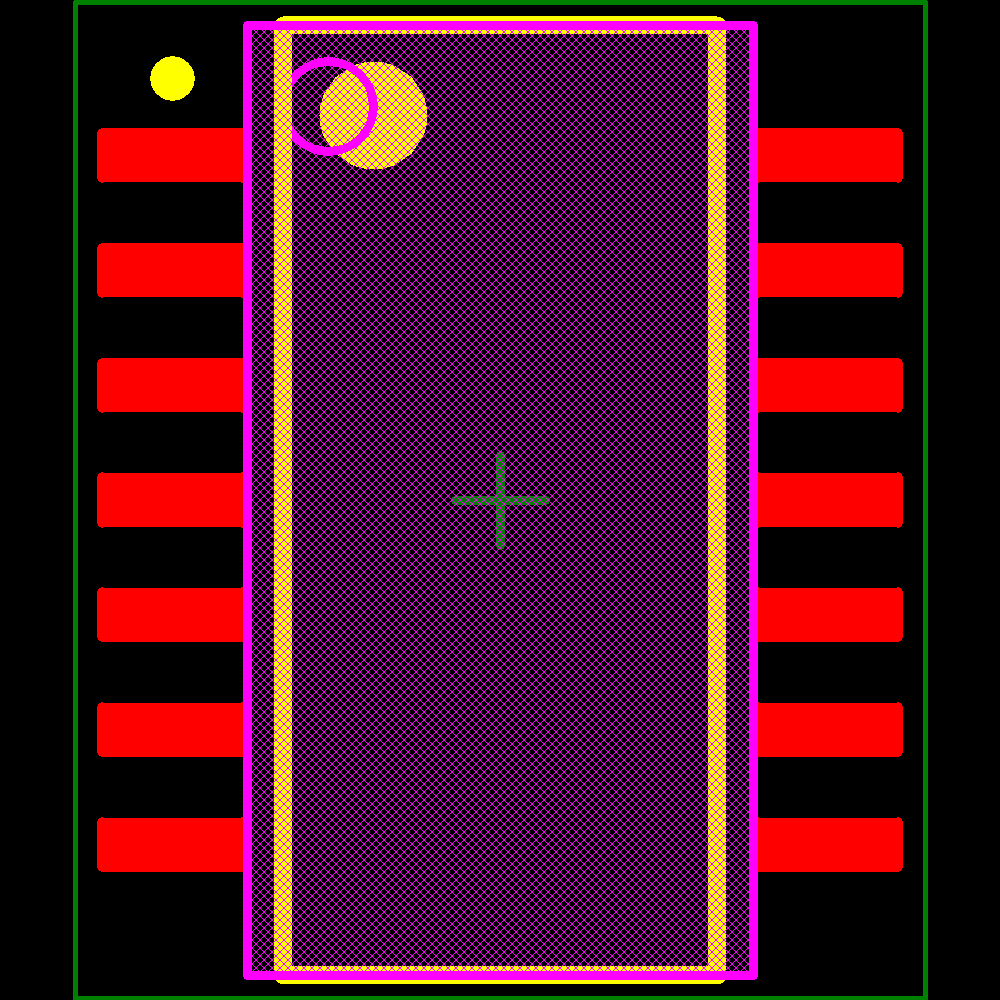

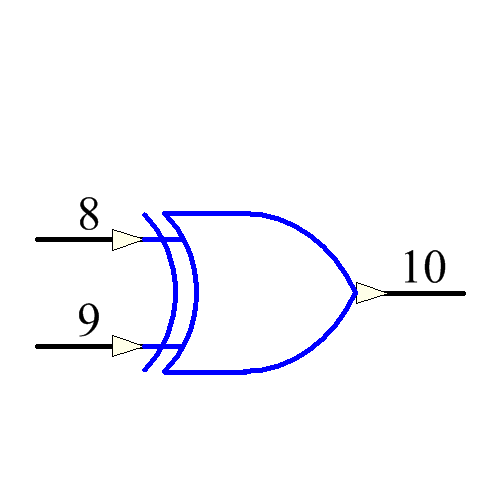

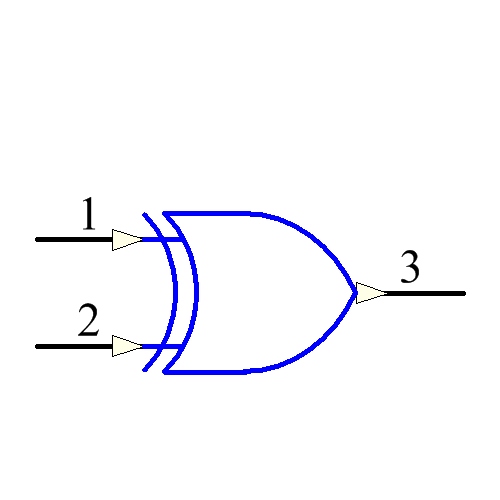

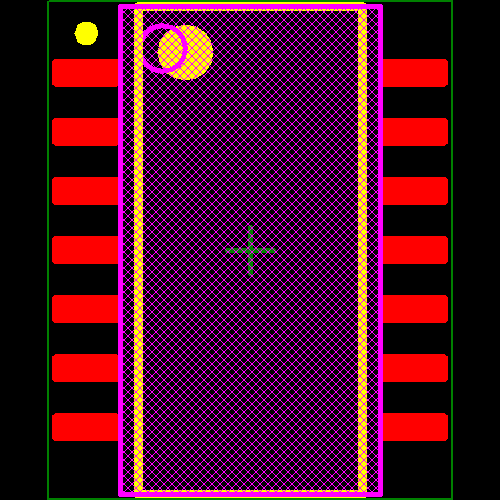

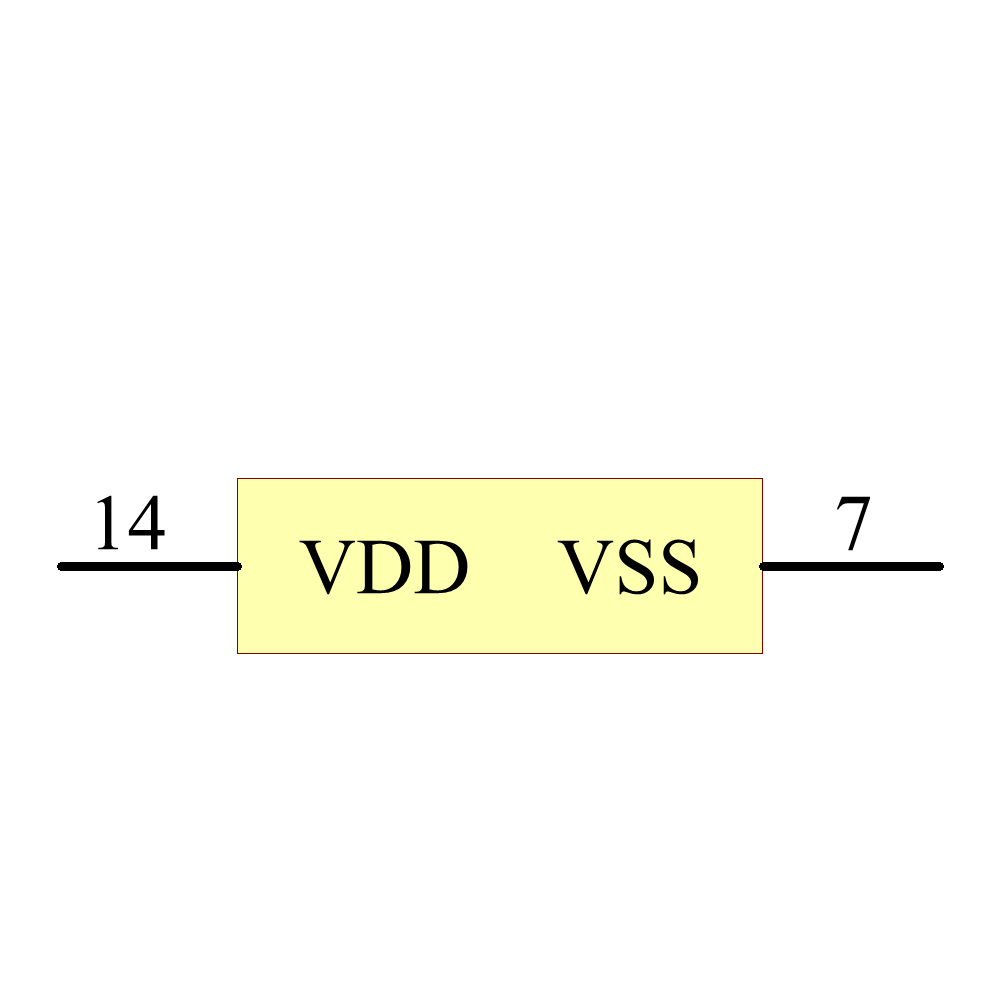

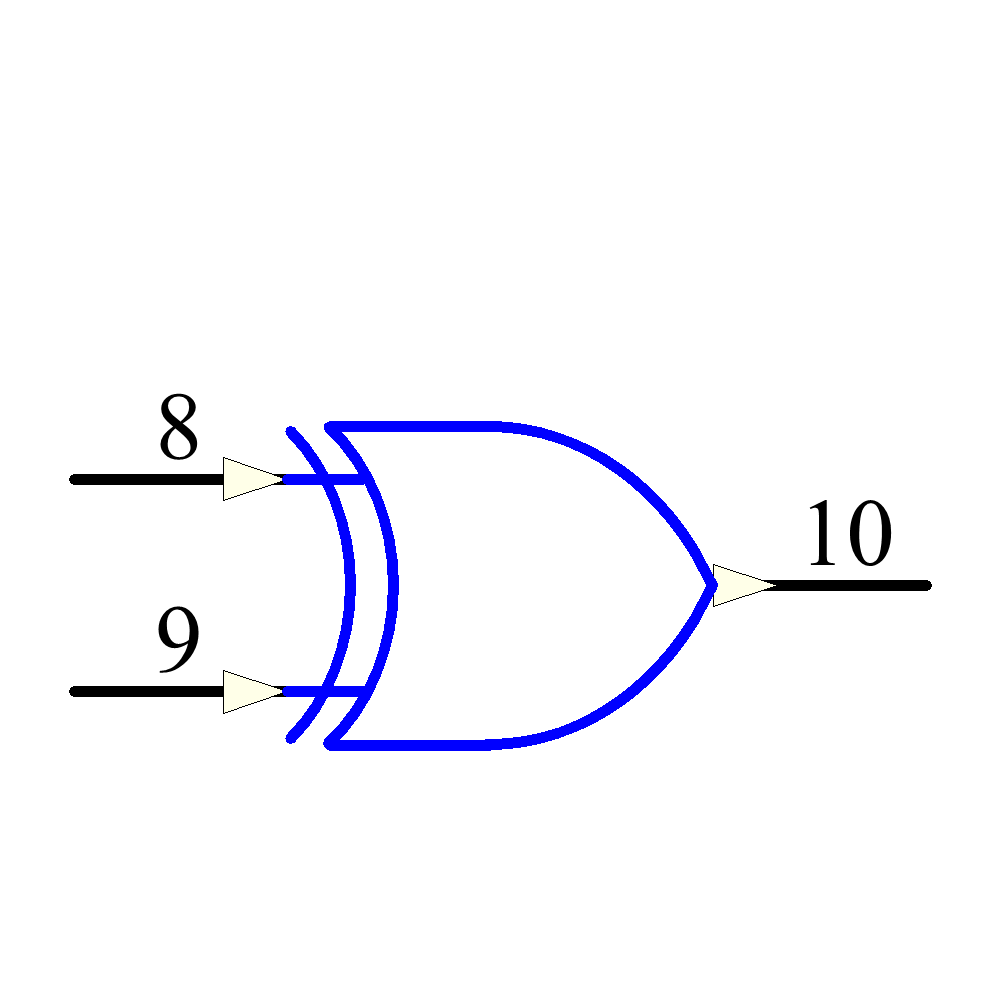

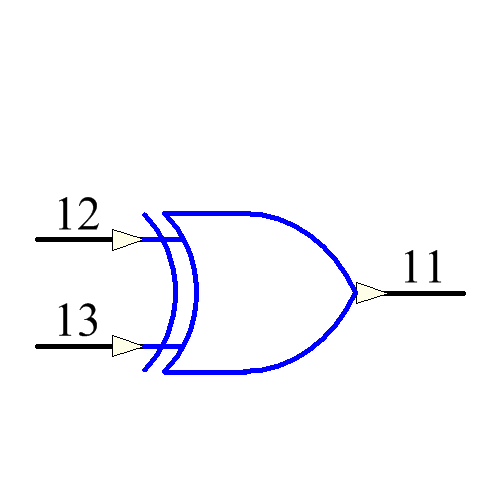

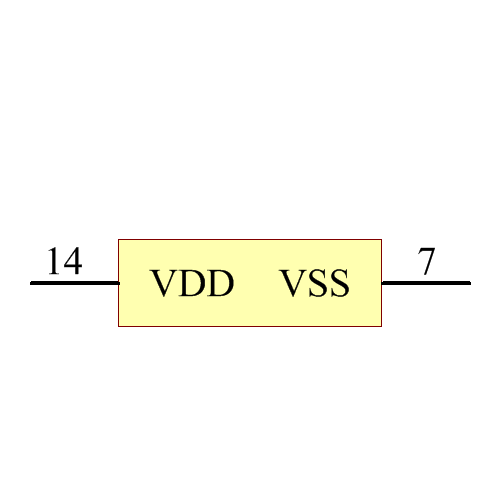

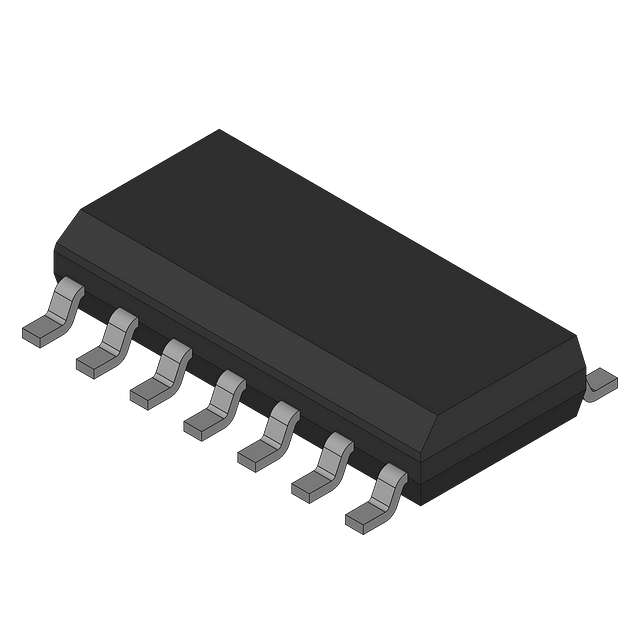

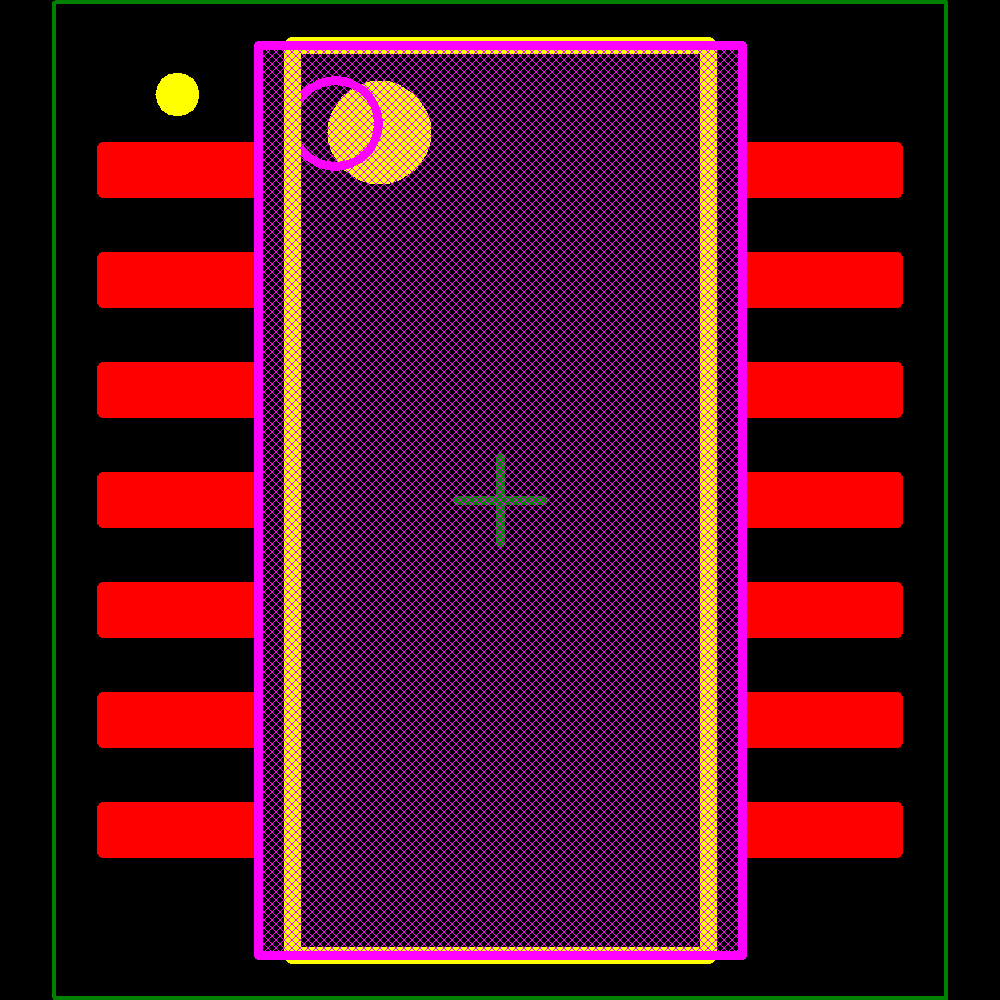

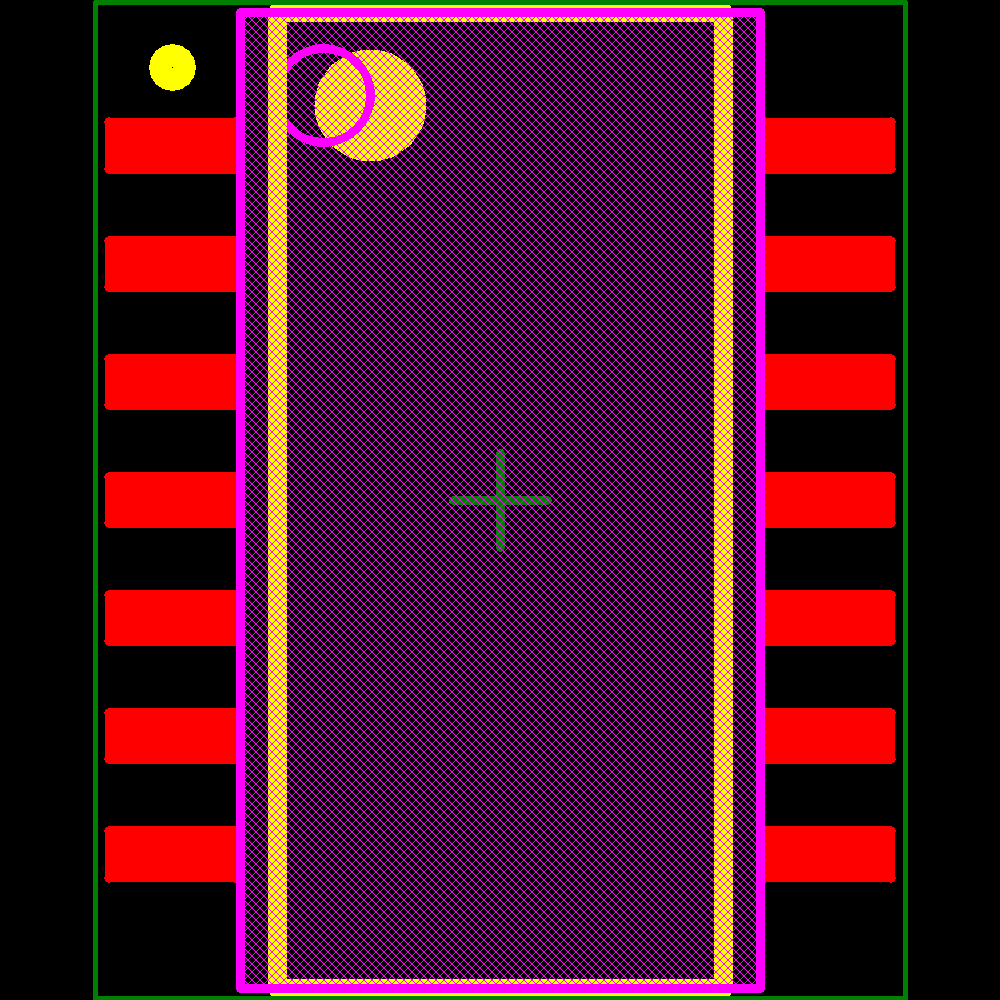

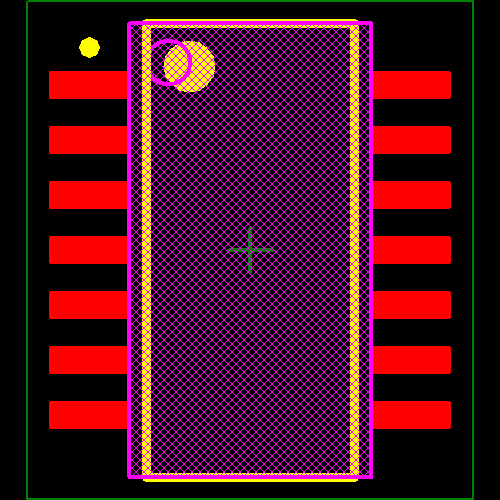

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Renesas | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown |
