CD54HC21F3A - Texas Instruments
Military 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength AND gate 14-CDIP -55 to 125
Technical Details
| Case/Package | CDIP |
| Contact Plating | Lead, Tin |
| Height | 5.08mm |
| High Level Output Current | -5.2mA |
| Lead Free | Contains Lead |
| Length | 19.56mm |
| Lifecycle Status | Production |
| Logic Function | AND |
| Low Level Output Current | 5.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Elements | 1 |
| Number of Gates | 2 |
| Number of Inputs | 3 |
| Number of Outputs | 8 |
| Number of Pins | 14 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 265ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 4.57mm |
| Width | 6.67mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

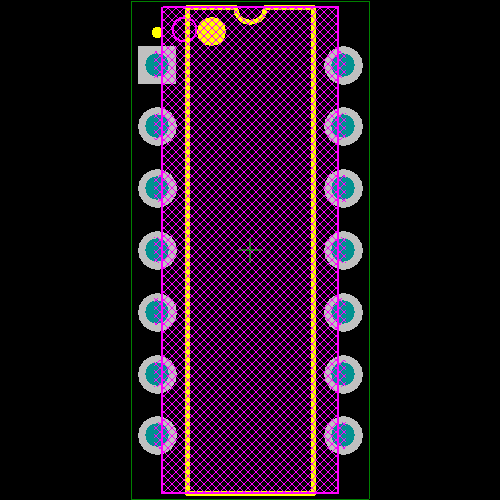

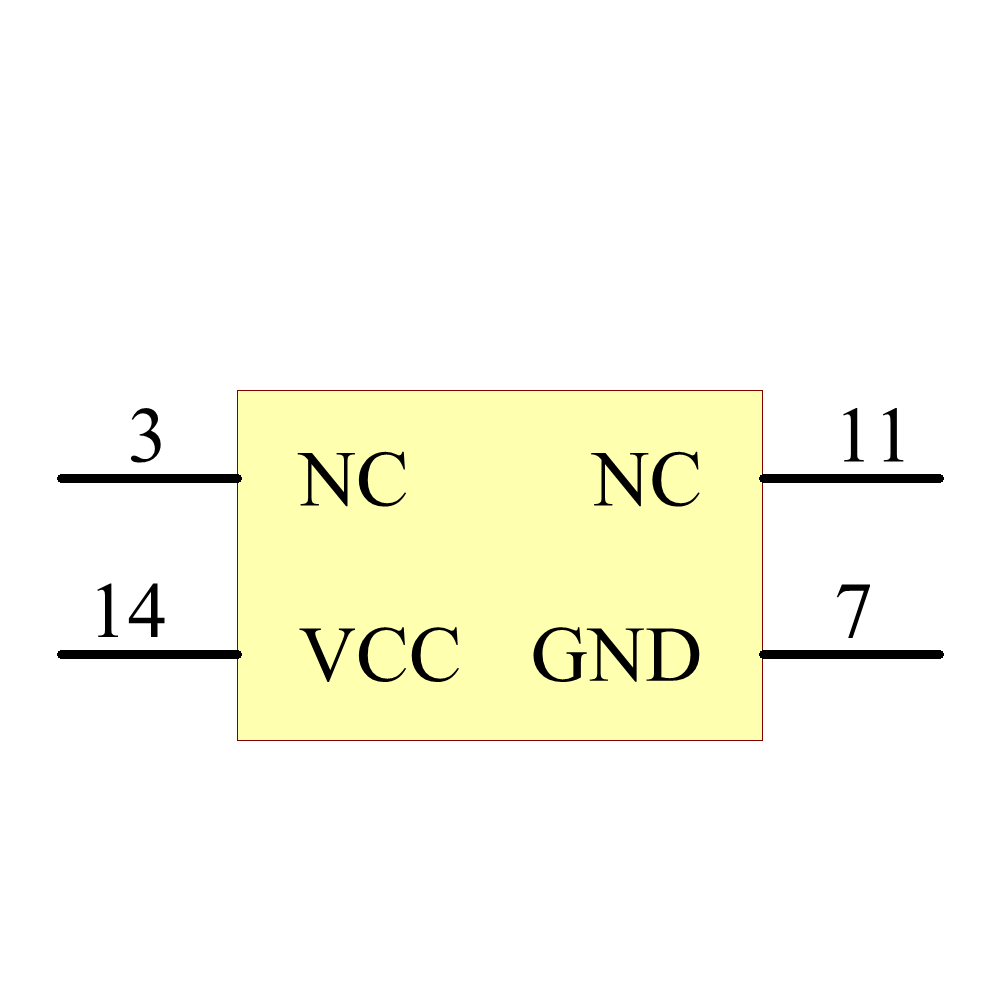

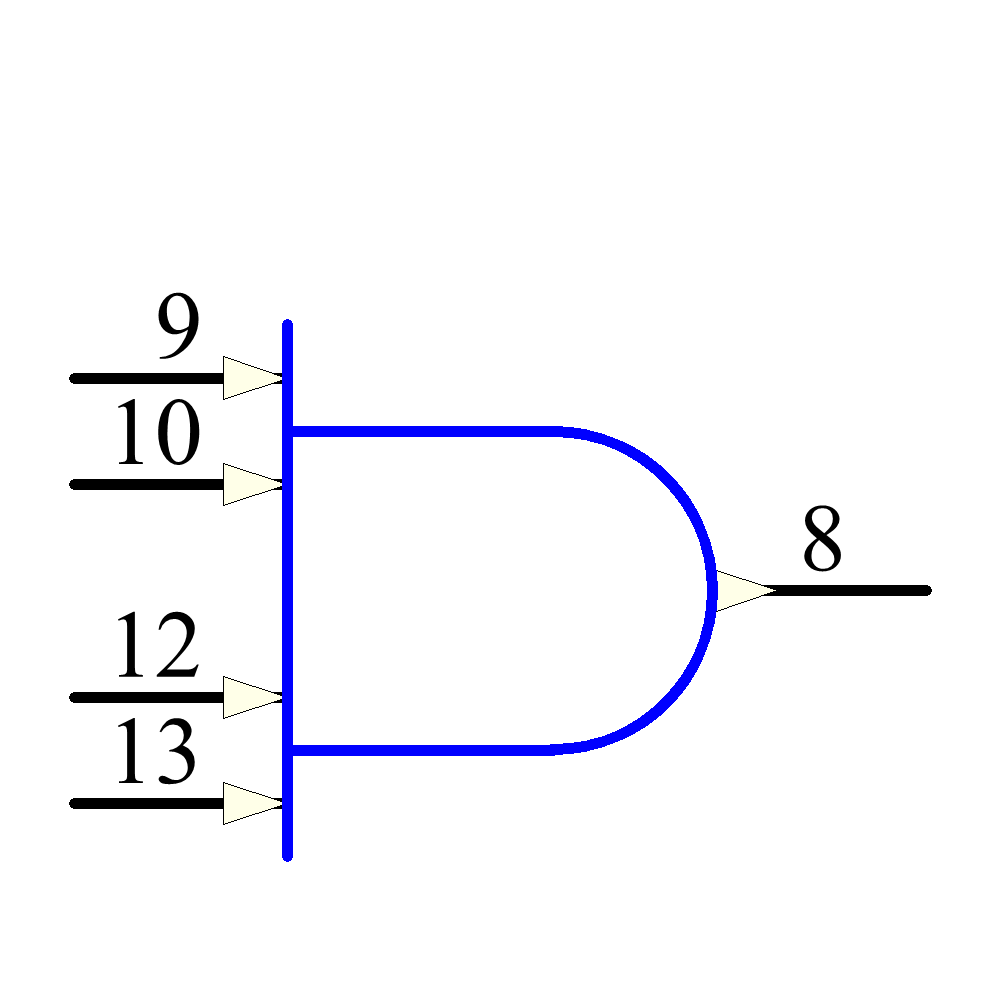

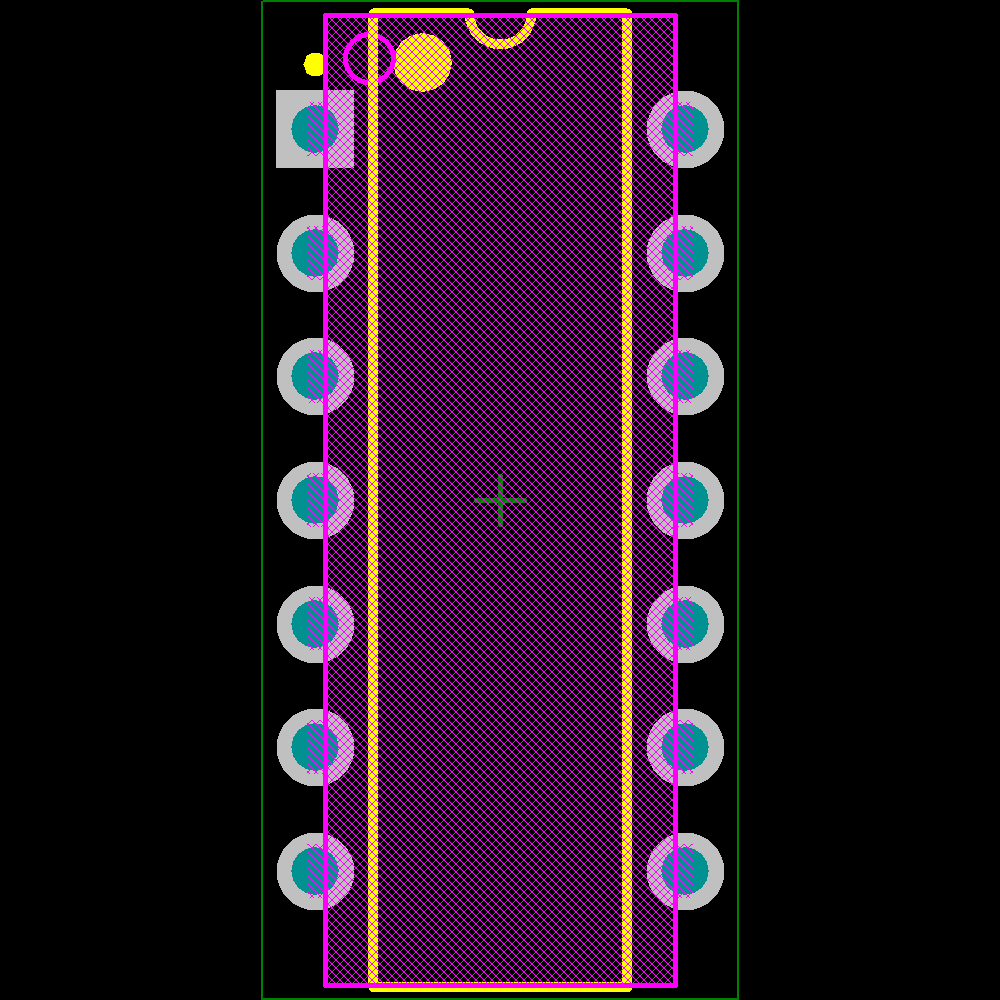

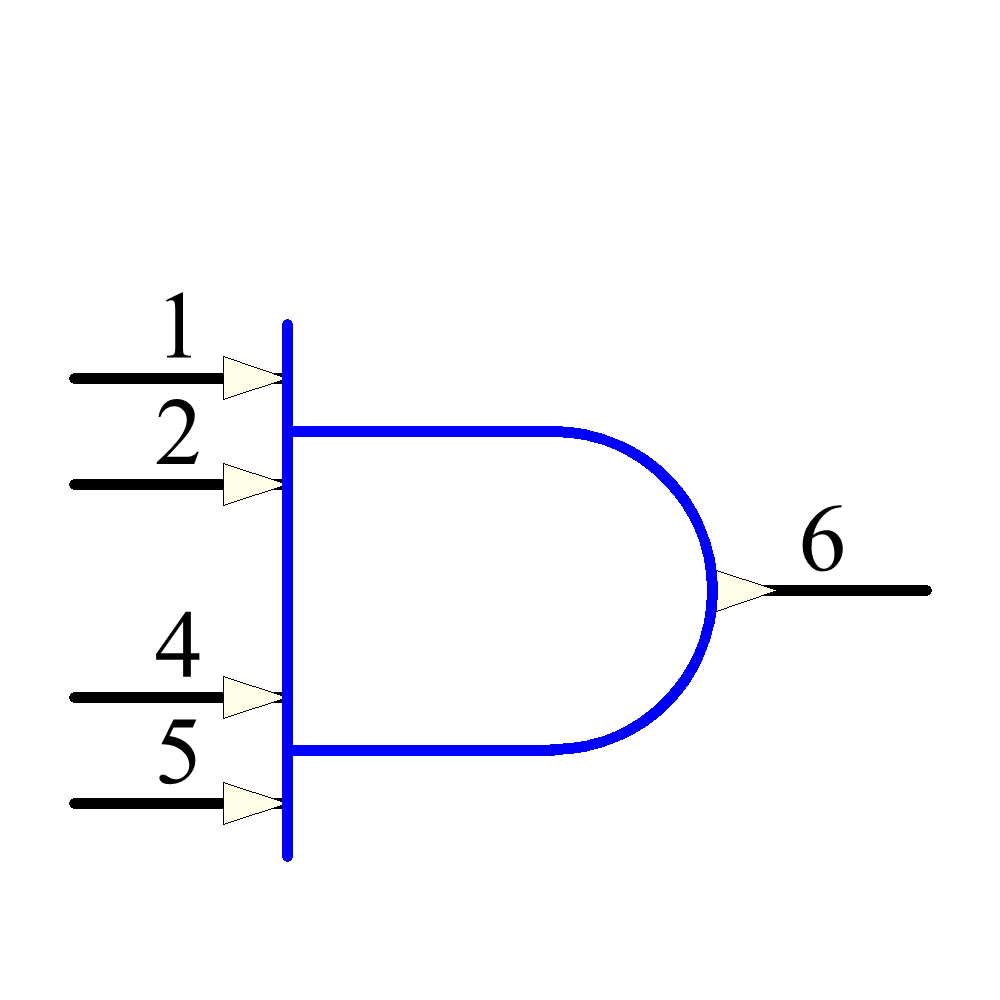

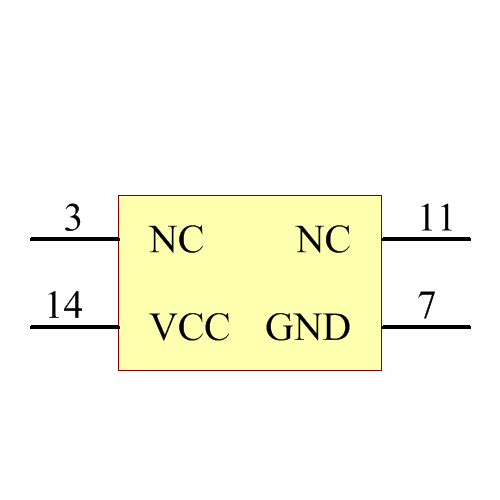

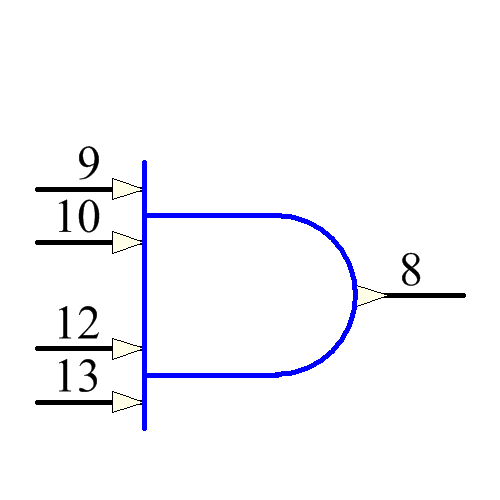

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Toshiba | Obsolete | ||
| Texas Instruments | Production | ||
| Harris | Obsolete | ||
| STMicroelectronics | Obsolete |
