CD54HCT109F3A - Texas Instruments
Hct Series Dual Positive Edge Triggered J-kbar Flip-flop Complementary Output CDIP16
Technical Details
| Case/Package | CDIP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Lead, Tin |
| Frequency | 18MHz |
| Height | 5.08mm |
| High Level Output Current | -4mA |
| Lead Free | Contains Lead |
| Length | 19.56mm |
| Lifecycle Status | Production |
| Logic Function | JK-Type |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Elements | 2 |
| Number of Pins | 16 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 68ns |
| Quiescent Current | 4µA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 4.57mm |
| Width | 6.92mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

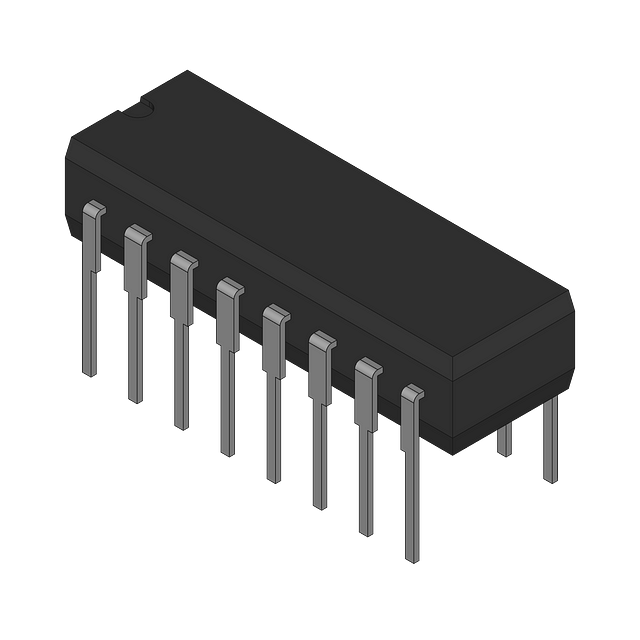

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Harris | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 16
|
$ | 16.76 | 15.92 | 14.25 | 13.41 | ||||
| Texas Instruments |
US: 0
|
$ | 21.147 | 21.147 | 21.147 | 18.472 | 12.739 | 12.739 | ||
