CD54HCT574F - Texas Instruments
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin CDIP Tube
Technical Details
| Case/Package | CDIP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Lead, Tin |
| Frequency | 20MHz |
| Height | 5.08mm |
| High Level Output Current | -6mA |
| Lead Free | Contains Lead |
| Length | 24.2mm |
| Lifecycle Status | Production |
| Logic Function | D-Type |
| Low Level Output Current | 6mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Elements | 1 |
| Number of Pins | 20 |
| Operating Supply Voltage | 5V |
| Polarity | Non-Inverting |
| Propagation Delay | 50ns |
| Quiescent Current | 8µA |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Thickness | 4.57mm |
| Turn-On Delay Time | 50ns |
| Width | 6.92mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

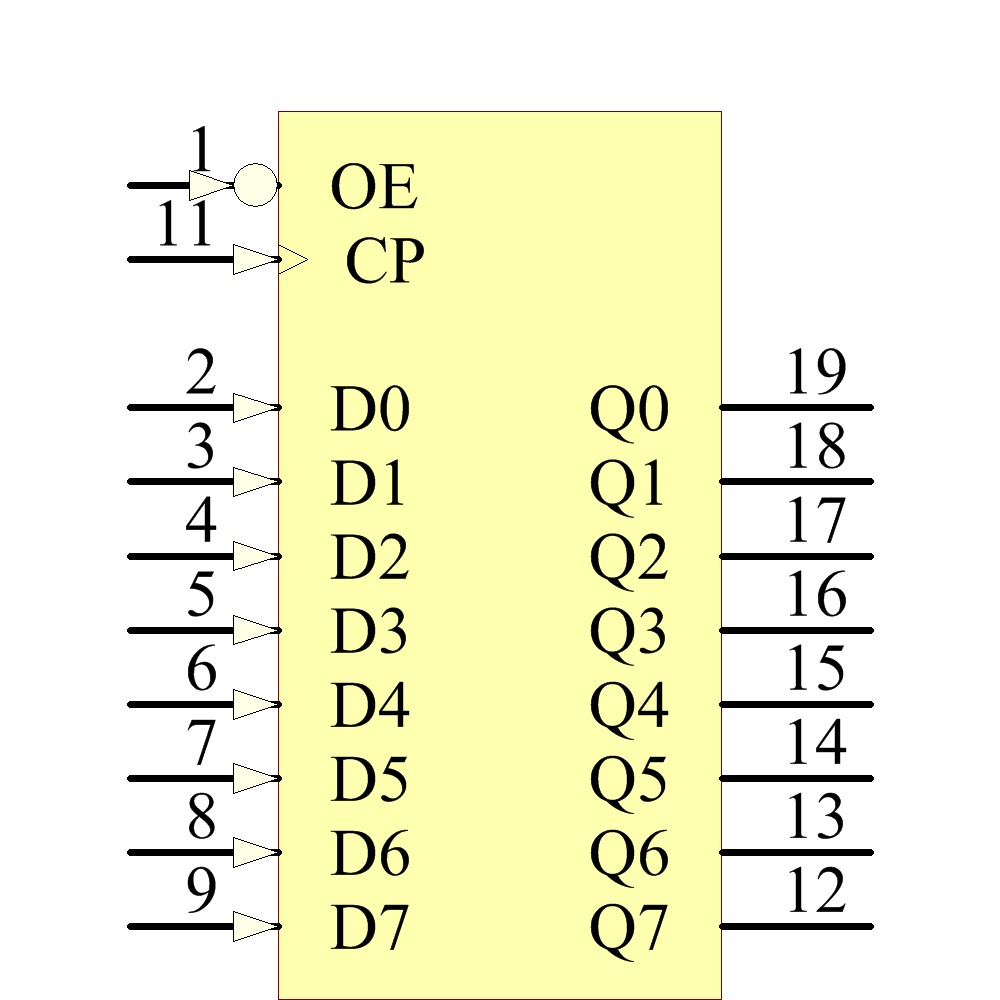

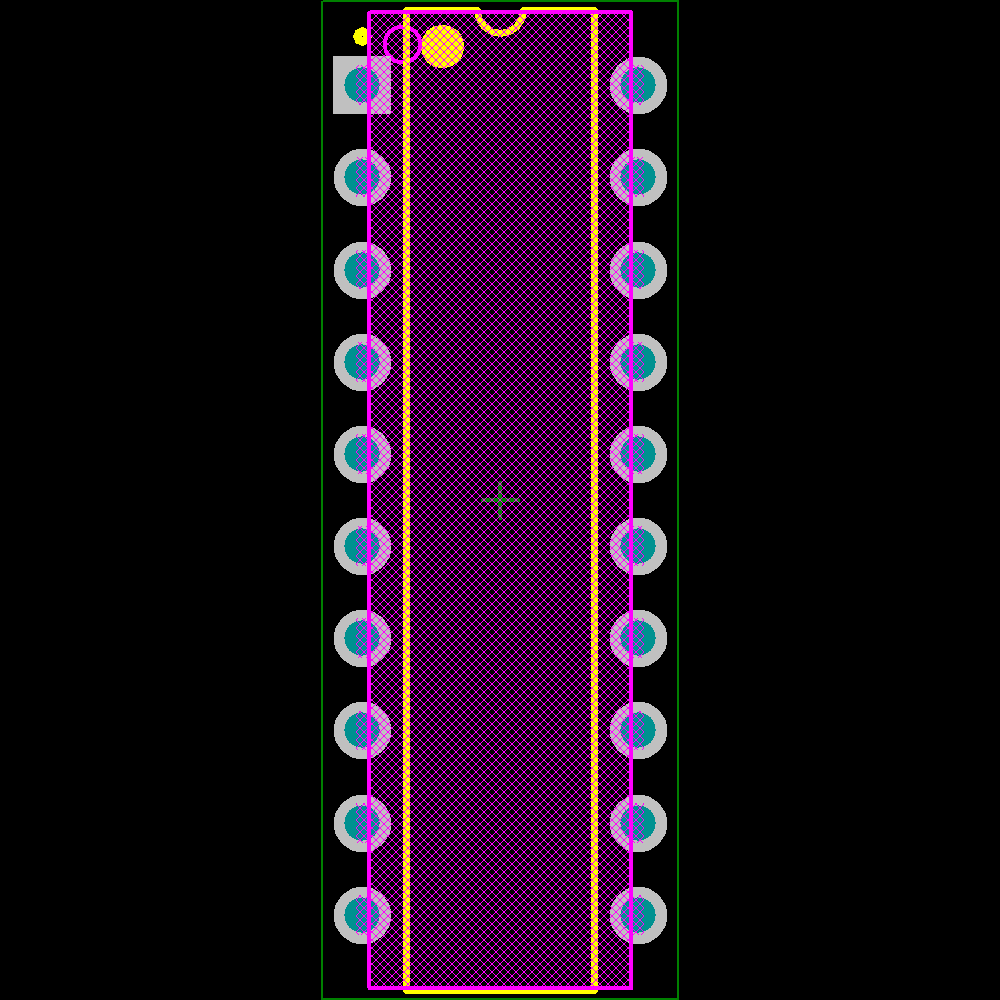

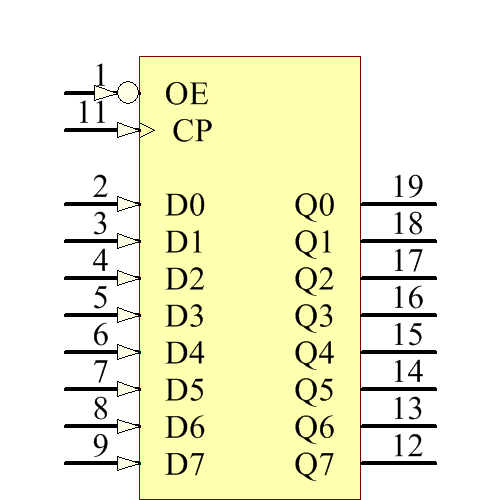

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| Intersil | Obsolete | ||
| Toshiba | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Toshiba | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow Electronics |
US: 0
|
$ | 18.09 | 17.73 | 16.70 | |||||
| Texas Instruments |
US: 0
|
$ | 21.69 | 21.69 | 21.69 | 18.946 | 13.066 | 13.066 | ||
