CD74HC109E - Texas Instruments
Hc/uh Series Dual Positive Edge Triggered J-kbar Flip-flop Complementary Output PDIP16
Technical Details
| Case/Package | PDIP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Height | 5.08mm |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | AND, Flip-Flop, JK-Type |
| Low Level Output Current | 5.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 23MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Number of Pins | 16 |
| Output Current | 5.2mA |
| Output Type | TTL |
| Polarity | Non-Inverting |
| Propagation Delay | 265ns |
| Quiescent Current | 4µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Thickness | 3.9mm |
| Turn-On Delay Time | 14ns |
| Weight | 951.693491mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

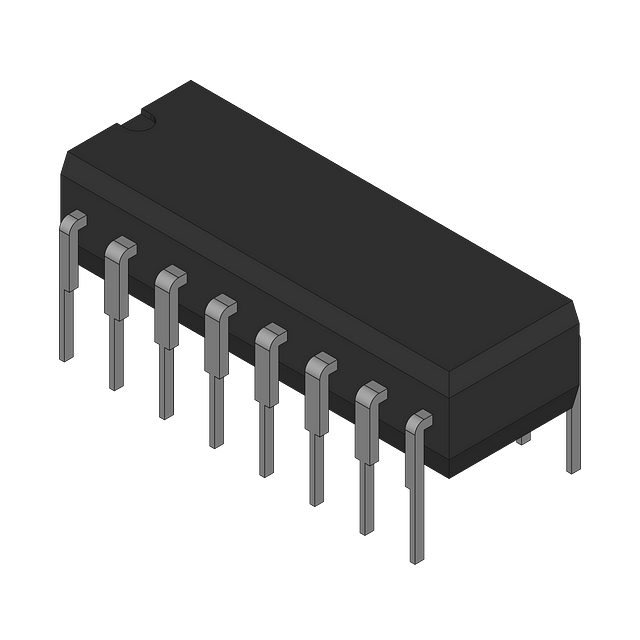

Images
