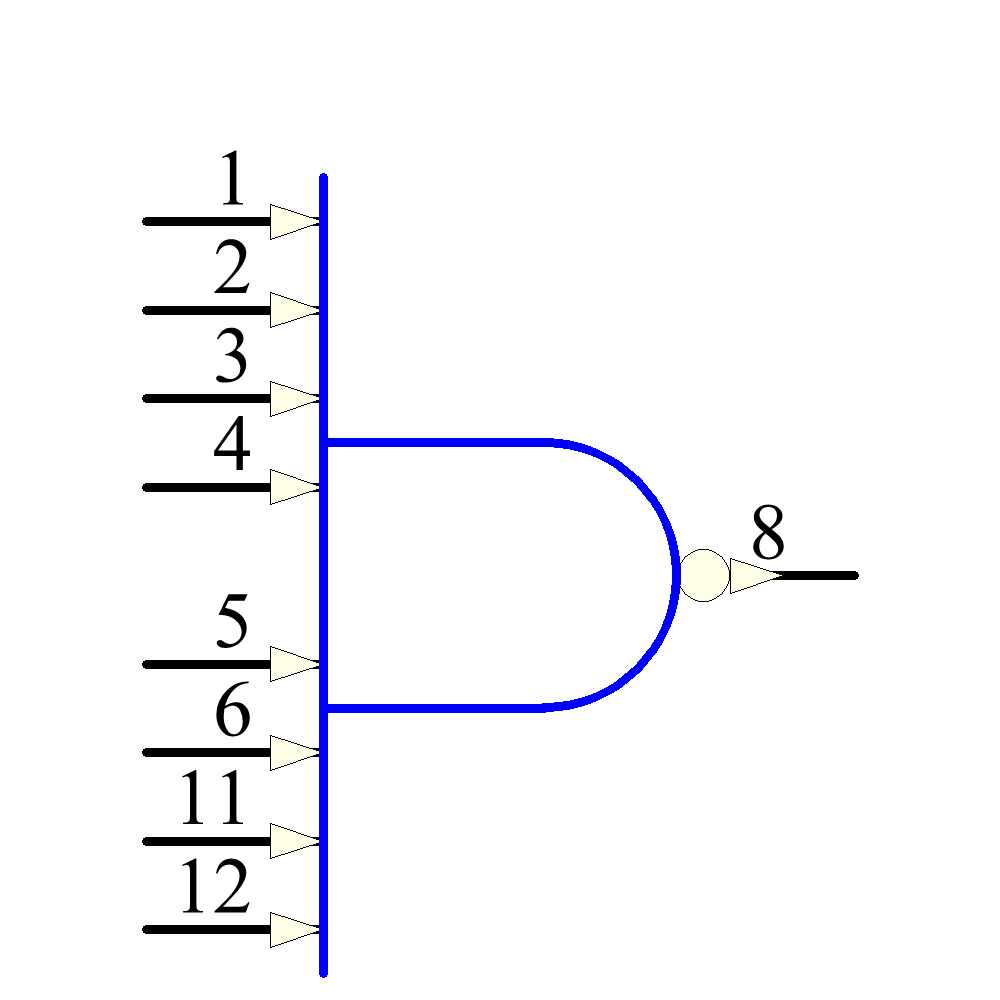

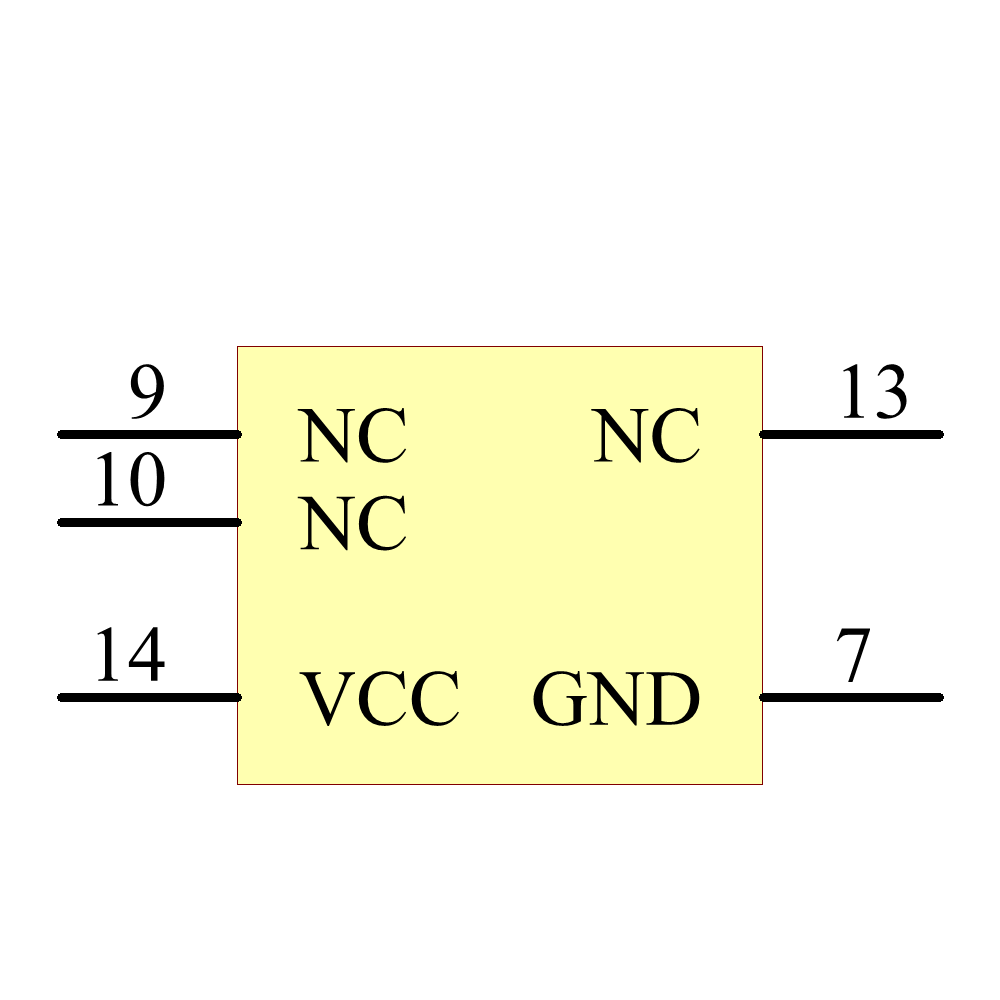

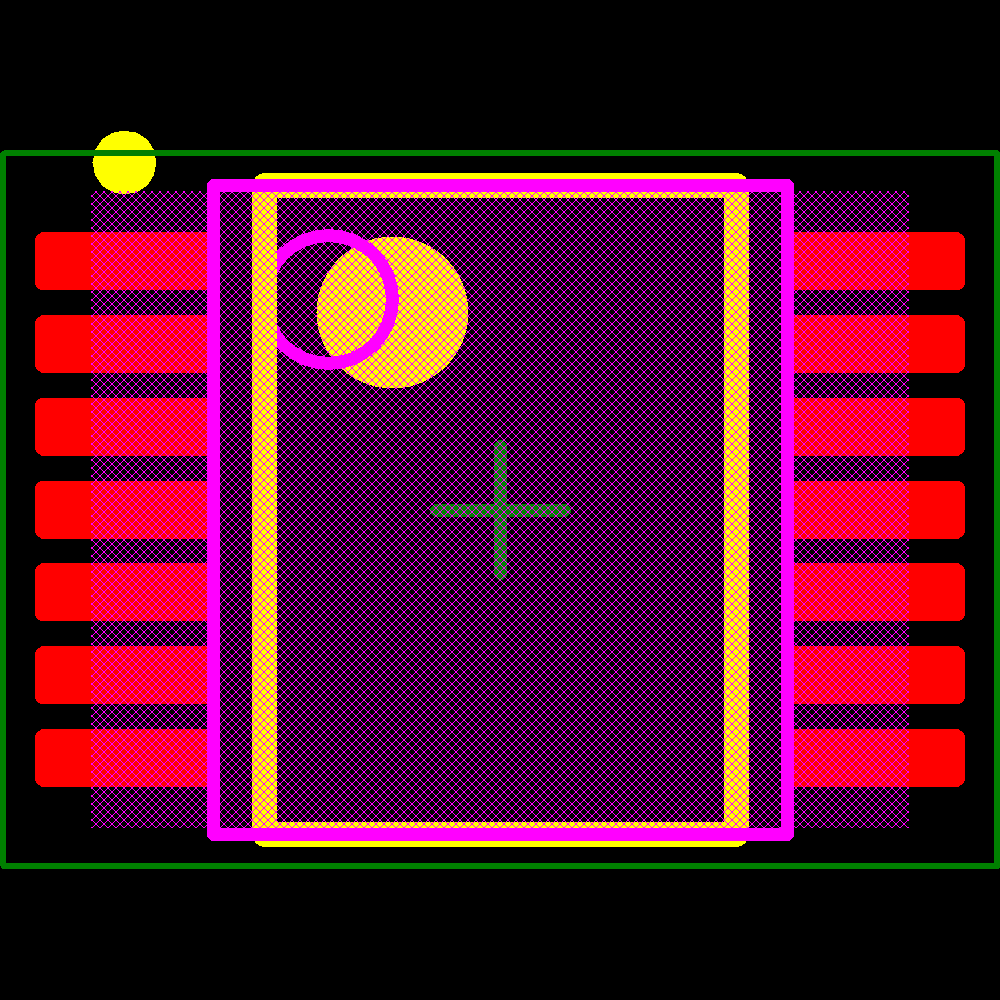

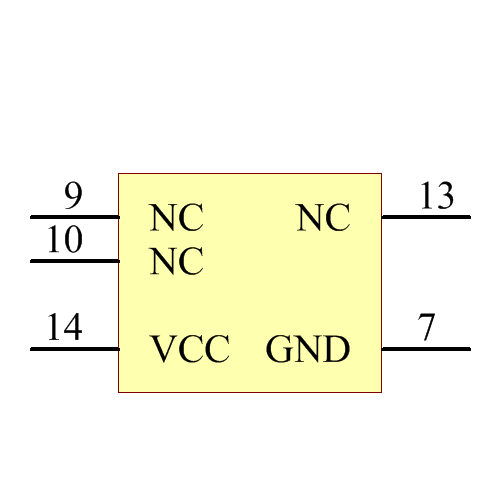

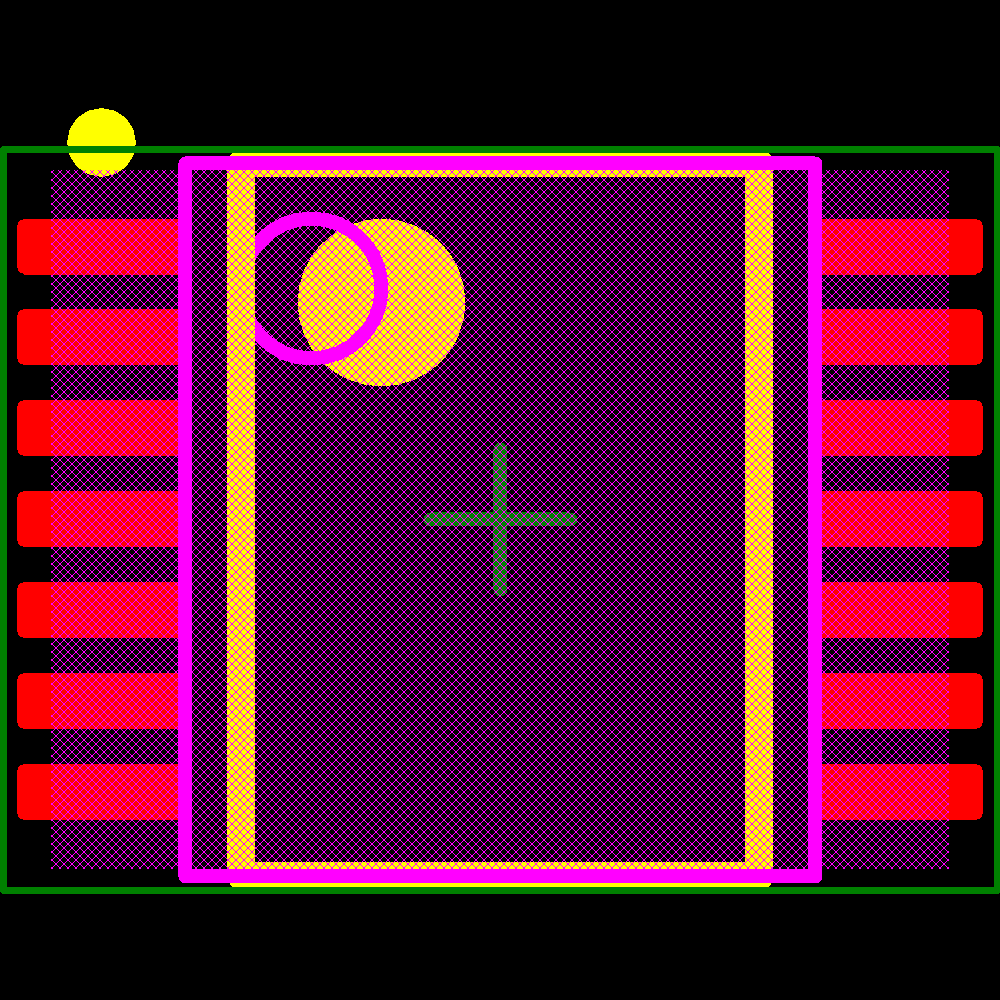

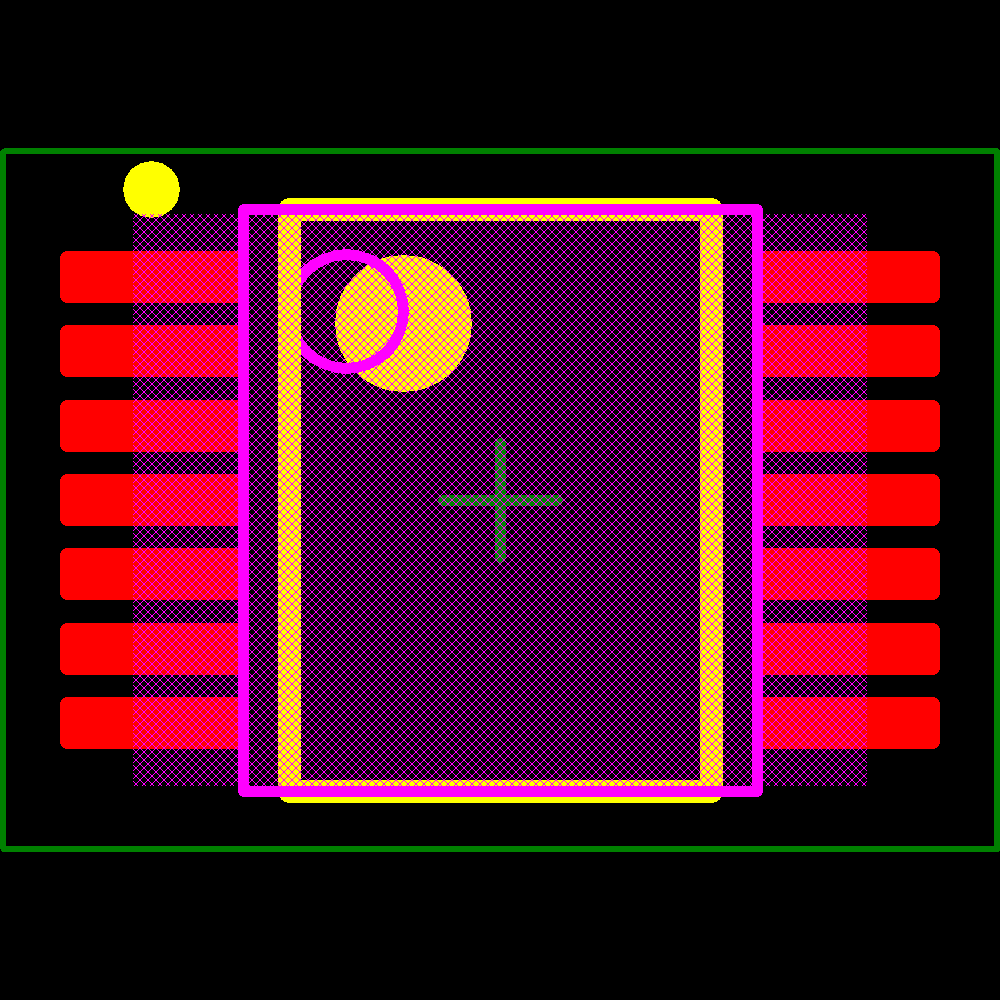

CD74HC30PWR - Texas Instruments
Single 8-input, 2-V to 6-V 5.2 mA drive strength NAND gate 14-TSSOP -55 to 125
Technical Details
| Case/Package | TSSOP |
| Contact Plating | Gold |
| Height | 0m |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Logic Function | NAND |
| Low Level Output Current | 5.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 5.2mA |
| Packaging | Cut Tape (CT) |
| Propagation Delay | 22ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Schmitt Trigger Input | No |
| Thickness | 1mm |
| Turn-On Delay Time | 28ns |
| Weight | 57.209338mg |
| Width | 4.4mm |
