CD74HC74EE4 - Texas Instruments
IC FF D-TYPE DUAL 1BIT 14DIP "Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-DIP (0.300"", 7.62mm)"
Technical Details
| Case/Package | PDIP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 50MHz |
| Height | 5.08mm |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 5.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 14 |
| Output Current | 5.2mA |
| Polarity | Non-Inverting |
| Propagation Delay | 175ns |
| Quiescent Current | 4µA |
| RoHS | Compliant |
| Thickness | 3.9mm |
| Turn-On Delay Time | 14ns |
| Weight | 927.99329mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed

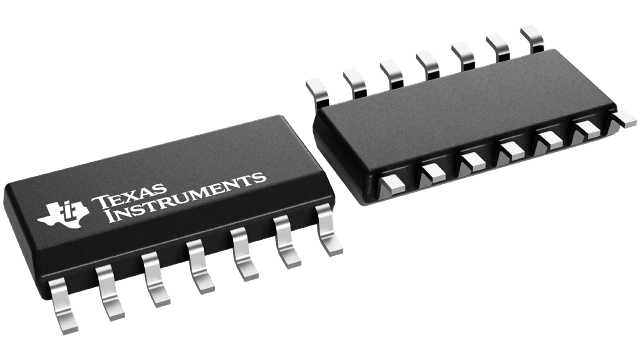

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Intersil | Obsolete | ||
| Motorola | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Toshiba | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 233
|
$ | 1.56 | 1.02 | 0.864 | 0.731 | 0.385 | 0.385 | ||
| DigiKey |
DE: 0
|
$ | 0.4909 | 0.4909 | ||||||
