DCP010515BP-U/700 - Texas Instruments
DC DC CONVERTER 15V 1W Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
Technical Details
| Case/Package | SOP |
| Current - Output 1 | 67mA |
| Efficiency | 82% |
| Features | OTP, SCP |
| Frequency | 800kHz |
| Height | 5.33mm |
| Isolation Voltage | 1000Vrms |
| Lead Free | Lead Free |
| Length | 19.18mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 100°C |
| Max Output Current | 67mA |
| Max Output Power | 970mW |
| Max Output Voltage | 15.75V |
| Max Power Dissipation | 510mW |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 14.25V |
| Number of Outputs | 1 |
| Number of Pins | 7 |
| Output Current | 67mA |
| Output Power | 1W |
| Output Type | Fixed |
| Output Voltage | 15V |
| Packaging | Tape and Reel |
| Power Rating | 1W |
| Quiescent Current | 34mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 400kHz |
| Thickness | 3.94mm |
| Topology | Boost, Push-Pull |
| Voltage - Output 1 | 15V |
| Width | 6.61mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

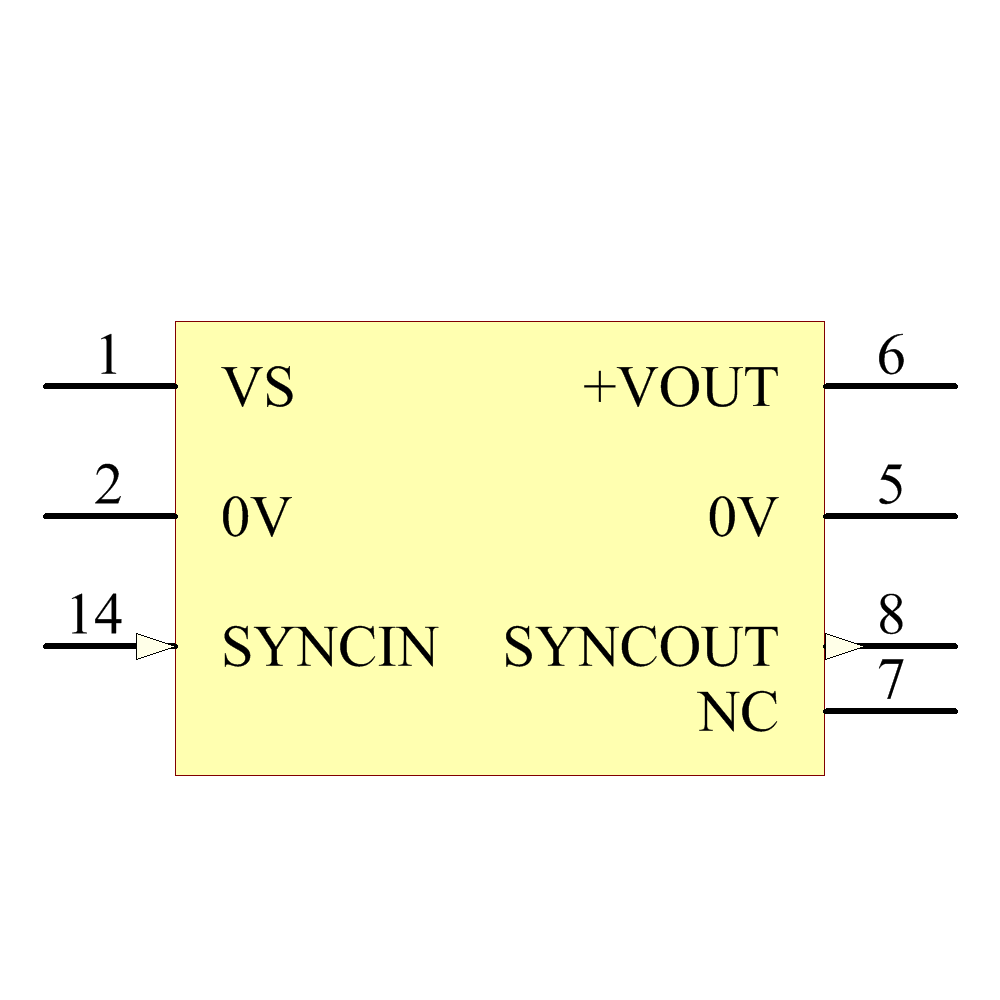

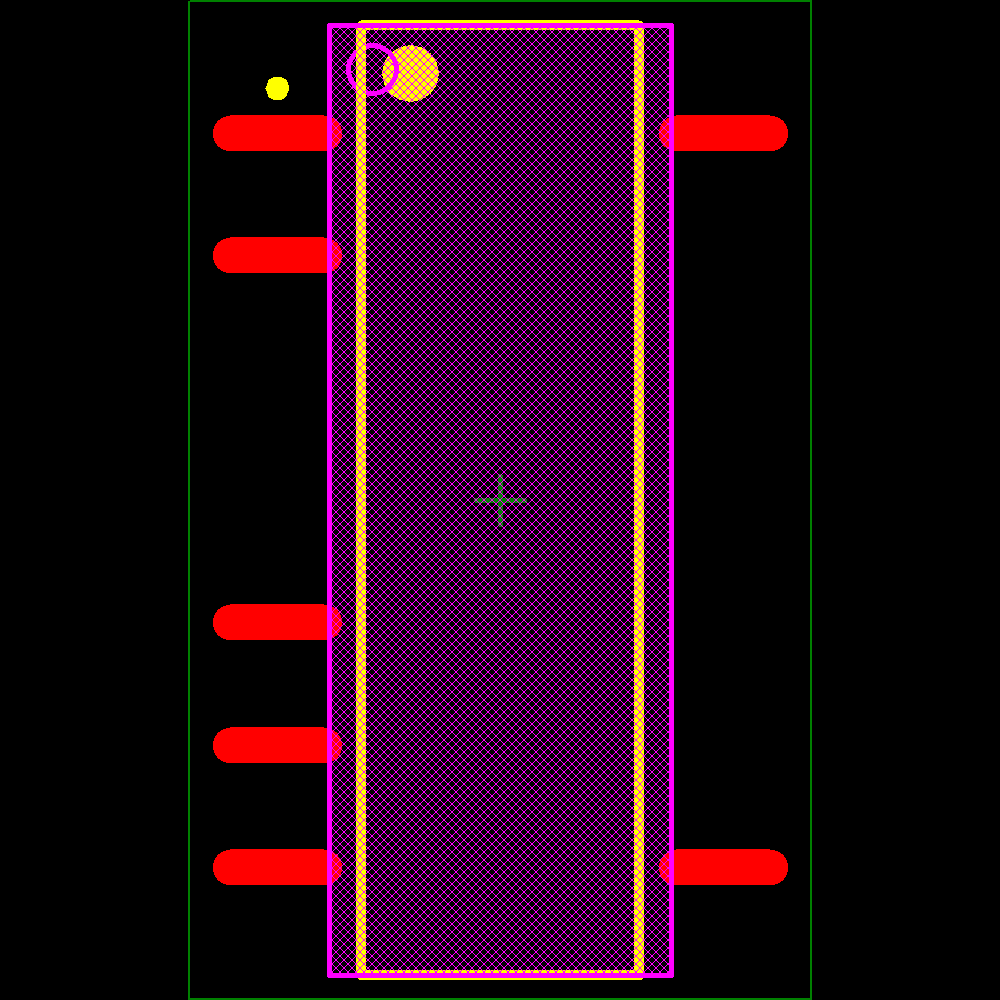

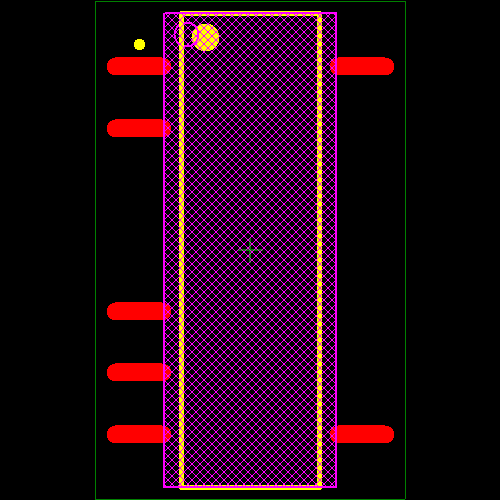

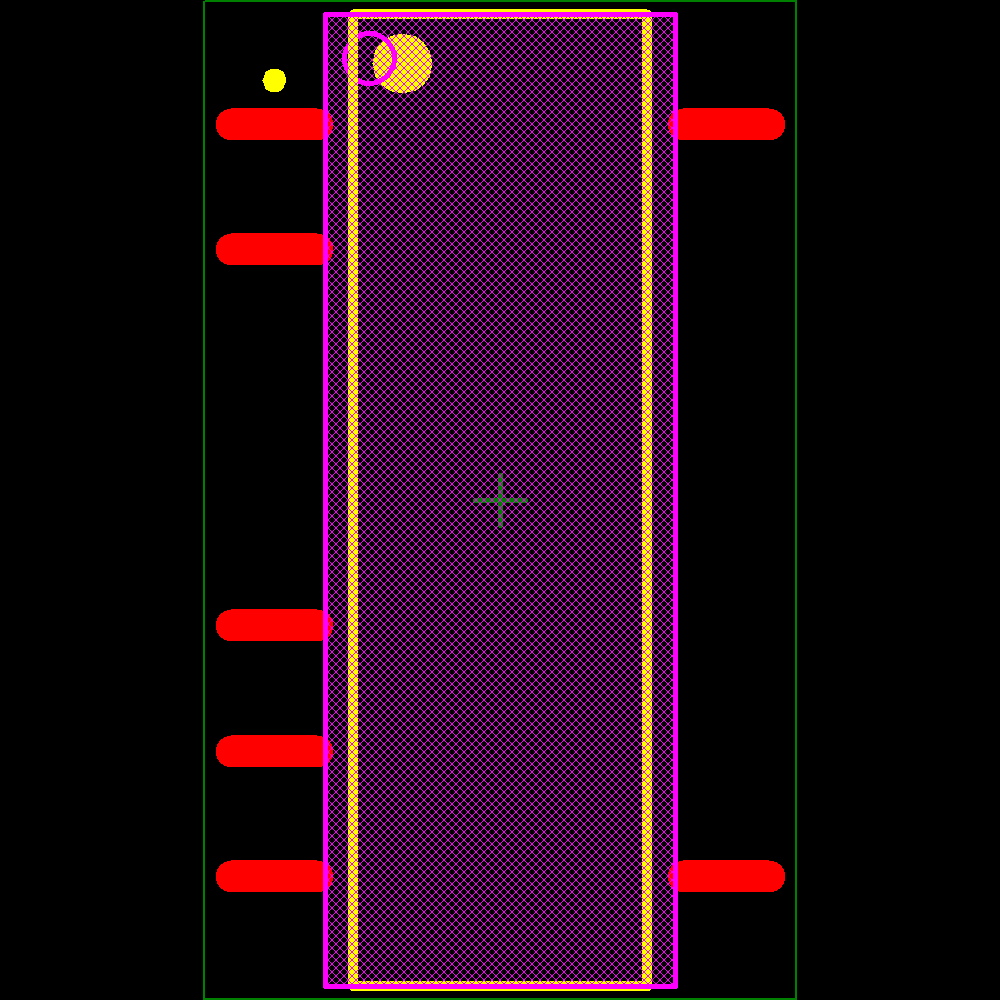

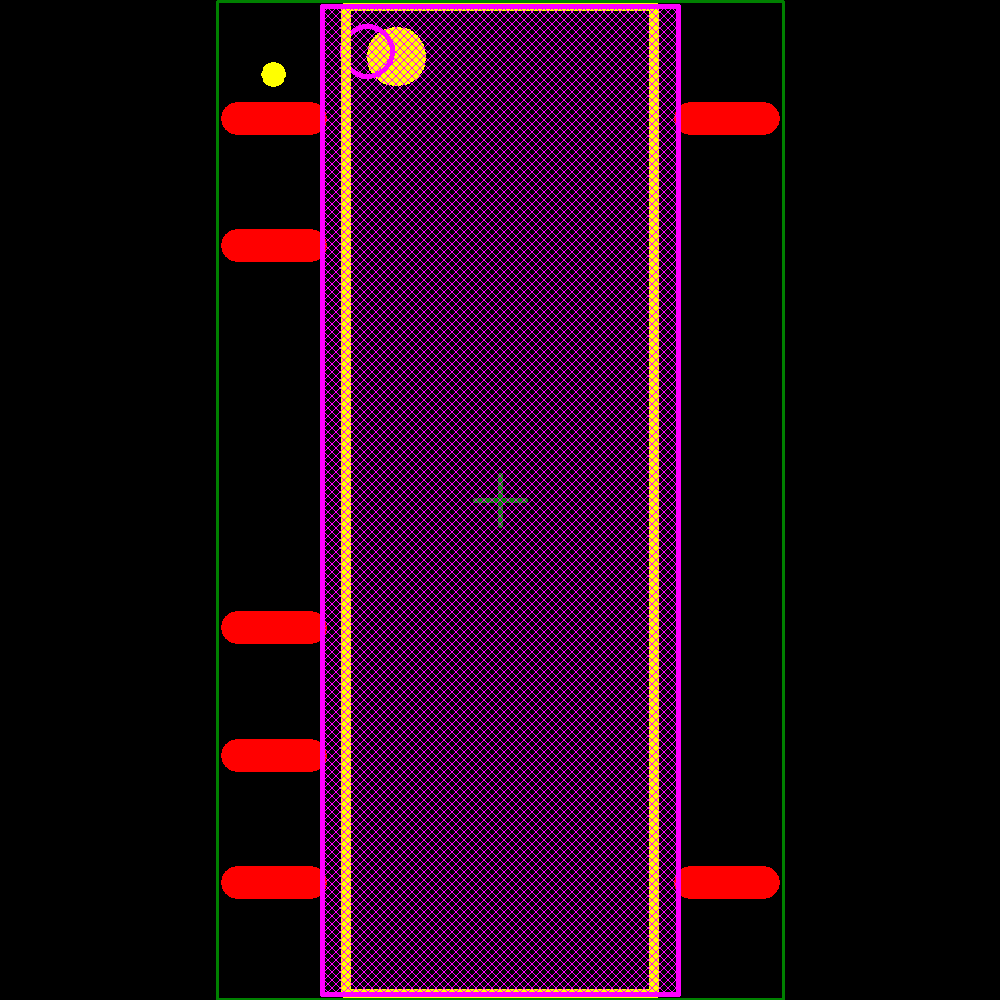

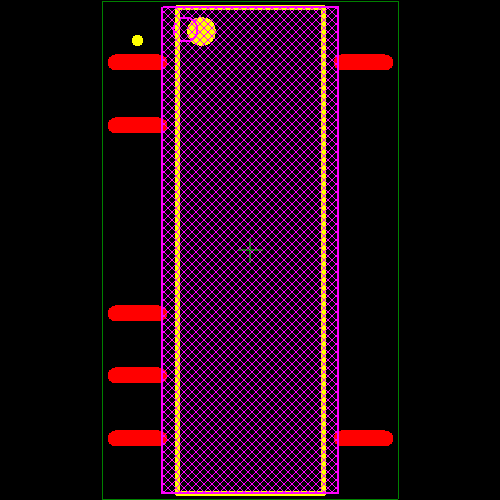

Images
