DS485M - Texas Instruments
EAR99 DS485 Tube RS422RS485 interface transceiver 5V 0.000002A 4.9mm 40ns
Technical Details
| Case/Package | SOIC |
| Data Rate | 2.5Mbps |
| Interface | RS-422, RS-485 |
| Lead Free | Contains Lead |
| Logic Function | Transceiver |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 900µA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Propagation Delay | 40ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Receiver Hysteresis | 70mV |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

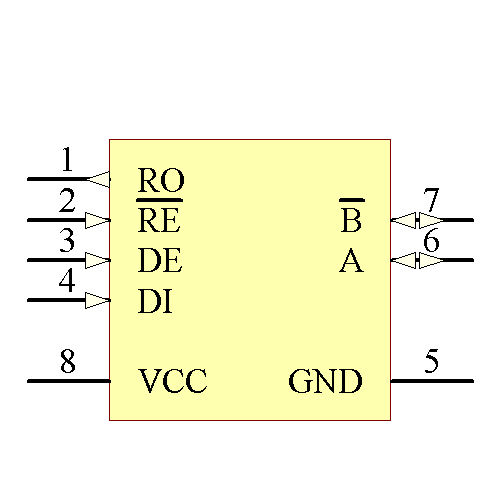

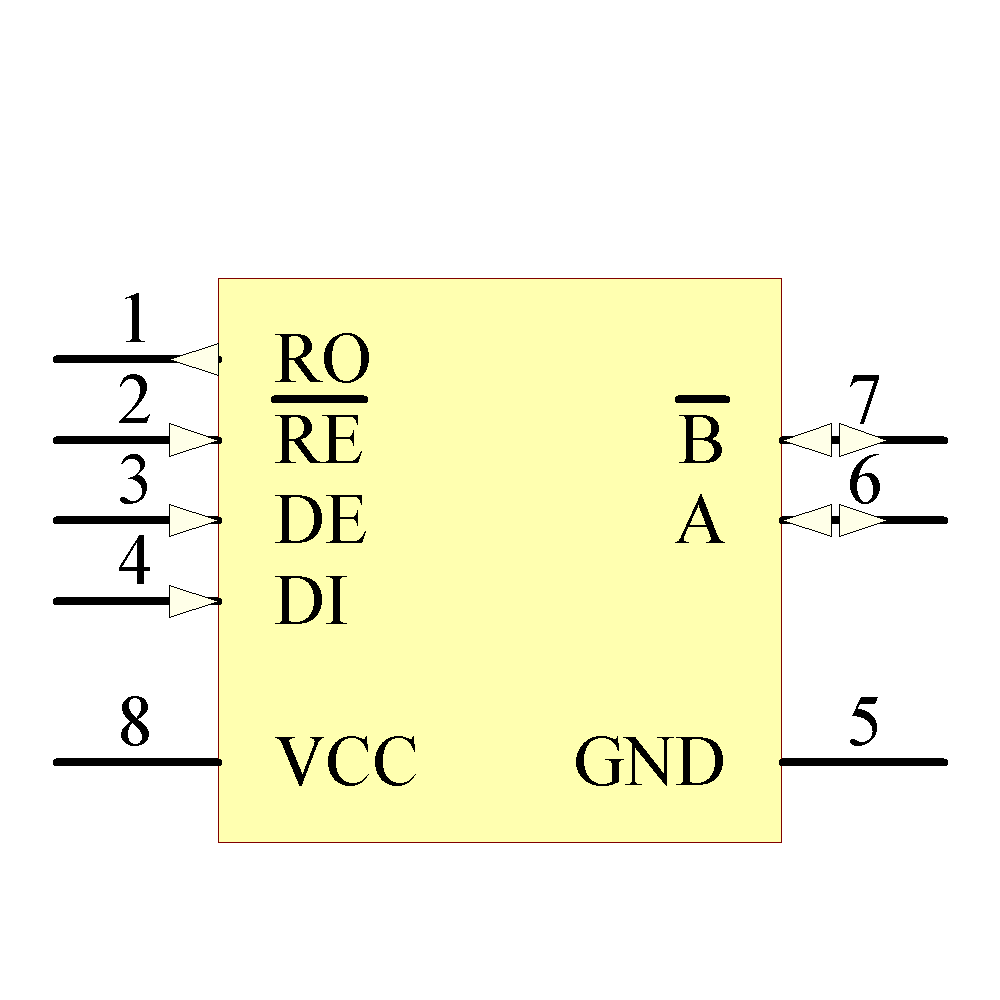

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| STMicroelectronics | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown |
