DS485MX - Texas Instruments
Low-Power RS-485/RS-422 Multipoint Transceiver 8-SOIC -40 to 85
Technical Details
| Case/Package | SOIC |
| Data Rate | 2.5Mbps |
| Logic Function | Transceiver |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 900µA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

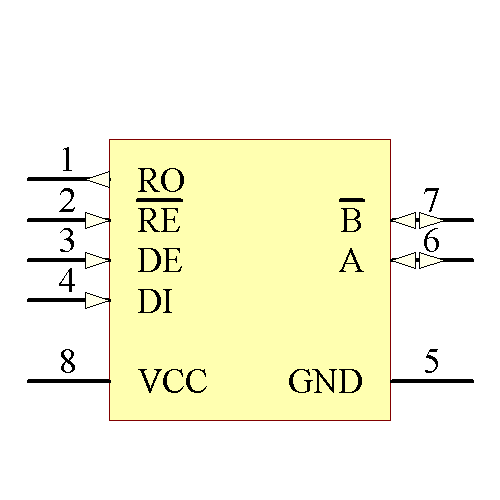

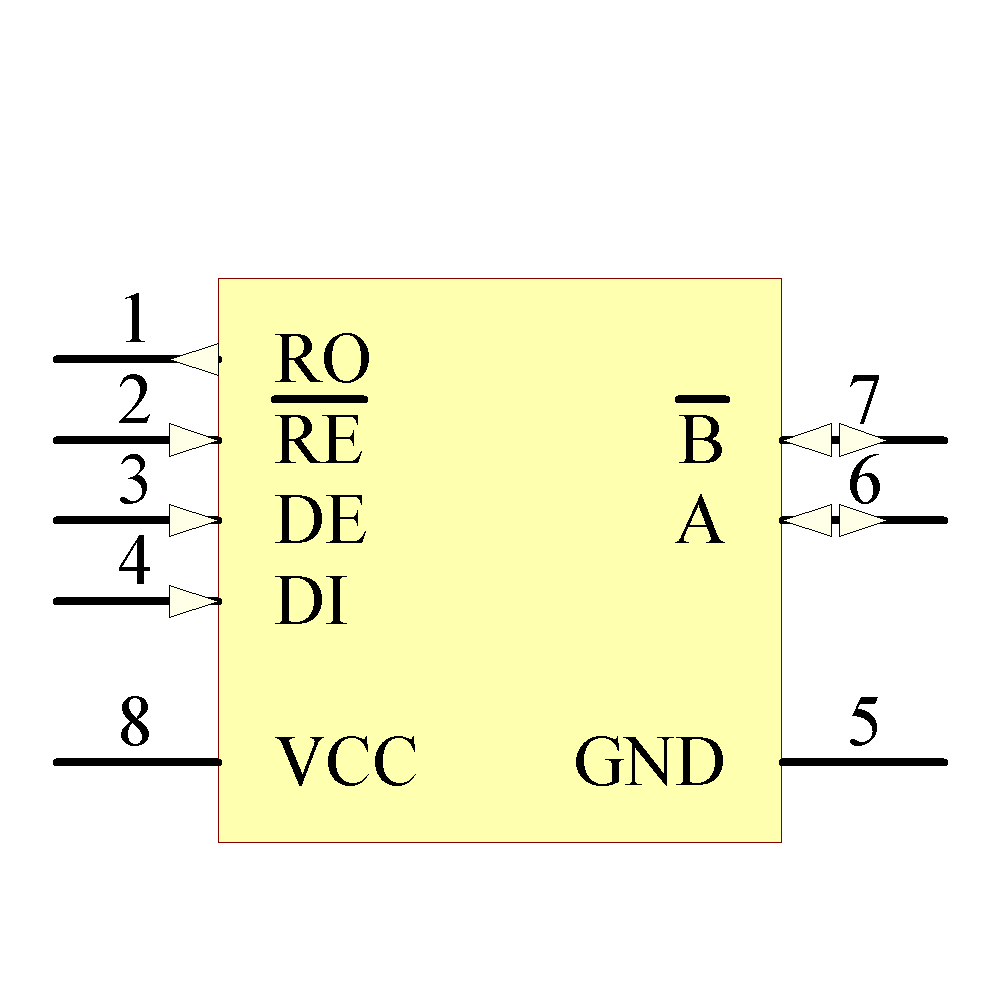

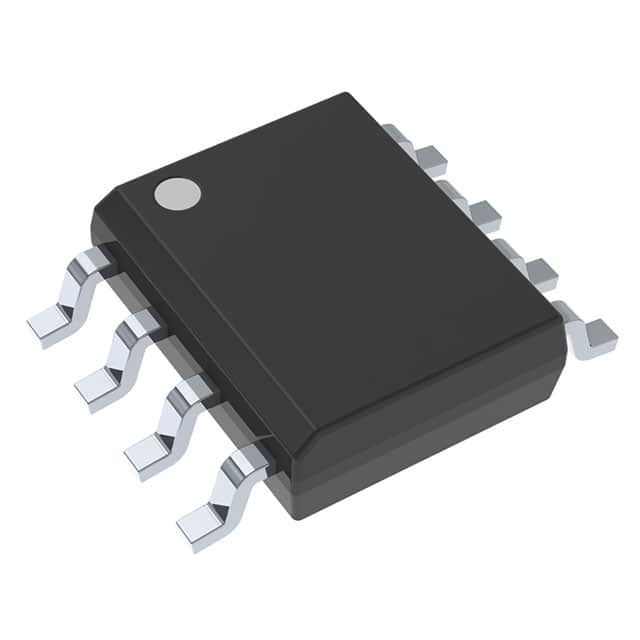

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| STMicroelectronics | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown |
