Texas Instruments - ESD122DMXR

ESD122DMXR - Texas Instruments

Dual 0.2-pF, ±3.6-V, ±17-kV ESD protection diode for USB Type-C and HDMI 2.0 3-X2SON -40 to 125

 Datasheets

Technical Details

Ambient Temperature Range High 125°C
Breakdown Voltage 5V
Capacitance 200fF
Clamping Voltage 8.4V
Direction Bidirectional
Height 400µm
Interface GPIO, HDMI, PCIe, SATA, USB
Length 1mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Number of Channels 2
Number of Pins 3
Operating Supply Voltage 3.6V
Packaging Cut Tape
Peak Pulse Current 2.5A
Peak Pulse Power 20W
Reverse Standoff Voltage 3.6V
RoHS Compliant
Schedule B 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|85
Thickness 370µm
Width 600µm

Compliance

   RoHS : Unconfirmed

Images

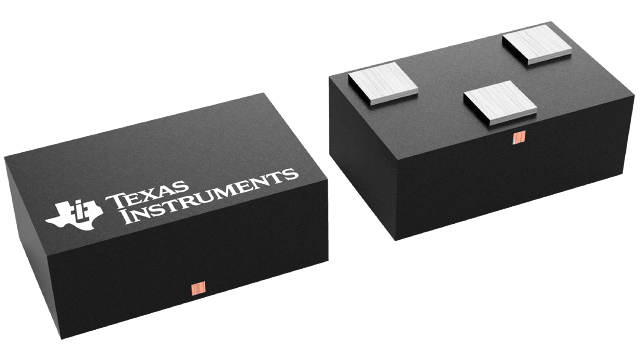

Texas Instruments ESD122DMXR | Texas Instruments

Texas Instruments

Datasheets

 Arrow Electronics
 Verical
 DigiKey

Lifecycle Status Indicator

   Production

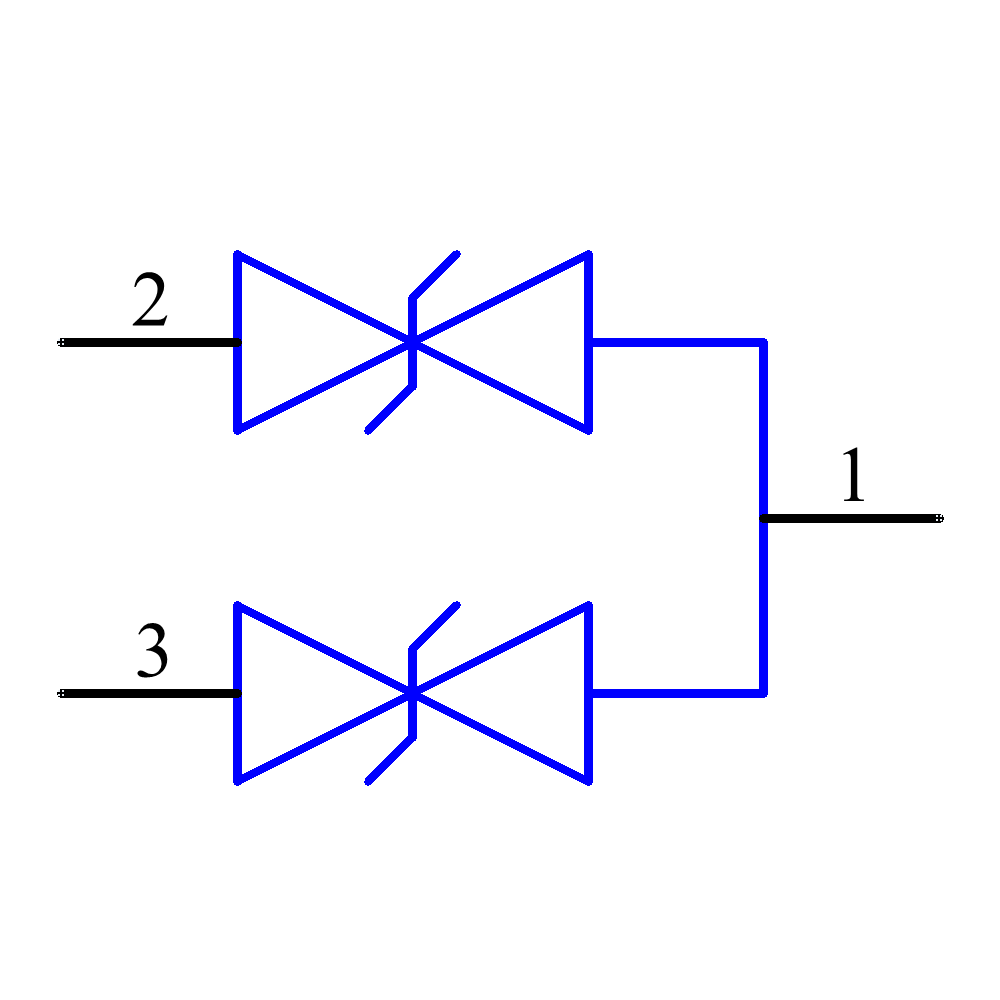

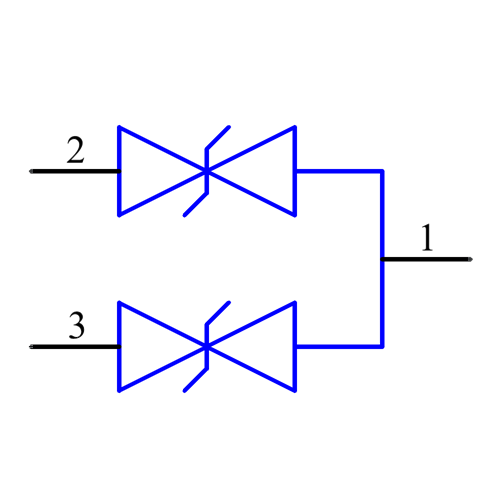

Symbol

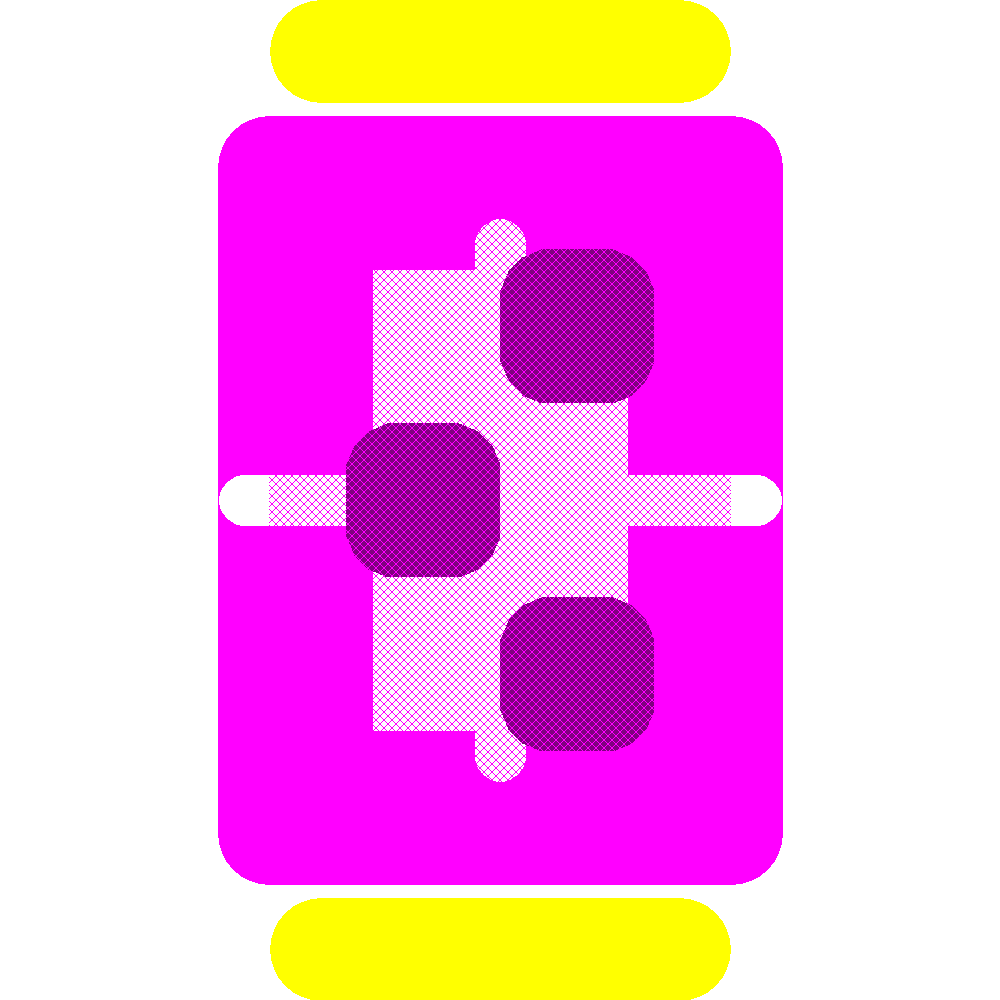

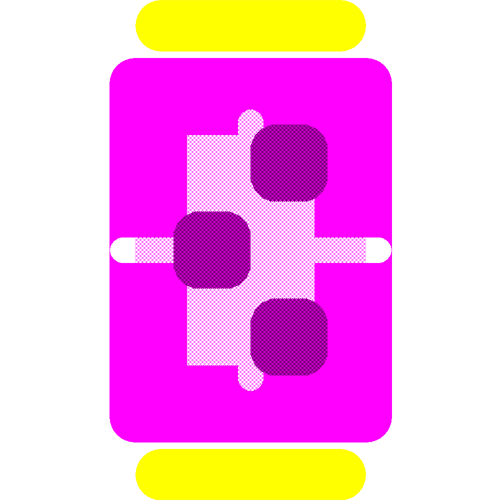

Footprint
